10 Engine – 3.0 V6Cylinder heads · page 2 of 6

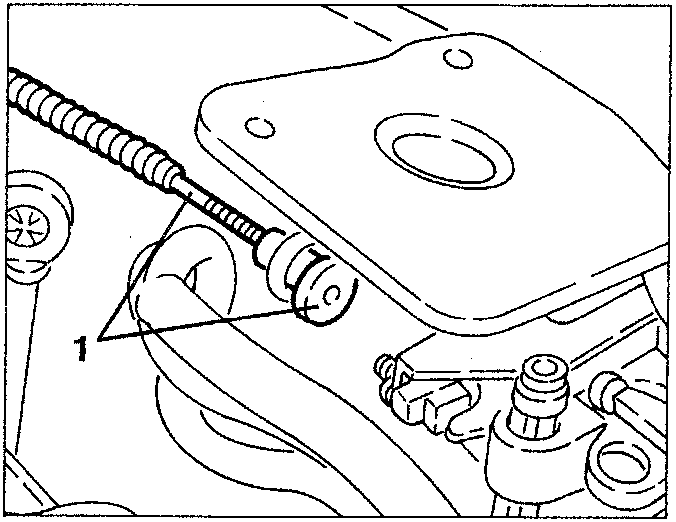

1. Disconnect the bonnet opening cable from the locks.

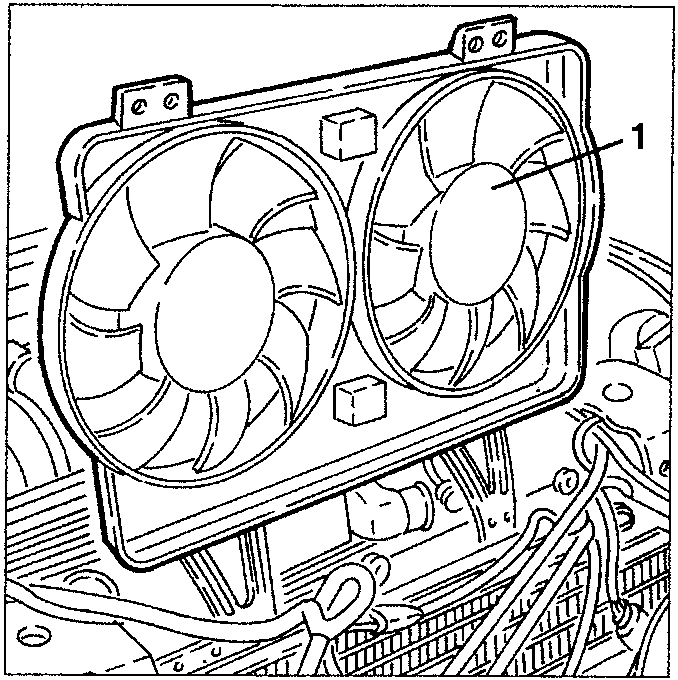

1. Slacken the fastening screws and remove the cooling fans.

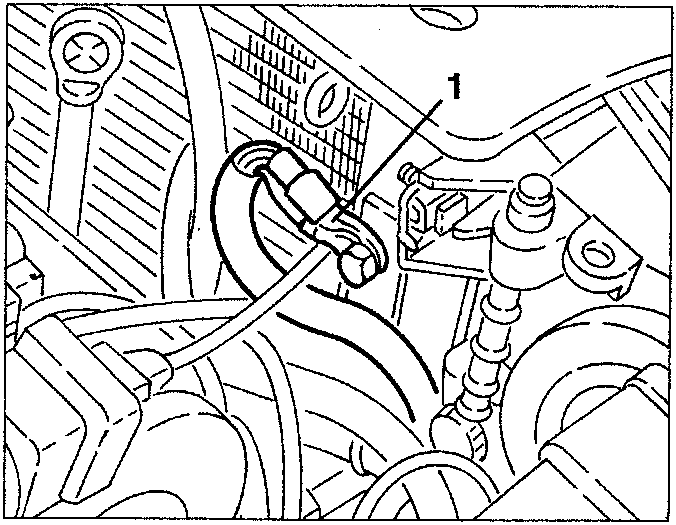

1. Disconnect the earth cables from the body.

• Working from under the car remove the power steering pump (see GROUP 41).

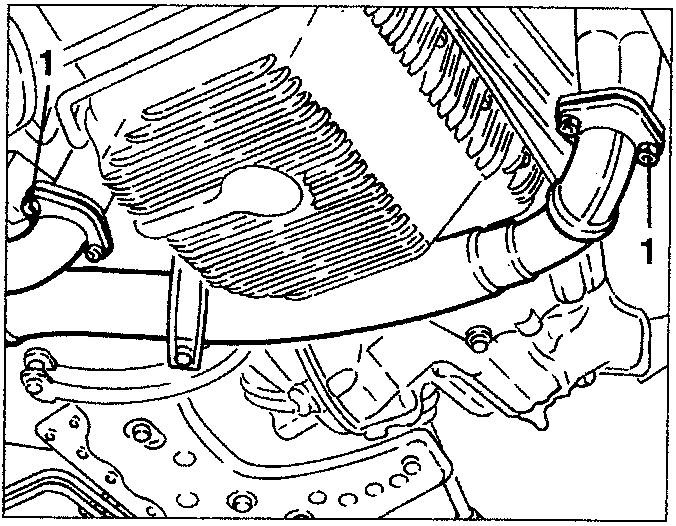

1. Disconnect the front section of the exhaust pipe from the corresponding manifolds.

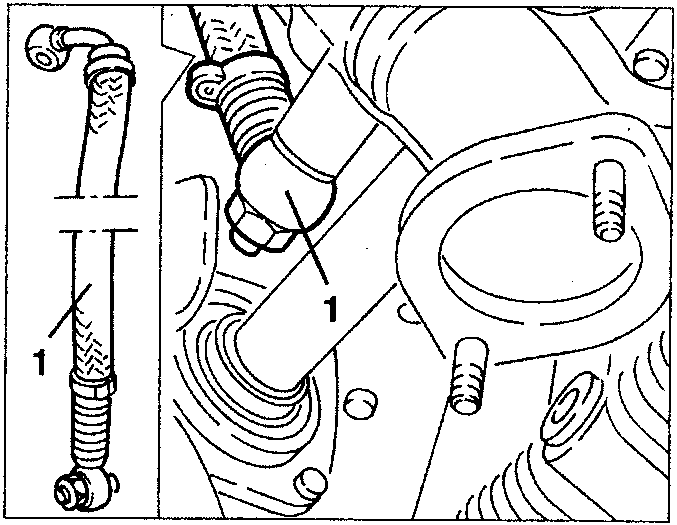

1. Disconnect the connections of the exhaust gas takeoff pipe for the E.G.R. valve, then remove it.

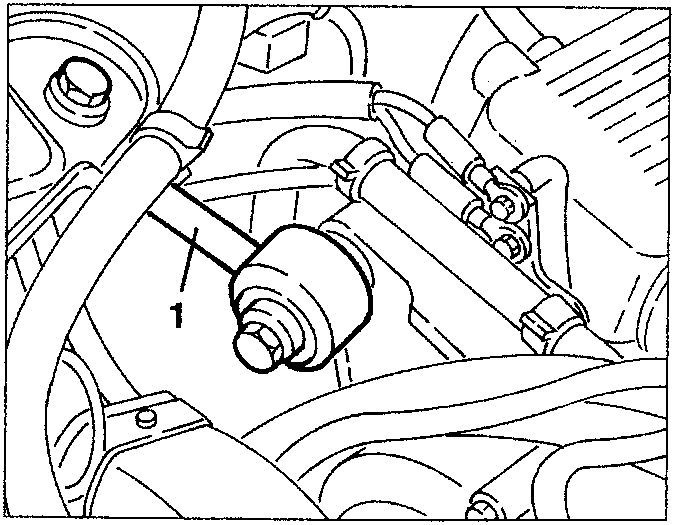

1. Remove the engine stay rod and corresponding support.
