10 Engine – T. Spark 16VAir intake box

AIR INTAKE BOX

REMOVAL/REFITTING

  • Set the car on a lift.
  • Disconnect the battery (-) terminal.

Proceed as in the first steps of the procedure "Throttle body - Removal/Refitting" up to disconnecting the accelerator cable.

  1. Disconnect the electrical connection from the E.G.R. modulation solenoid valve.
  2. Disconnect the E.G.R. valve connection pipe from the modulation solenoid valve.
  3. Disconnect the fuel pressure regulator vacuum takeoff pipe.

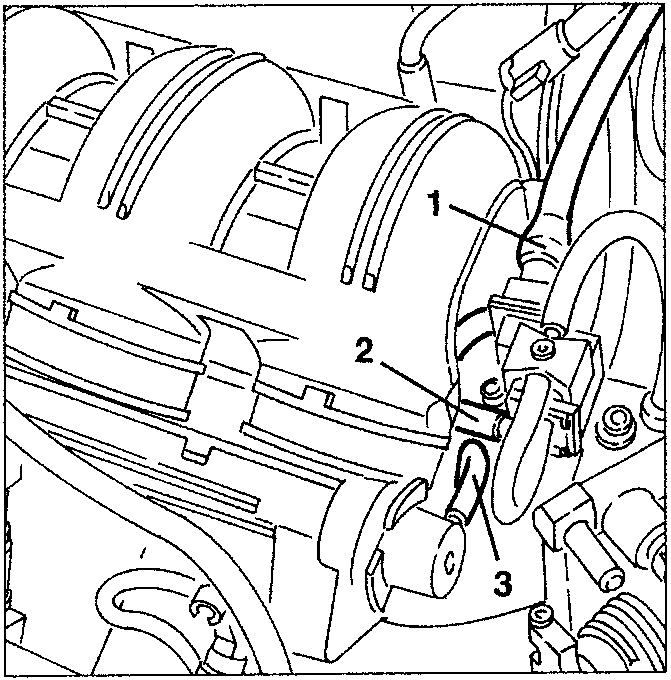

Engine diagram showing connections 1, 2, and 3
  1. 1 E.G.R. modulation solenoid valve electrical connection
  2. 2 E.G.R. valve connection pipe
  3. 3 Fuel pressure regulator vacuum takeoff pipe
  • Disconnect the vacuum takeoff pipe from the servo-brake.
  1. Raise the car and slacken the two screws fastening the support to the intake box.
  2. Slacken the two screws fastening the intake box to the cylinder head.

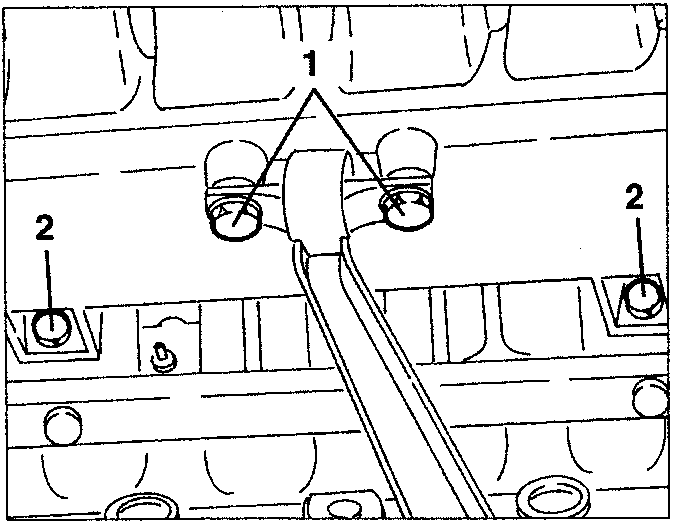

Engine diagram showing screws 1 and 2
  1. 1 Screw fastening support to intake box
  2. 2 Screw fastening intake box to cylinder head
  3. Disconnect the fuel vapour recirculation pipe from the intake box.

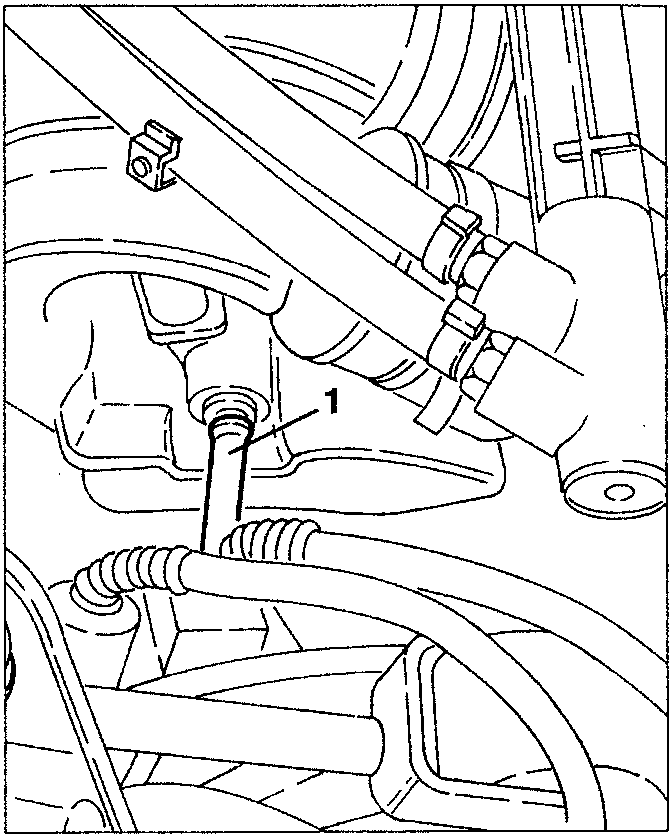

Engine diagram showing fuel vapour recirculation pipe connection 1
  1. Slacken the fastening clamps and remove the intake box pulling it upwards.

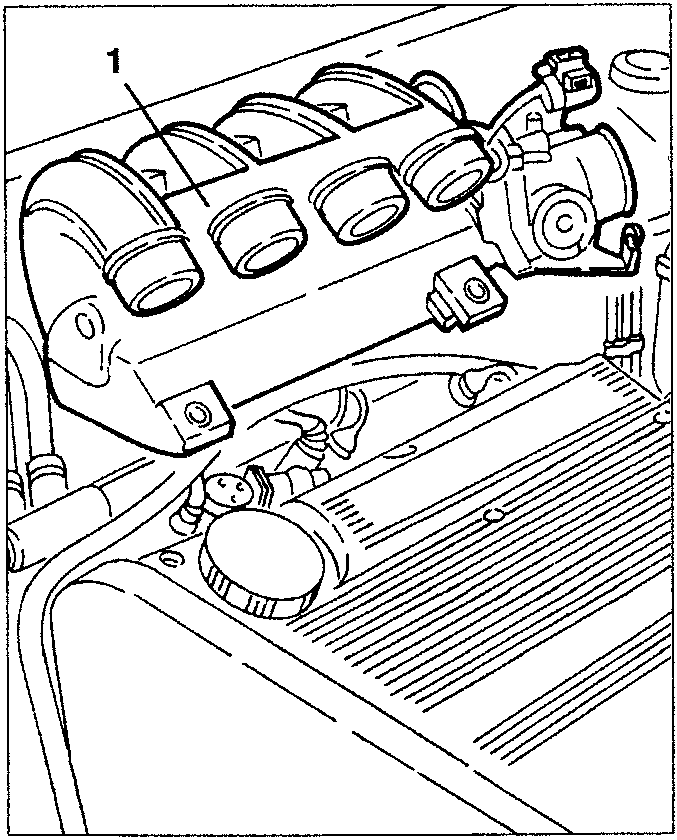

Engine diagram showing intake box 1
