AIR INTAKE RESOUNDERS

REMOVING/REFITTING

  • Set the car on a lift and raise it.
  • Remove the front bumper.
  1. Slacken the fastening and remove the air intake resounder upstream of the cleaner.

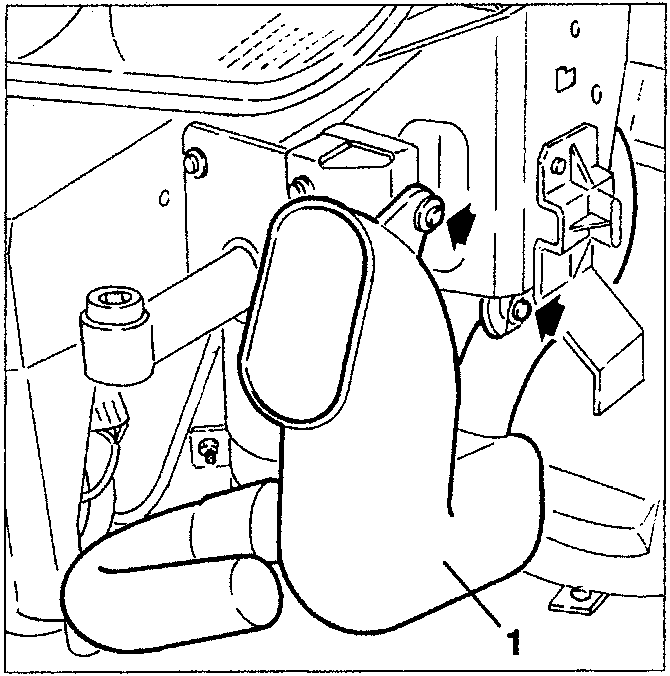

Air intake resounder upstream of the cleaner with fastening bolts
  1. Lower the car and disconnect the electrical connection of the intake air temperature sensor.
  2. Disconnect the oil vapour recirculation pipe from the corrugated sleeve.
  3. Slacken the fastening clamps and remove the air intake resounder downstream of the cleaner complete with corrugated sleeve.

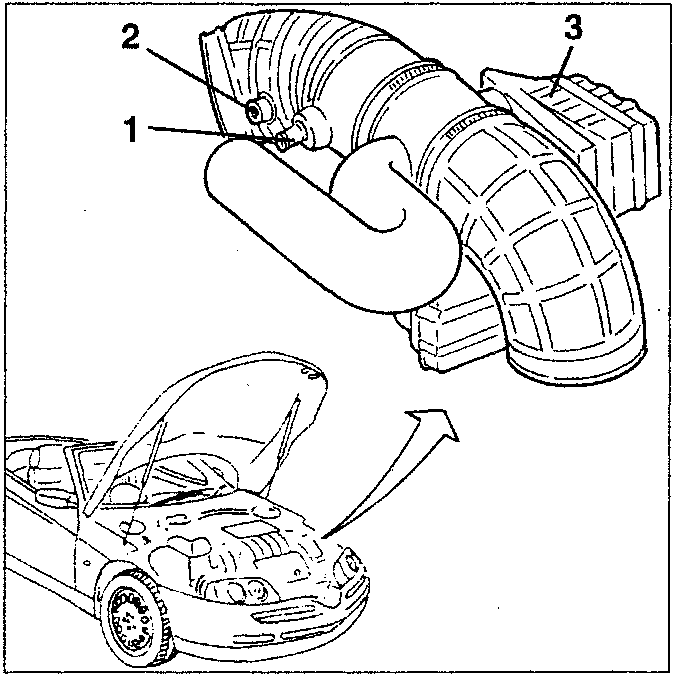

Air intake resounder downstream of the cleaner with corrugated sleeve
