10 Engine – T. Spark 16VTiming sensor · page 2 of 2

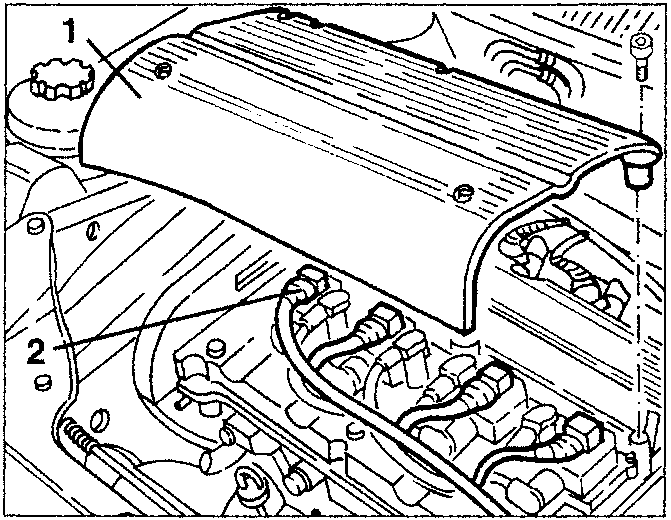

  1. Slacken the fastening screws and remove the ignition coils cover.
ignition coils cover removal

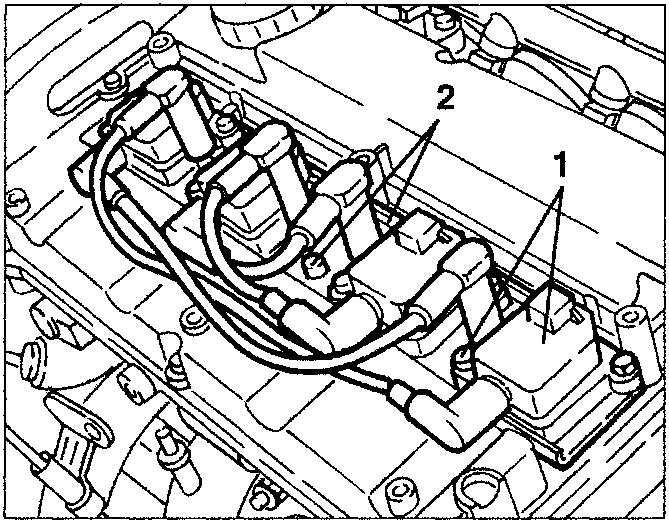

  1. Disconnect the electrical connections from the igni- tion coils.
  2. Slacken the fastening screws and remove the ignition coils.
ignition coils removal

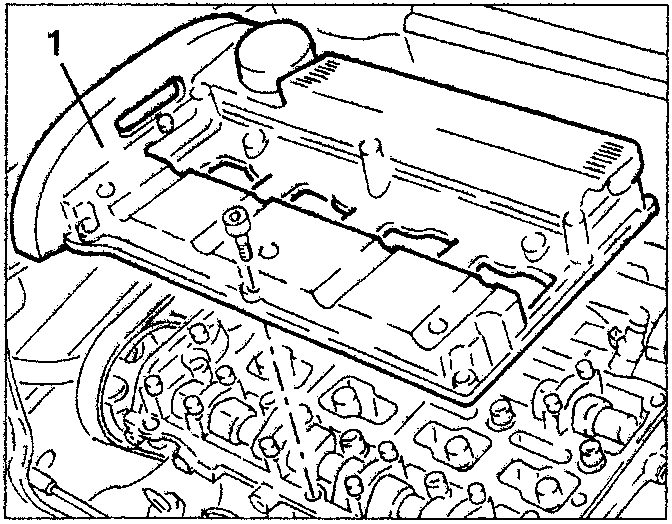

  1. Slacken the fastening screws and remove the ignition coils support bracket.
  2. Slacken the fastening screws and remove the cylinder head cover complete with gasket.
cylinder head cover removal

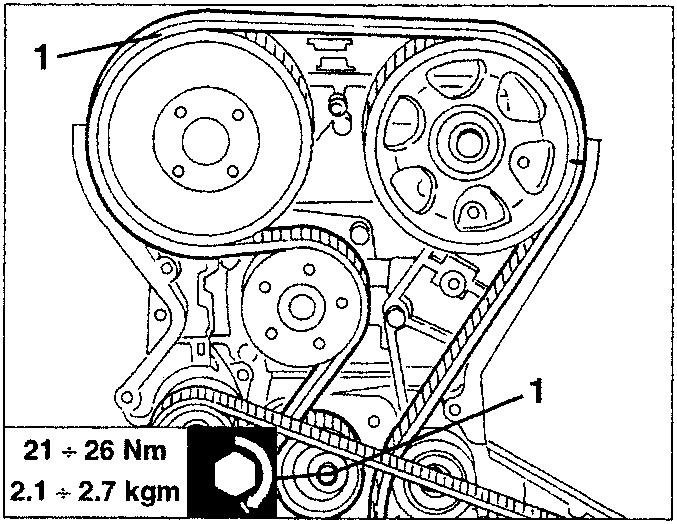

  1. Working on the timing gear belt tensioner, loosen the tension on the belt, then take it off the timing gear drive pulleys.
timing gear belt tensioner removal

21 ÷ 26 Nm
2.1 ÷ 2.7 kgm

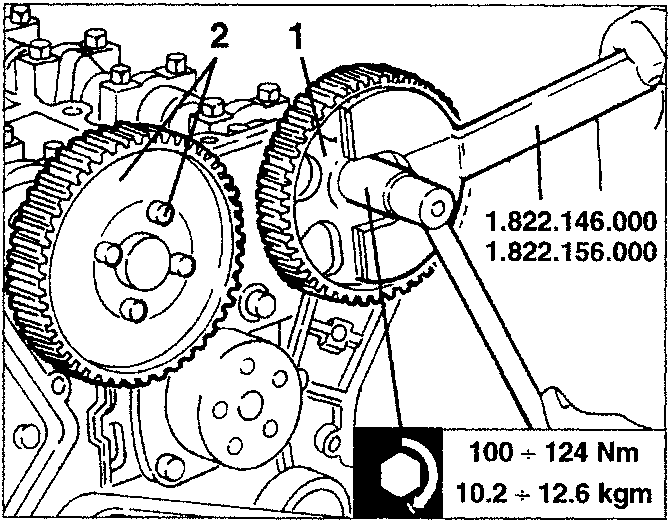

  1. Using tools no. 1.822.146.000 and no. 1.822.156.000 slacken the screw fastening the timing gear exhaust side drive pulley and remove it.
timing gear exhaust side drive pulley removal

100 ÷ 124 Nm
10.2 ÷ 12.6 kgm

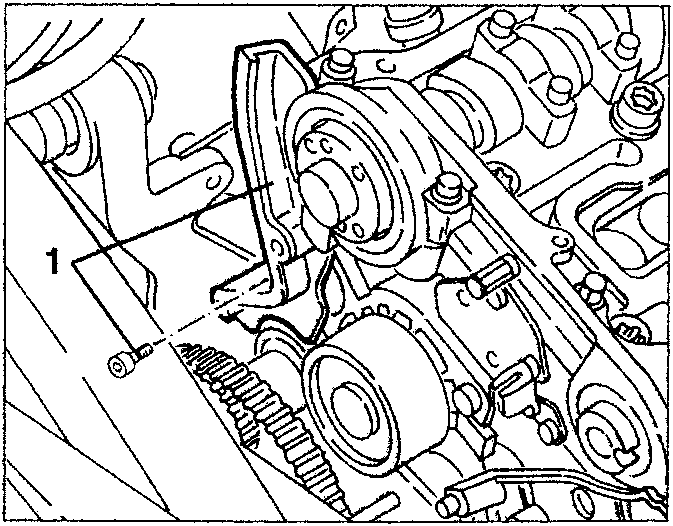

  1. Slacken the fastening screws and remove the intake side cover.
intake side cover removal
