Alfa Romeo GTV and Spider (916) Factory Service Manual (1995-2000)03 · 10 Engine – T. Spark 16V
03 · Engine

Description (page 2 of 2)

Make
Alfa Romeo
Model
GTV / Spider GTV and Spider (916) Factory Service Manual
Year
1995–2000
Section
Engine cooling system
10 Engine – T. Spark 16VDescription · page 2 of 2

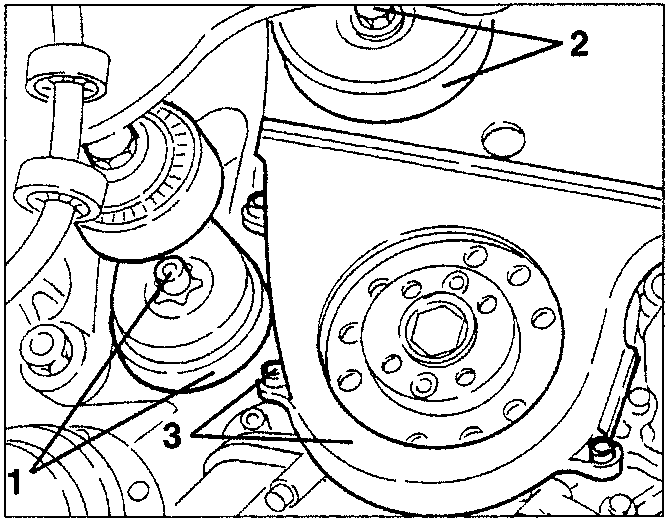

  1. Slacken the fastening screw and remove the belt tensioner.
  2. Slacken the fastening screw and remove the auxiliary components drive belt guide pulley.
  3. Slacken the fastening screws and remove the lower cover of the timing gear and counter-rotating shaft drive belts.
Engine diagram showing belt tensioner, pulley, and cover with numbered parts
  • Slacken the lower screws of the upper cover of the timing gear and counter-rotating shaft drive belts.

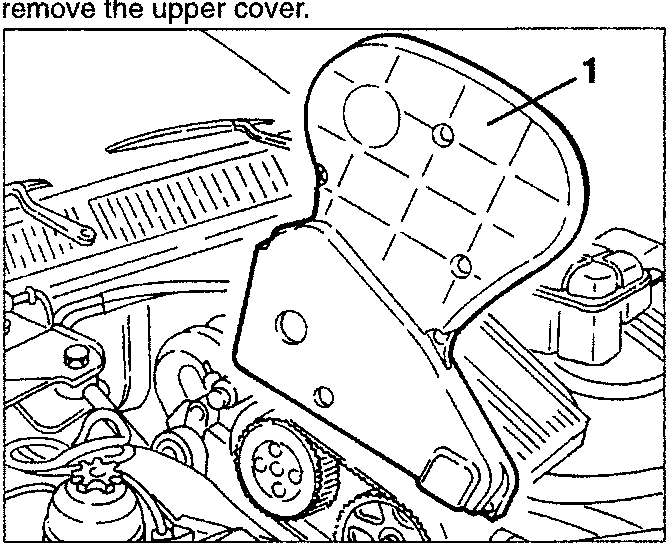

  1. Lower the car, slacken the fastening screws and remove the upper cover.
Engine diagram showing upper cover with numbered part

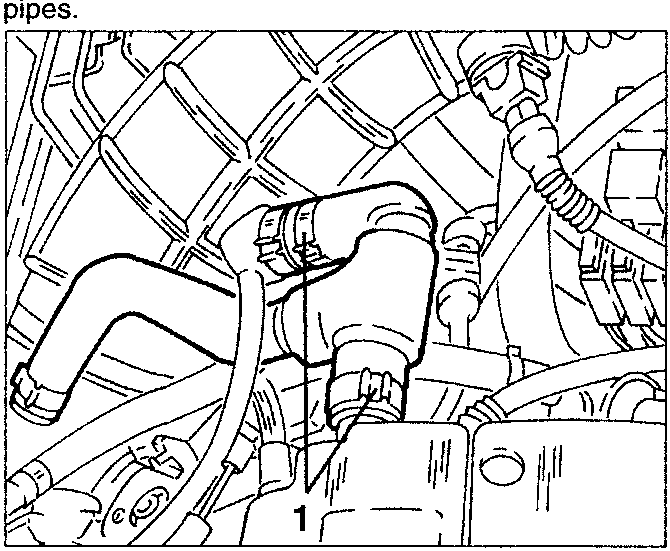

  1. Disconnect and remove the oil vapour recovery pipes.
Engine diagram showing oil vapour recovery pipes with numbered part

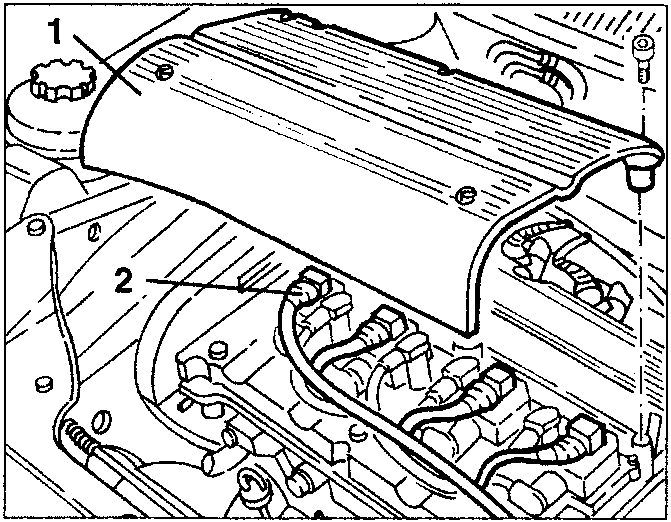

  1. Slacken the fastening screws and remove the ignition coils cover.
  2. Disconnect the electrical connections from the ignition coils.
Engine diagram showing ignition coils cover and electrical connections with numbered parts

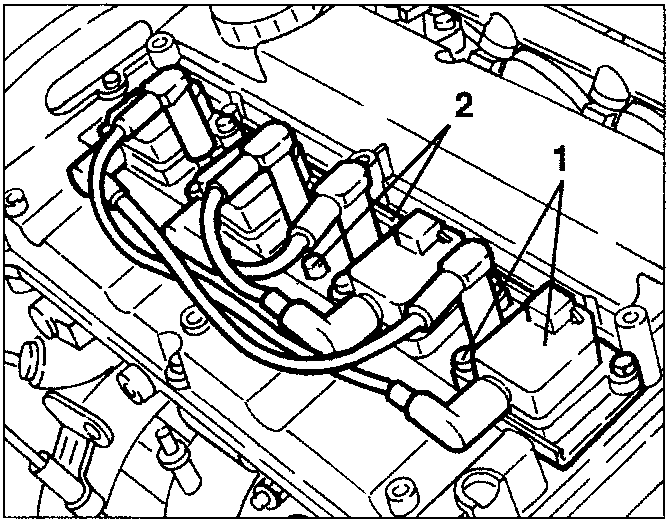

  1. Slacken the fastening screws and remove the ignition coils.
  2. Slacken the fastening screws and remove the ignition coils support bracket.
Engine diagram showing ignition coils and support bracket with numbered parts

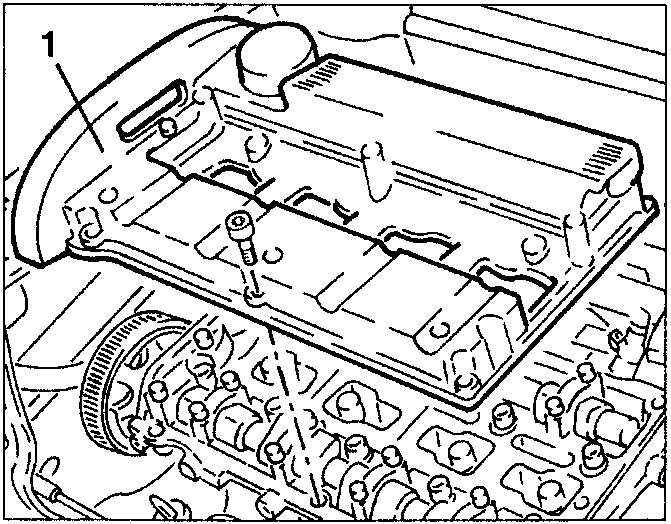

  1. Slacken the fastening screws and remove the cylinder head cover complete with gasket.
Engine diagram showing cylinder head cover with numbered part
