E.G.R. VALVE

REMOVAL/REFITTING

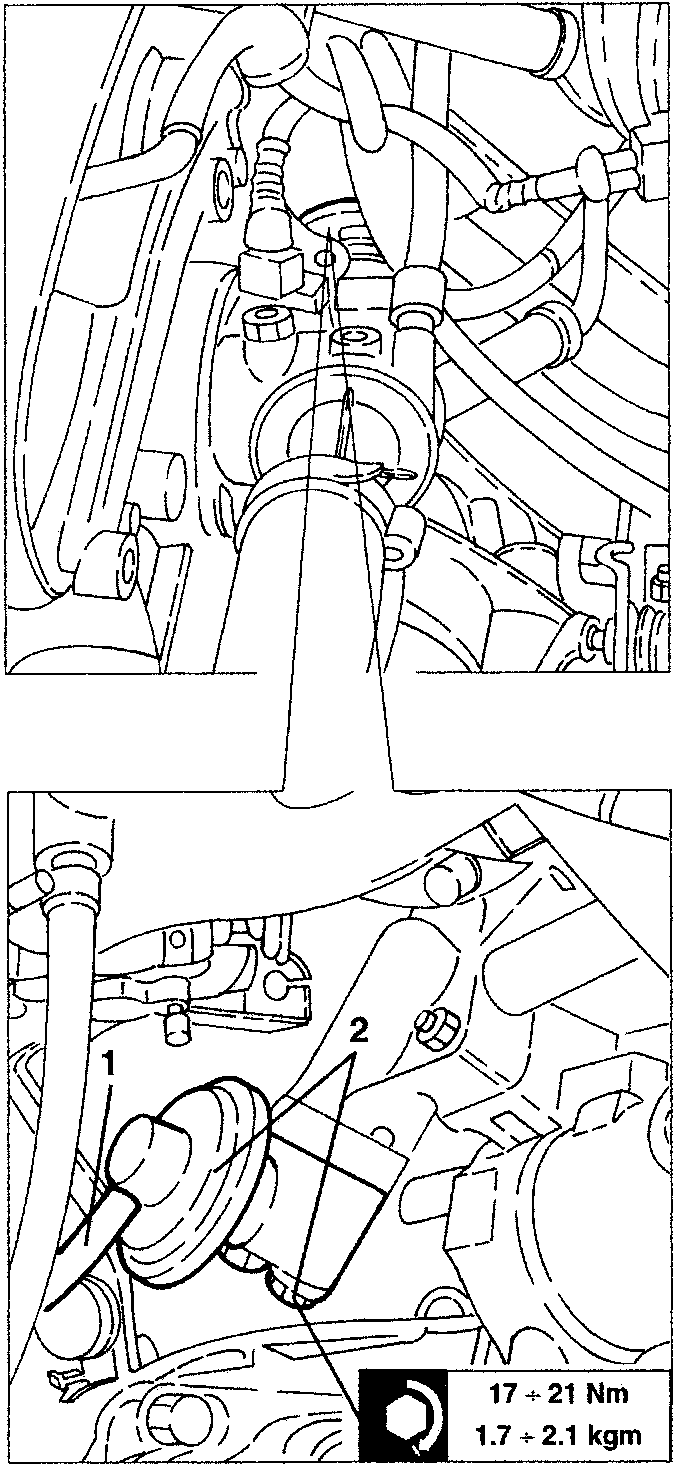

  1. Working from the engine compartment, disconnect the connection pipe with the modulation solenoid valve from the E.G.R. valve.
  2. Slacken the two fastening screws and remove the E.G.R. valve from the intake box.
E.G.R. valve removal view showing connection pipe and intake box

17 ÷ 21 Nm
1.7 ÷ 2.1 kgm

E.G.R. MODULATING SOLENOID VALVE

REMOVAL/REFITTING

  • Disconnect the battery (-) terminal.

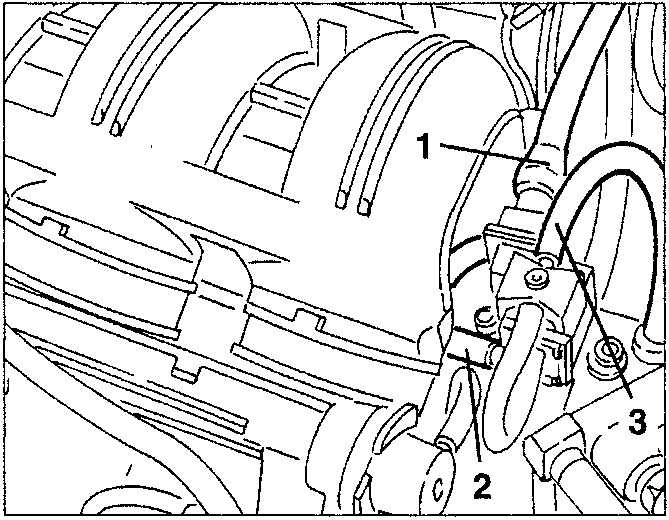

  1. Disconnect the electrical connection from the E.G.R. modulating solenoid valve.
  2. Disconnect the the connection pipe with the E.G.R. valve from the modulation solenoid valve.
  3. Disconnect the vacuum takeoff pipe from the E.G.R. modulation solenoid valve.
E.G.R. modulating solenoid valve with labeled parts 1, 2, 3

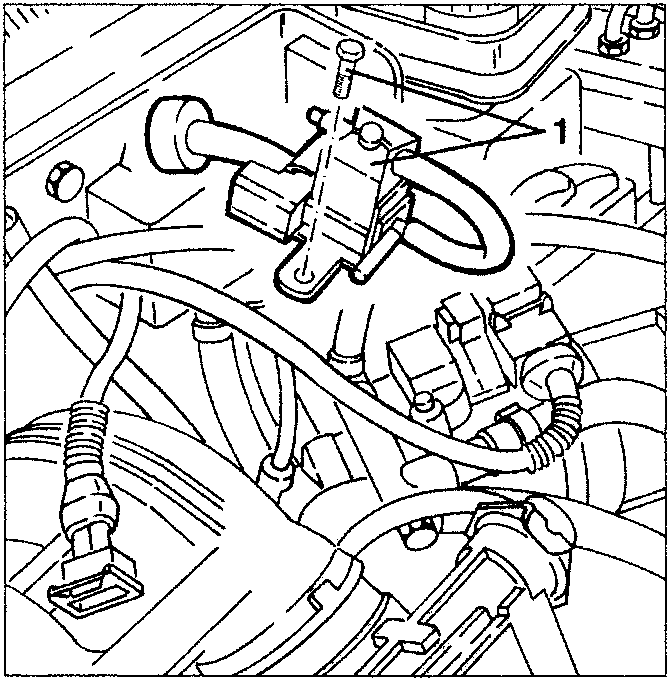

  1. Slacken the two fastening screws and remove the E.G.R. modulation solenoid valve.
E.G.R. modulating solenoid valve removed from engine
