Fuel tank

FUEL TANK

The fuel tank is made of steel and has a capacity of 70 litres including a reserve of approximately 9 litres. The fuel filler is fitted on the main casing in a specific compartment so that is can be removed.

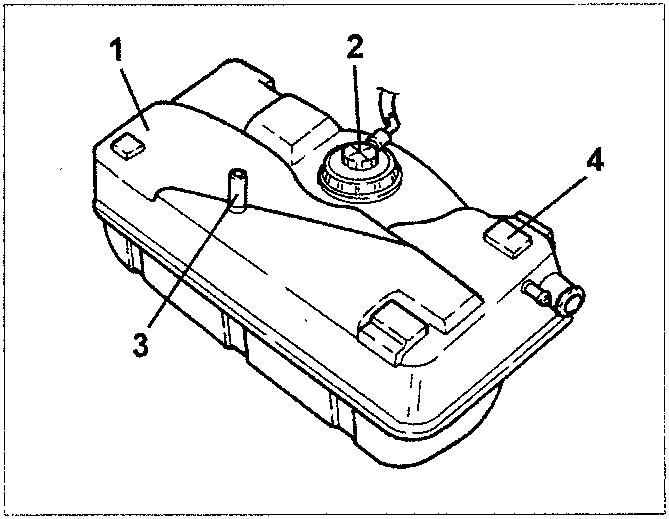

1. Tank
2. Fuel pump and gauge
3. Vapour recovery pipe
4. Vibration damper pads

The filler cap presents a system which ensures it can only be closed at the prescribed torque. Excessive torque (exceeding prescriptions) will cause the notches to turn without locking.

The tank is located:

• Spider version: under the hood compartment and is fastened by means of two metal belts to the underbody. It is protected by a steel partition;
• Gtv version: under the rear seat and is fastened by means of two metal belts to the underbody. It is protected by a steel partition.

The fuel filler pipe doubles as a breather. The fuel pump and gauge is housed above the tank. A specific pipe allows the fuel vapours to reach the separator from the tank.

REMOVAL/REFITTING

Spider version

• Position the vehicle on a shop jack.
• Make sure the ignition key is at "STOP" and disconnect the (-) battery terminal.
• Empty the tank by sucking fuel from the filler with a suitable tool.
• Lift the hood cover and open the upper hood bonnet.

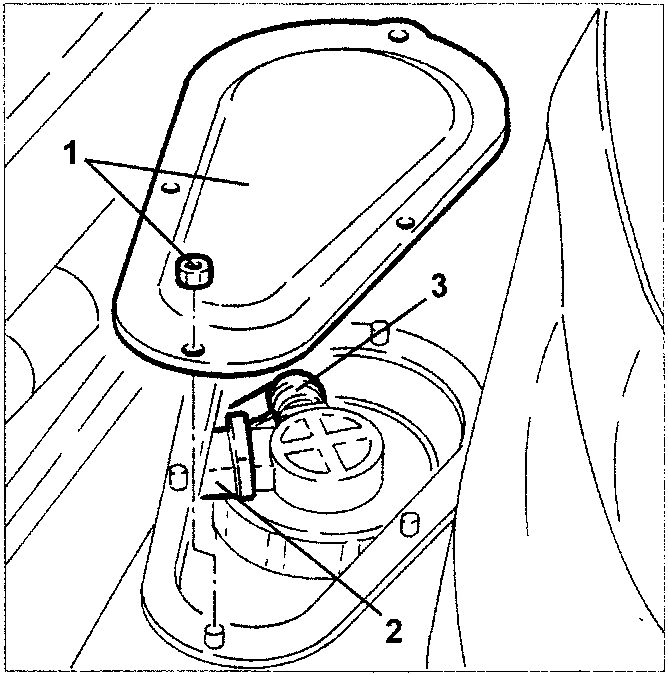

1. Move the hood compartment panel. Loosen the fastening nuts and remove the fuel pump and gauge cover.
2. Disconnect the fuel pump and gauge electrical connection.
3. Disconnect the fuel pump and gauge delivery pipe.
