Alfa Romeo GTV and Spider (916) Factory Service Manual (1995-2000)03 · 10 Engine – T. Spark 16V
03 · Engine

System description

Make
Alfa Romeo
Model
GTV / Spider GTV and Spider (916) Factory Service Manual
Year
1995–2000
Section
Fuel supply (T. Spark 16V) › System description
10 Engine – T. Spark 16VSystem description

SYSTEM DESCRIPTION

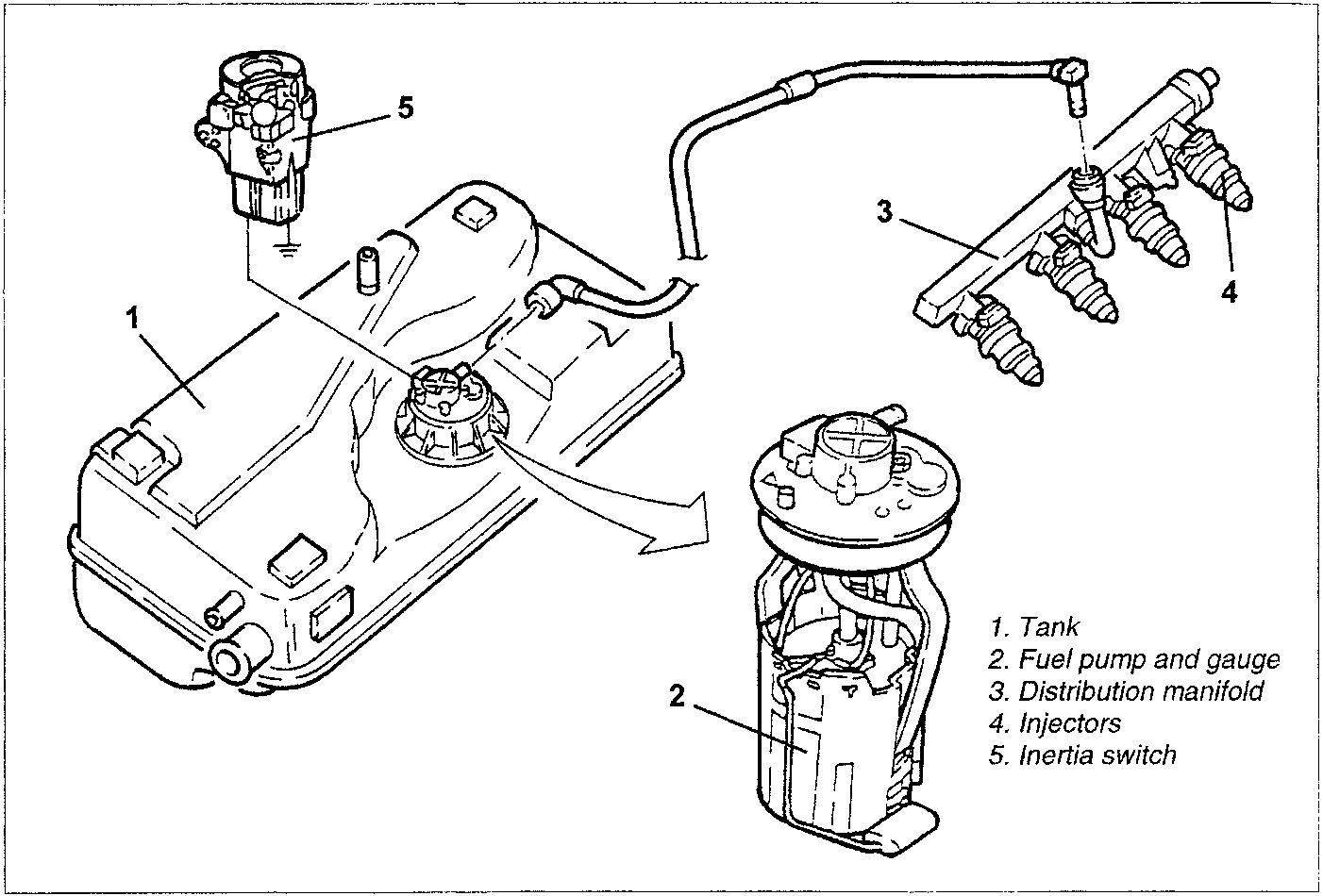

Fuel supply system diagram showing tank, fuel pump and gauge, distribution manifold, injectors, and inertia switch.
  1. Tank
  2. Fuel pump and gauge
  3. Distribution manifold
  4. Injectors
  5. Inertia switch

The fuel feed system is returnless, i.e. a single pipe connects the fuel pump and the engine. Advantages are:

  • reduced possibility of the car catching fire after an accident
  • reduced fuel vapour emission in the atmosphere.

The filler cap is fitted on the steel fuel tank main casing.

The electrical fuel pump is contained in a frame which also houses the following components:

  • fuel pressure regulator
  • fuel gauge
  • fuel filter.

The system is equipped with an inertia switch which cuts fuel pump power in the event of an impact.
