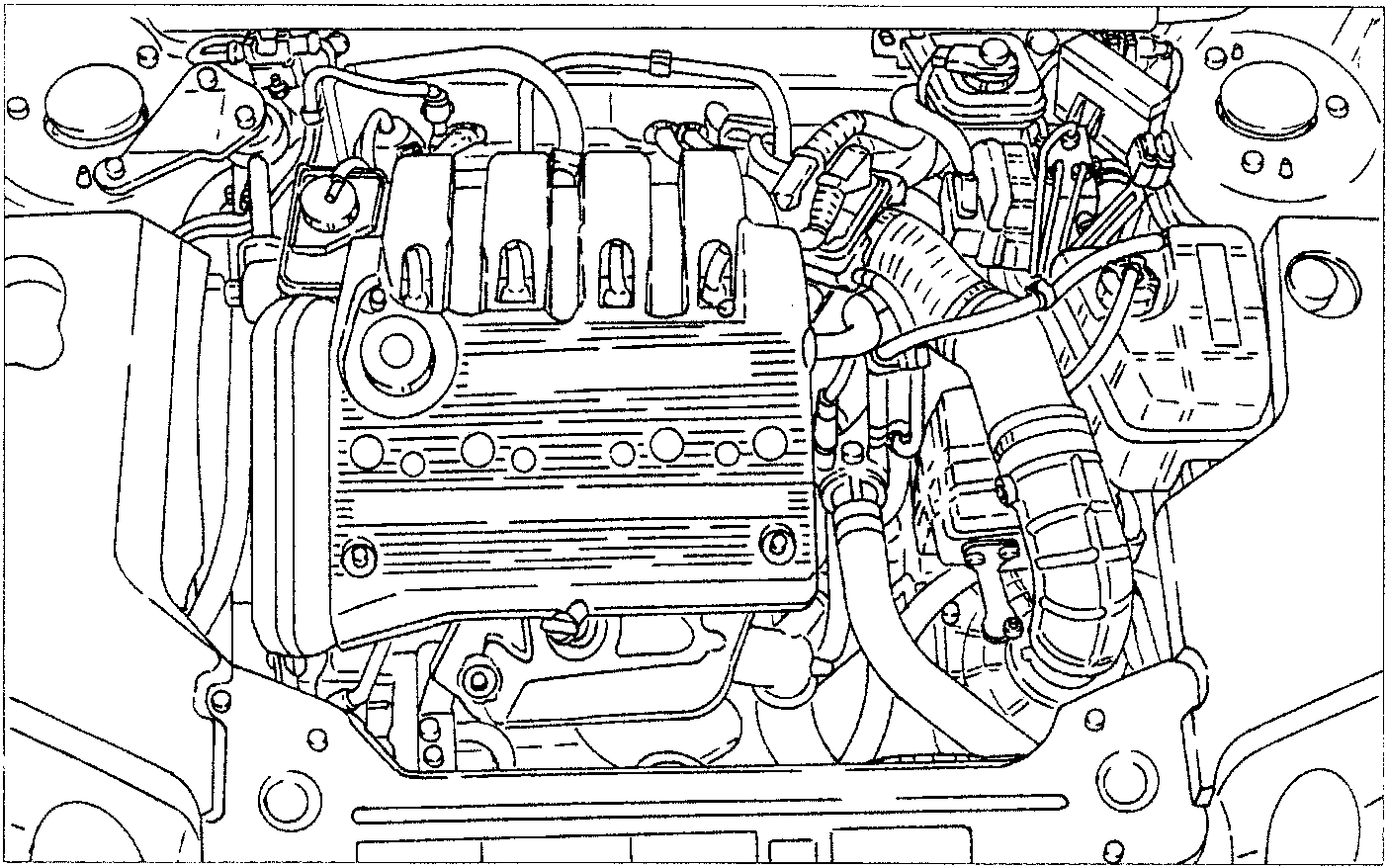

The following information and illustrations allow quick engine removal and refitting.

Bench disassembly instructions for single components are contained in the "ENGINE OVERHAUL" volume. The following procedures may be used only in part, according to requirements. For additional information and details, refer to the specific component and assembly chapters.

REMOVAL

• Position the vehicle on a shop jack.
• Make sure the ignition key is at "STOP" and disconnect the (-) battery terminal.
• Drain the conditioning system (see ASSEMBLY 50).
• Remove the front wheels and the respective mudguard.
• Lift the vehicle, loosen the fasteners and remove the guard under the engine.

1. Drain the engine coolant by disconnecting the radiator fluid output sleeve.

NOTE: Collect the coolant in a suitable container.

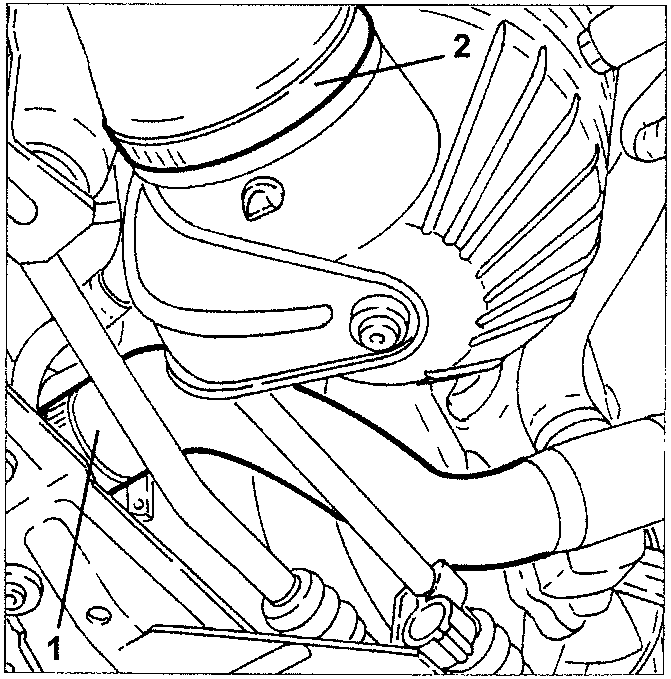

2. Loosen the clip fastening the front resonators to the air cleaner.
