Refitting

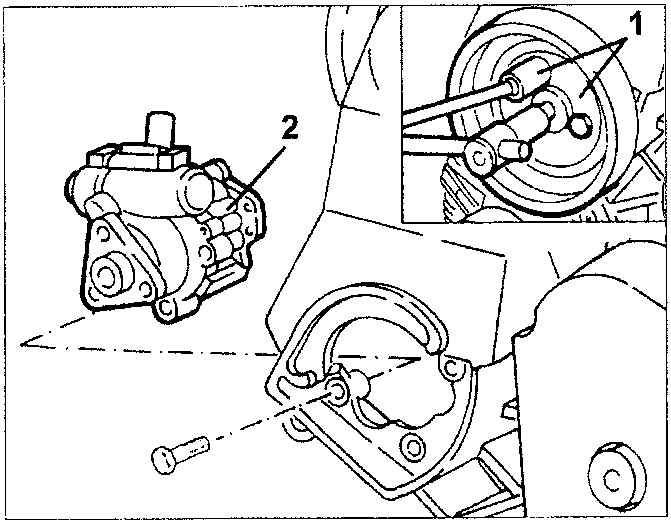

1. Use a 3/8" Allen wrench to contrast torque and loosen the three power steering pump pulley fastening screws. Remove the pulley.
2. Loosen the fastening screws and remove the power steering pump.

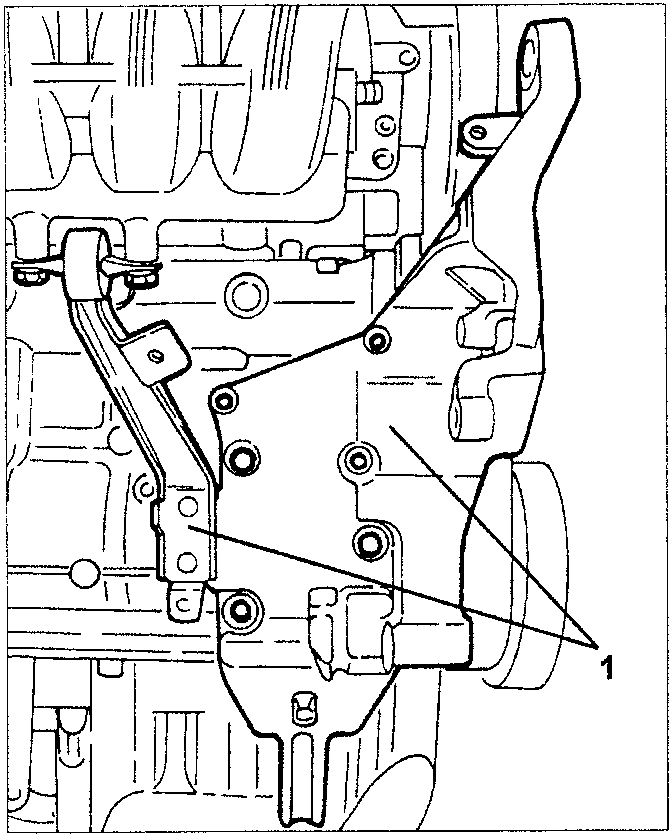

1. Loosen the fastening screws and remove the power steering pump and alternator bracket with intake manifold bracket.

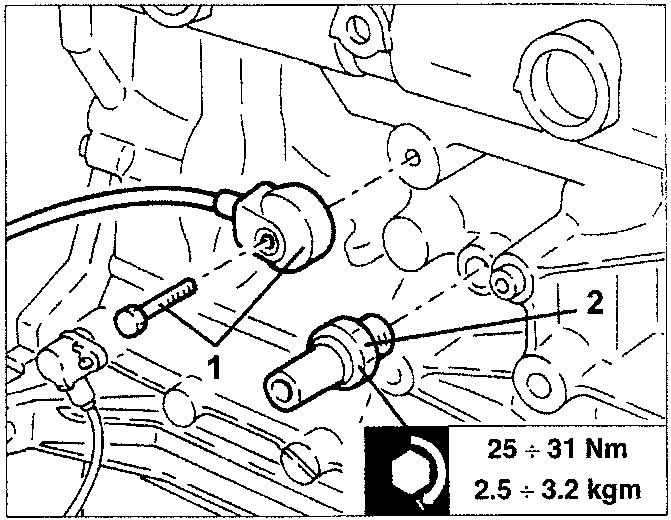

1. Loosen the fastening screw and remove the knock sensor from the crankcase.
2. Loosen and remove the minimum engine oil pressure sensor from the crankcase.

25 ÷ 31 Nm
2.5 ÷ 3.2 kgm

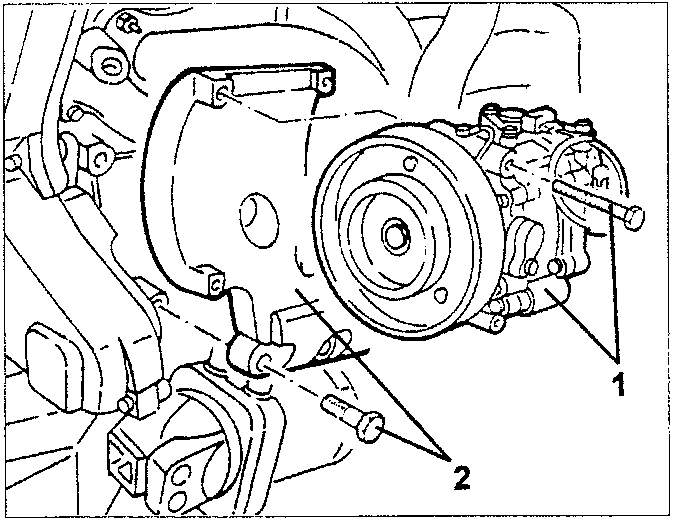

1. Loosen the four fastening screws and remove the conditioner compressor.
2. Loosen the five fastening screws and remove the conditioner compressor bracket.

REFITTING

Reverse the removal sequence and observe the following warnings:

• Prepare the engine compartment to insert the engine assembly by positioning all the electrical wires, pipes, etc. so that they do not interfere with the refitting operations.

IMPORTANT: Make sure the engine assembly mounts are correctly fastened.

• After refitting, check correct belt tension and top up the various systems as required (see ASSEMBLY 00).

• Perform all the checks and interventions required (see Assembly 00).
