18 ClutchClutch pump

CLUTCH PUMP

REMOVAL/REFITTING

  • Empty the brake-clutch fluid reservoir, using a suitable syringe.
  1. Disconnect the reservoir connection pipe from the clutch pump.

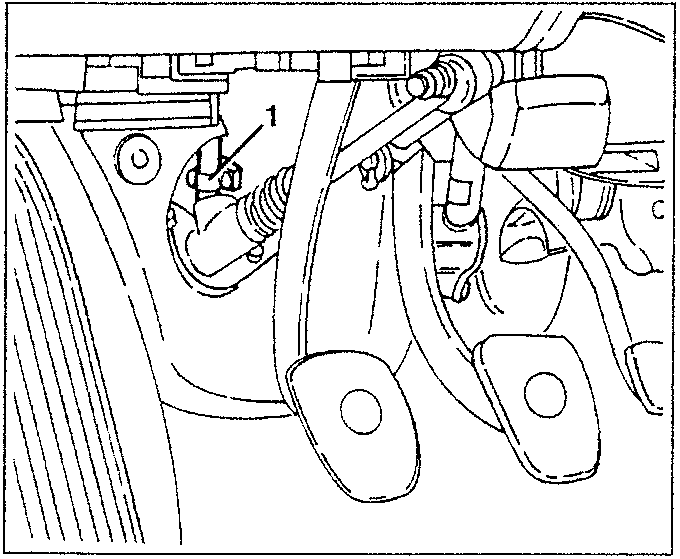

Clutch pump connected to pedal with safety stopper
  1. Remove the safety stopper and disconnect the clutch pump from the pedal.
  2. Slacken the two clutch pump fastening nuts.

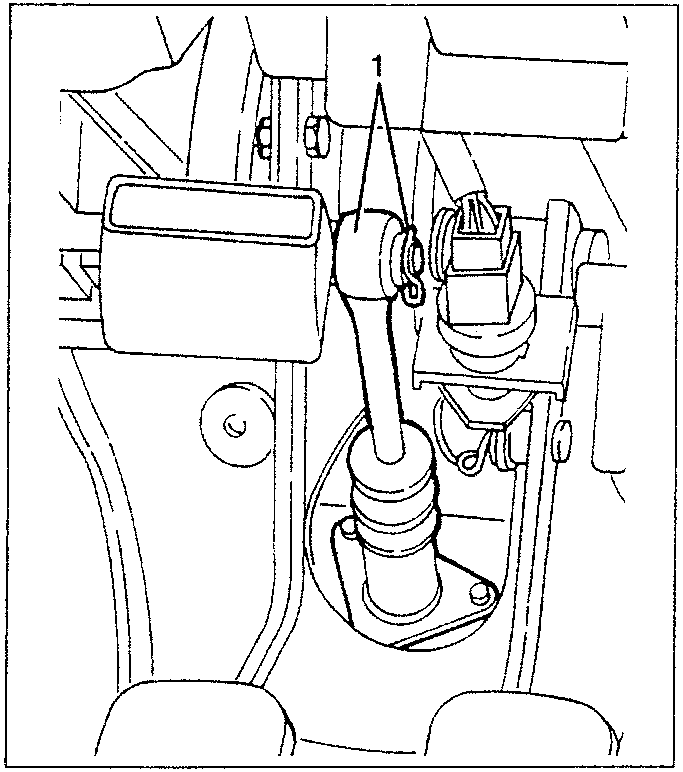

Clutch pump with safety stopper and fastening nuts
  1. Move the clutch pump backwards just enough to disconnect the fitting of the connection pipe to the cylinder, then remove the pump.
Clutch pump being moved backwards to disconnect from cylinder

DIS-ASSEMBLY/REASSEMBLY

  1. Remove the protective boot.
  2. Remove the piston retainer ring.

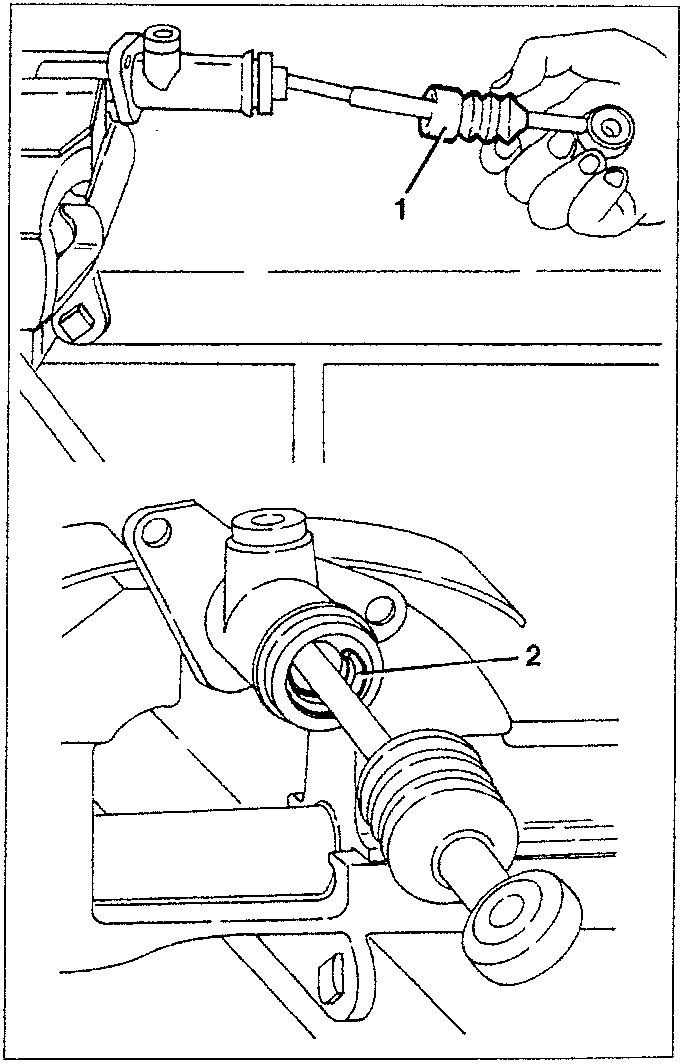

Clutch pump disassembly showing protective boot and piston retainer ring
