Clutch control pedal

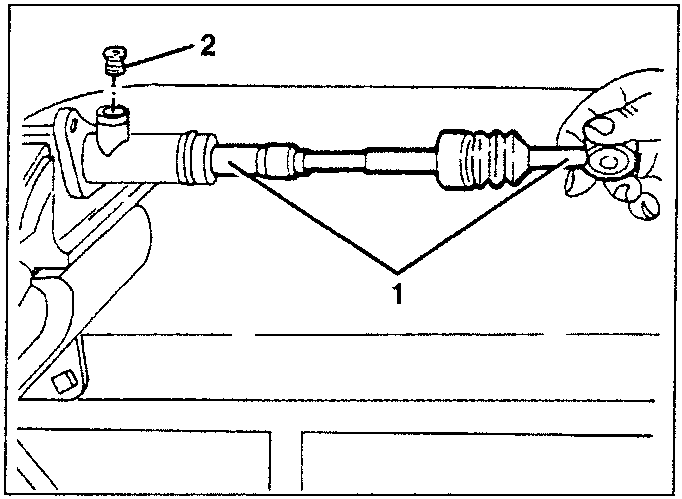

1. Withdraw the piston and operating lever.
2. Remove the seal.

• Check that on the piston and inside the cylinder there are no marks, scores, scrapes or rust, otherwise change the pump assembly.

CLUTCH CONTROL PEDAL

REMOVAL/REFITTING

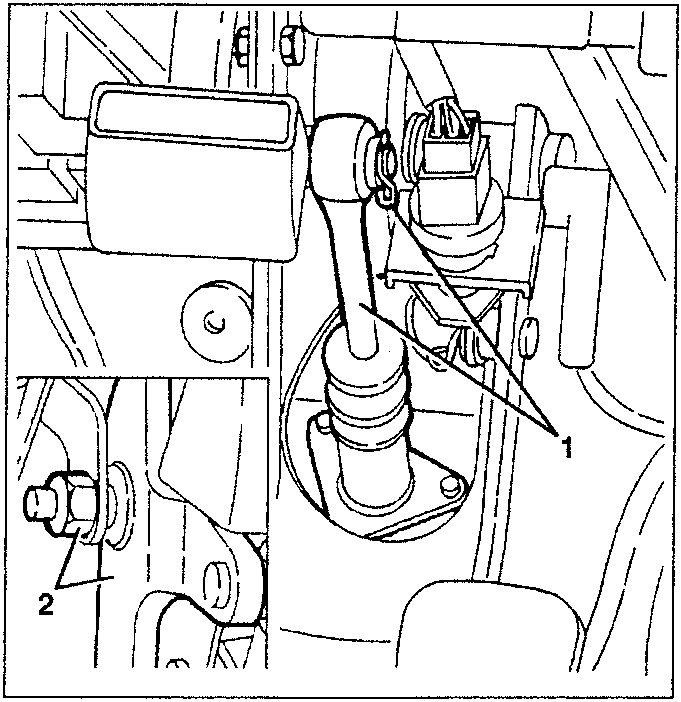

1. Remove the safety stopper and disconnect the clutch pump from the pedal.
2. Slacken the fastening bolt and remove the clutch pedal.

CLUTCH CONTROL CYLINDER

REMOVAL / REFITTING (6-CYLINDER ENGINE)

• Disconnect the battery.
• Working from the engine compartment, remove the air cleaner cover complete with sleeve di aspirazione (see GROUP 10).
• Empty the brake-clutch fluid reservoir, using a suitable syringe.

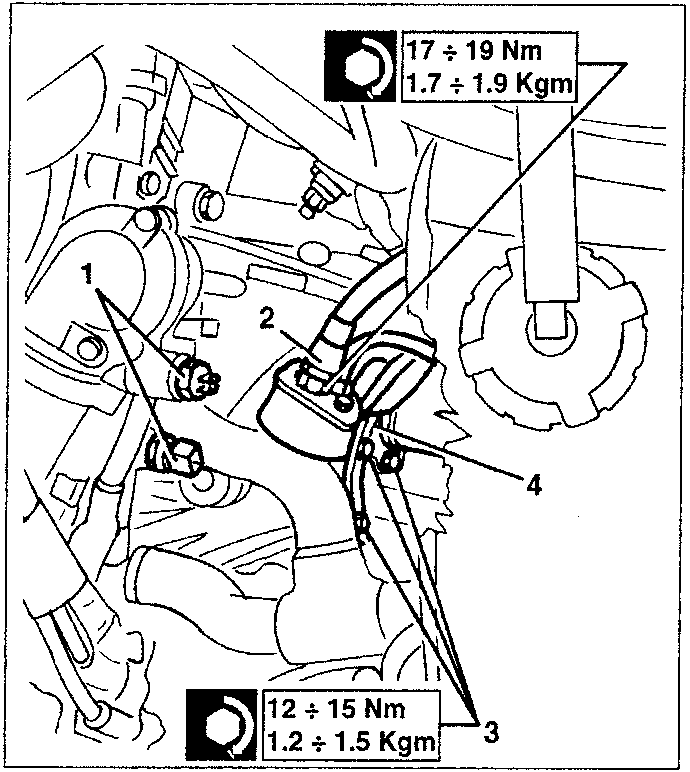

1. Disconnect the electrical connections of the engine temperature sensor.
2. Disconnect the hydraulic damper hose.
3. Slacken the three bracket fastening screws.
4. Retrieve clutch cylinder support bracket and damper.

17 ÷ 19 Nm
1.7 ÷ 1.9 Kgm

12 ÷ 15 Nm
1.2 ÷ 1.5 Kgm

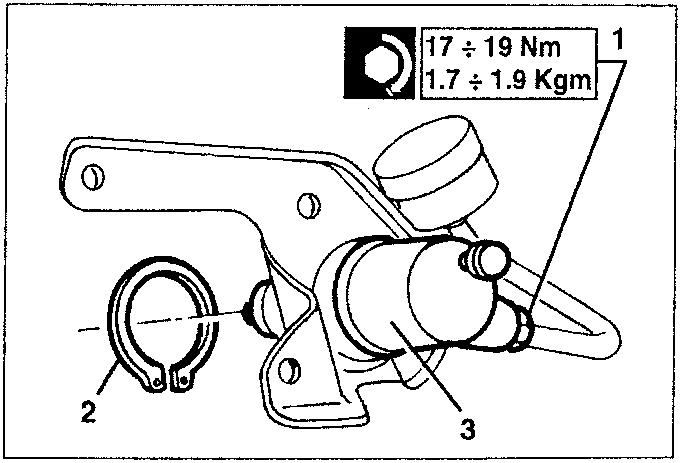

• Slacken the stiff pipe fitting from the clutch cylinder.
• Remove the seeger ring.
• Withdraw the clutch cylinder.

17 ÷ 19 Nm
1.7 ÷ 1.9 Kgm
