Alfa Romeo GTV and Spider (916) Factory Service Manual (1995-2000)06 · 21 Gearbox
06 · Transmission

unit

Make
Alfa Romeo
Model
GTV / Spider GTV and Spider (916) Factory Service Manual
Year
1995–2000
Section
unit › unit
21 Gearboxunit

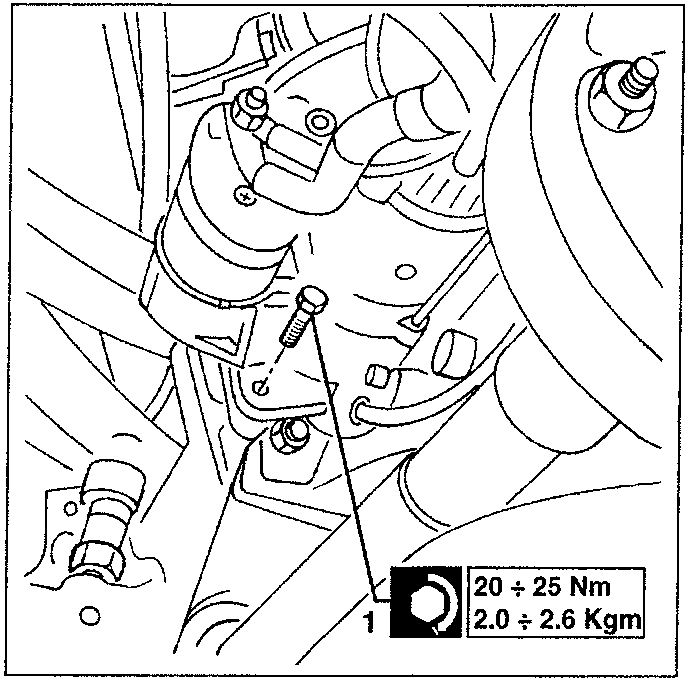

  1. Slacken the three screws fastening the starter motor to the gearbox.
Diagram showing three screws fastened to gearbox with torque specification 20 ÷ 25 Nm (2.0 ÷ 2.6 Kgm)

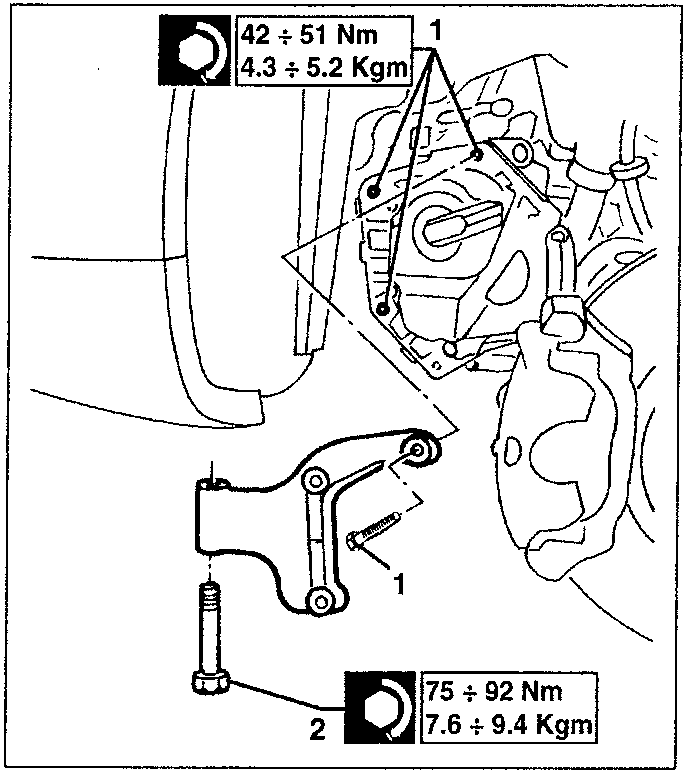

  1. Slacken the three screws fastening the rear gearbox support to the gearbox itself.
  2. Slacken the bolt fastening the support to the body and remove it.
Diagram showing gearbox support with two bolts, one with torque 42 ÷ 51 Nm (4.3 ÷ 5.2 Kgm) and another with torque 75 ÷ 92 Nm (7.6 ÷ 9.4 Kgm)

75 ÷ 92 Nm
7.6 ÷ 9.4 kgm

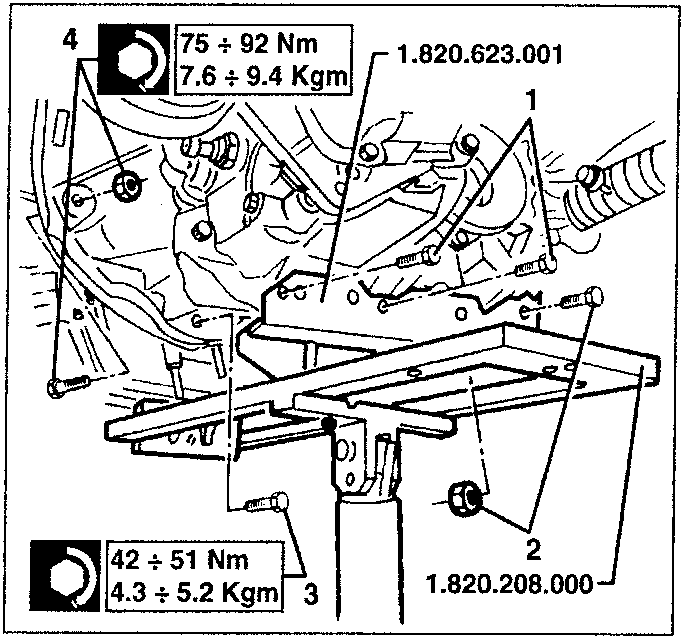

  1. Slacken the two lower screws fastening the gearbox cover and in the holes fasten bracket no. 1.820.623.001 with support no. 1.820.208.000.

NOTE: use screws slightly longer than the ones removed.

  1. Add a bolt of suitable size in the hole on the right.
  2. Slacken the two fastening screws and remove the lower cover.
  3. Slacken the bolt fastening the gearbox to the engine.
Diagram showing gearbox with torque specifications 75 ÷ 92 Nm (7.6 ÷ 9.4 Kgm) and parts labeled 1, 2, 3, 4 with part numbers 1.820.623.001 and 1.820.208.000

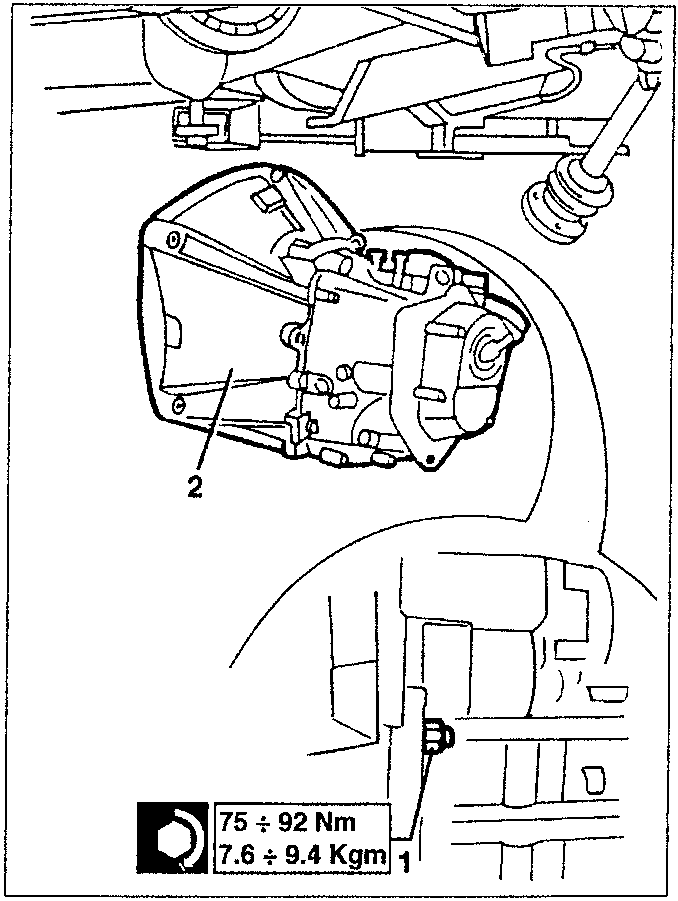

  1. Slacken the nut fastening the gearbox to the engine.
  2. Lower the gearbox disconnecting it from the engine.
Diagram showing gearbox with torque specification 75 ÷ 92 Nm (7.6 ÷ 9.4 Kgm)
