Removing / refitting (page 4 of 4)

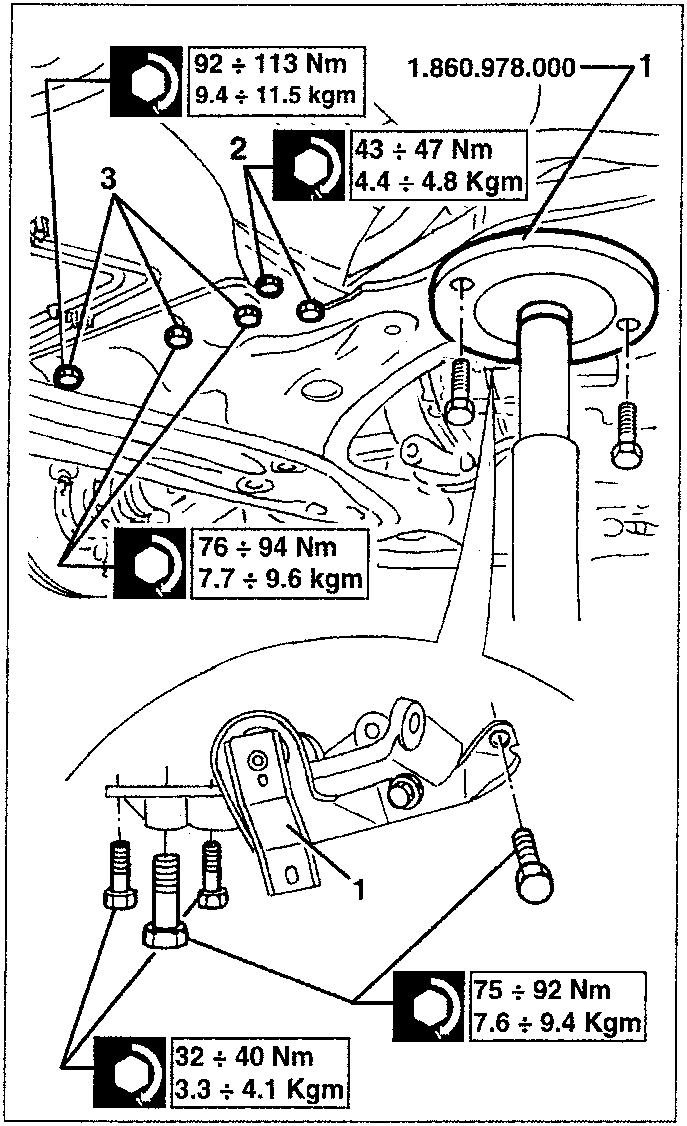

1. Remove the rear engine support.
2. Install tool 1.860.978.000 on a hydraulic jack. Fasten the tool to the centre of the crossmember.
3. Slacken the six rear screws fastening the crossmember to the body.

92 ÷ 113 Nm
9.4 ÷ 11.5 kgm

43 ÷ 47 Nm
4.4 ÷ 4.8 Kgm

76 ÷ 94 Nm
7.7 ÷ 9.6 kgm

32 ÷ 40 Nm
3.3 ÷ 4.1 kgm

75 ÷ 92 Nm
7.6 ÷ 9.4 Kgm

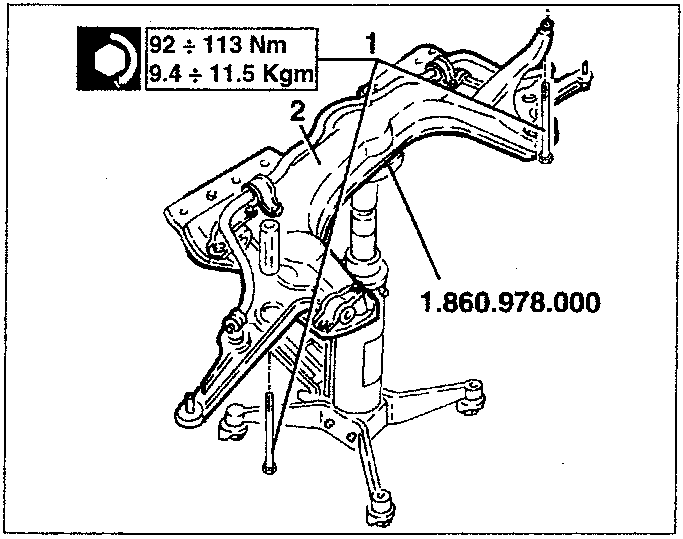

1. Slacken the two front screws fastening the crossmember to the body.
2. Lower the front crossmember and remove it.

92 ÷ 113 Nm
9.4 ÷ 11.5 Kgm

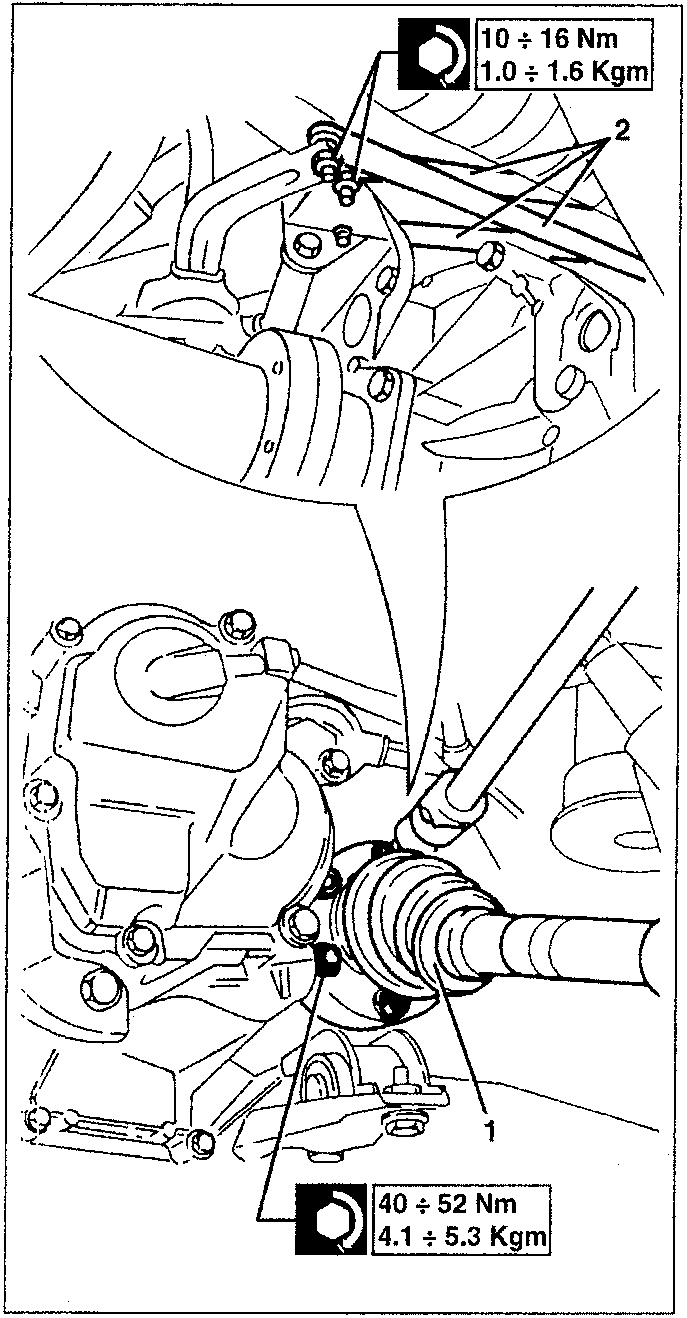

1. Slacken the six fastening bolts and disconnect the left constant velocity joint from the differential side axle shaft.
2. Disconnect the three gearbox control rods.

10 ÷ 16 Nm
1.0 ÷ 1.6 kgm

40 ÷ 52 Nm
4.1 ÷ 5.3 kgm
