Removing / refitting

REMOVING / REFITTING

• Set the car on a lift.
• Disconnect the battery.
• Remove the front wheels and gravel guards (see GROUP 70).
• Remove the engine compartment protection, right-hand side (see GROUP 70).
• Remove the air cleaner unit complete with tray and inlet sleeve and bracket (see GROUP 10).
• Move aside the injection wiring, freeing access to the gearbox.

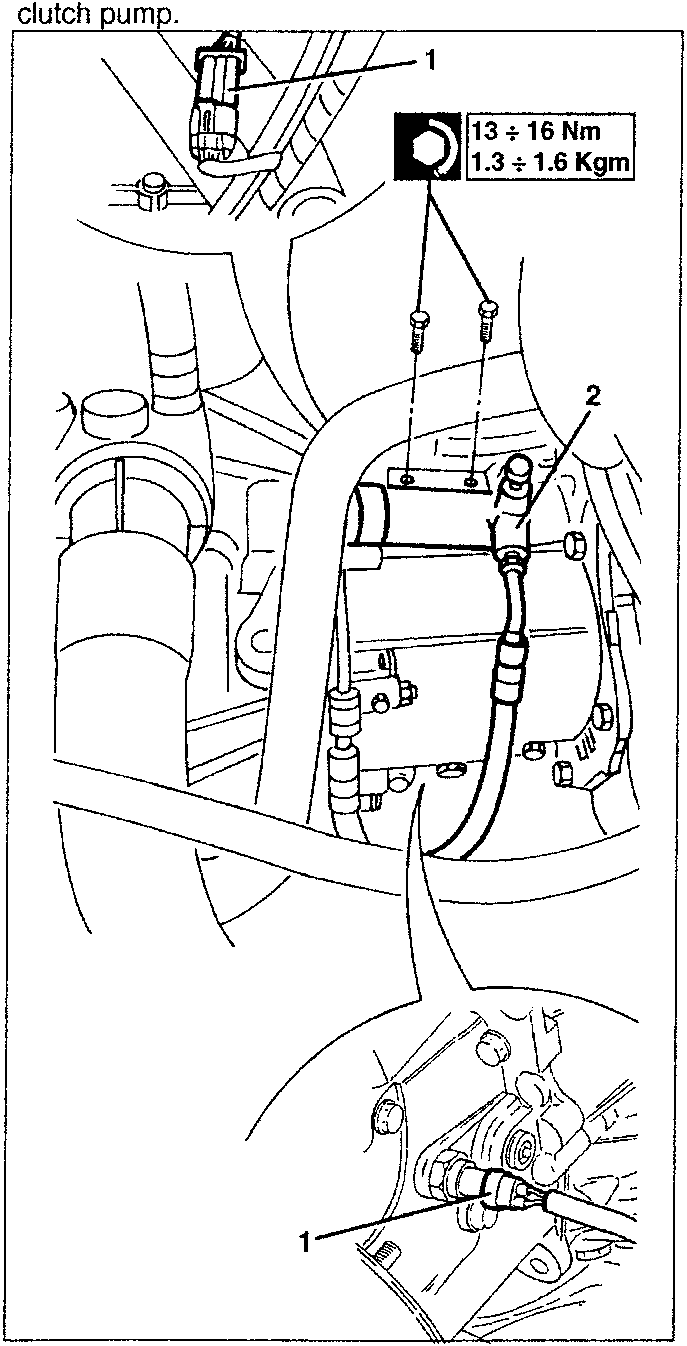

1. Disconnect the connections of the reverse switch and tachometric sensor from the gearbox.
2. Slacken the two screws and remove the clutch cylinder from the gearbox, moving it upwards: in fact the cylinder is restrained by the pipe leading from the clutch pump.

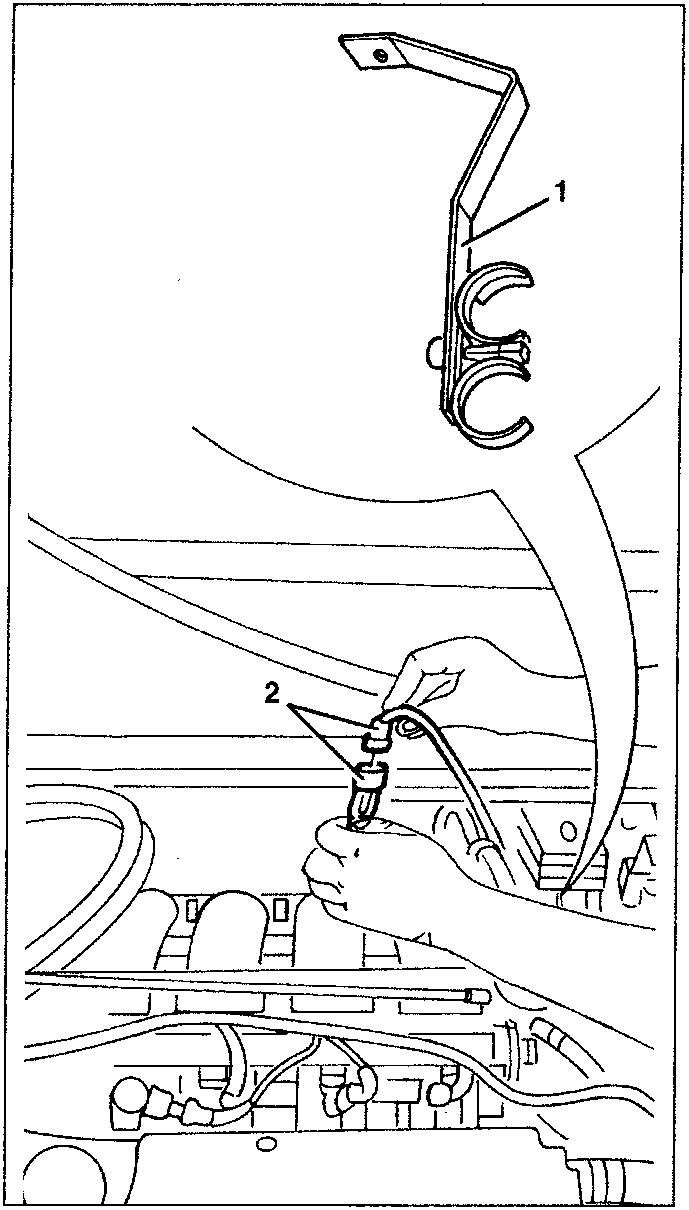

1. Remove the heater pipe fastening clamps from the throttle body.
2. Disconnect the connection of the lambda probe, disconnecting it from the stay clamp.

13 ÷ 16 Nm
1.3 ÷ 1.6 Kgm
