21 GearboxRemoving/refitting · page 6 of 6

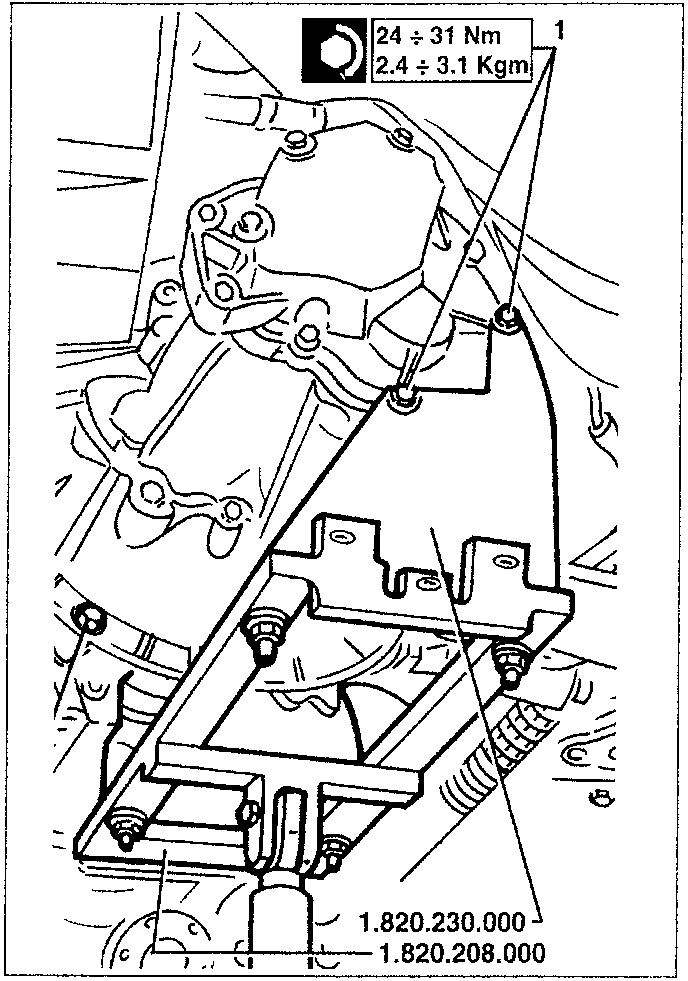

1. Slacken two of the screws fastening the gearbox cover and fasten bracket no. 1.820.230.000 and support no. 1.820.208.000.
2. Using a hydraulic hoist support the gearbox unit.

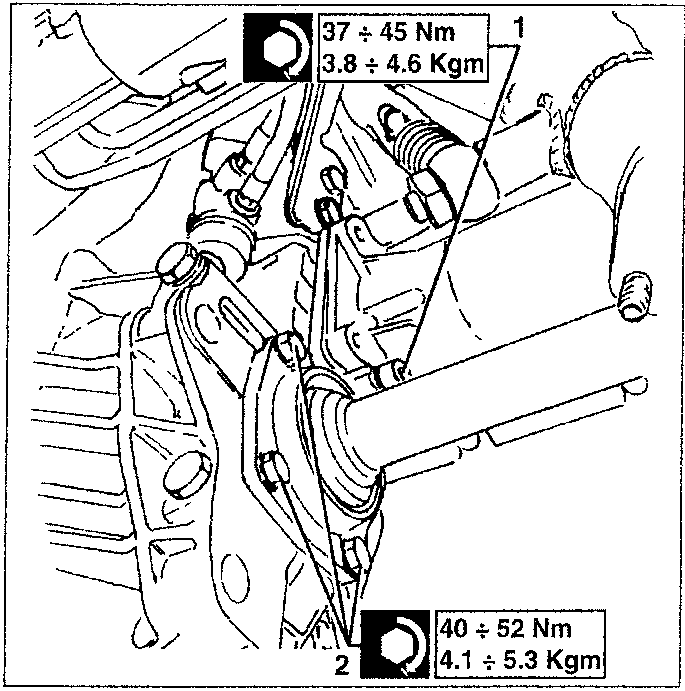

1. Slacken the rear Allen screw fastening the engine to the gearbox.
2. Slacken the four screws fastening the intermediate shaft support to the differential.

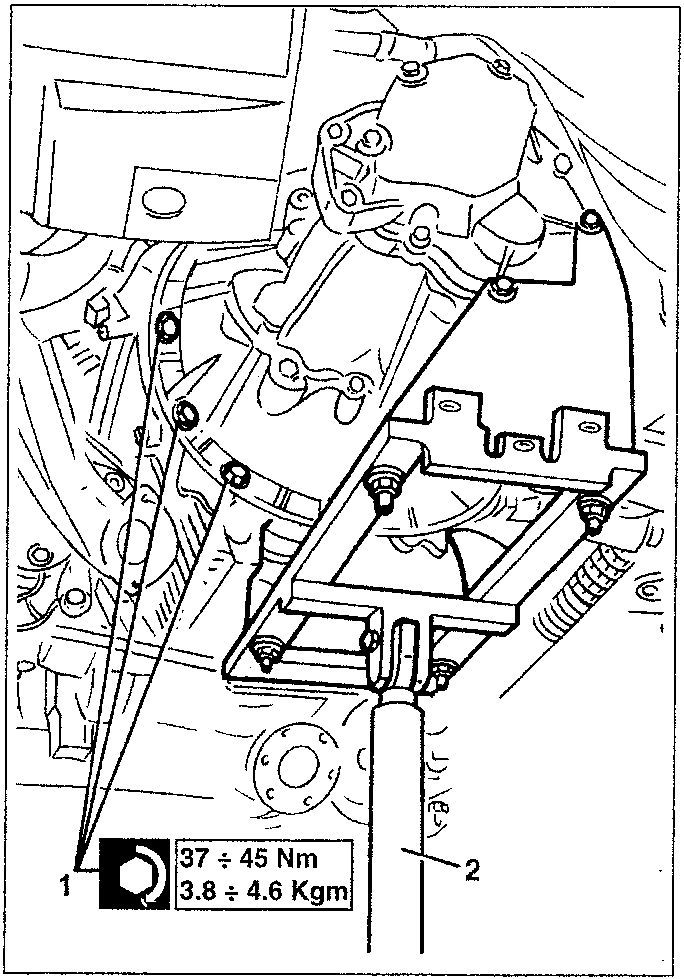

1. Slacken the three remaining screws fastening the gearbox to the engine.
2. Move the gearbox away from the engine and lower it using the hydraulic jack.
