Removing/refitting (page 4 of 6)

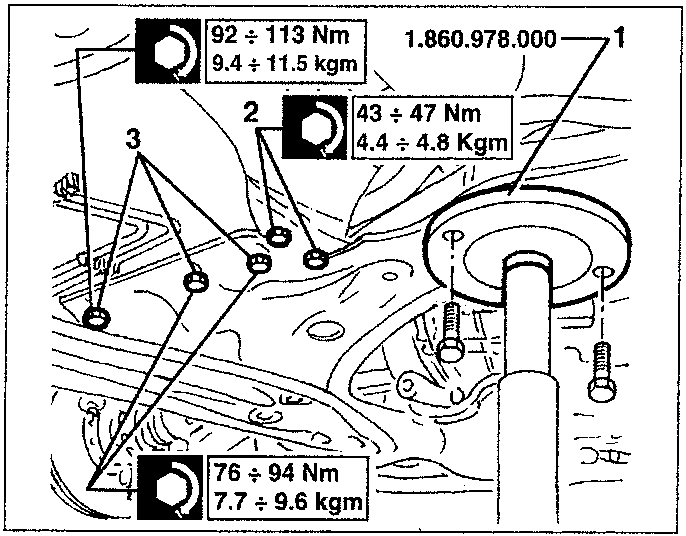

– Install tool 1.860.978.000 on a hydraulic jack.

1. Fasten the tool to the centre of the crossmember
2. Slacken the nuts fastening the crossmember to the gearbox controls support.
3. Slacken the screws fastening the crossmember to the body.

92 ÷ 113 Nm
9.4 ÷ 11.5 kgm

76 ÷ 94 Nm
7.7 ÷ 9.6 kgm

43 ÷ 47 Nm
4.4 ÷ 4.8 Kgm

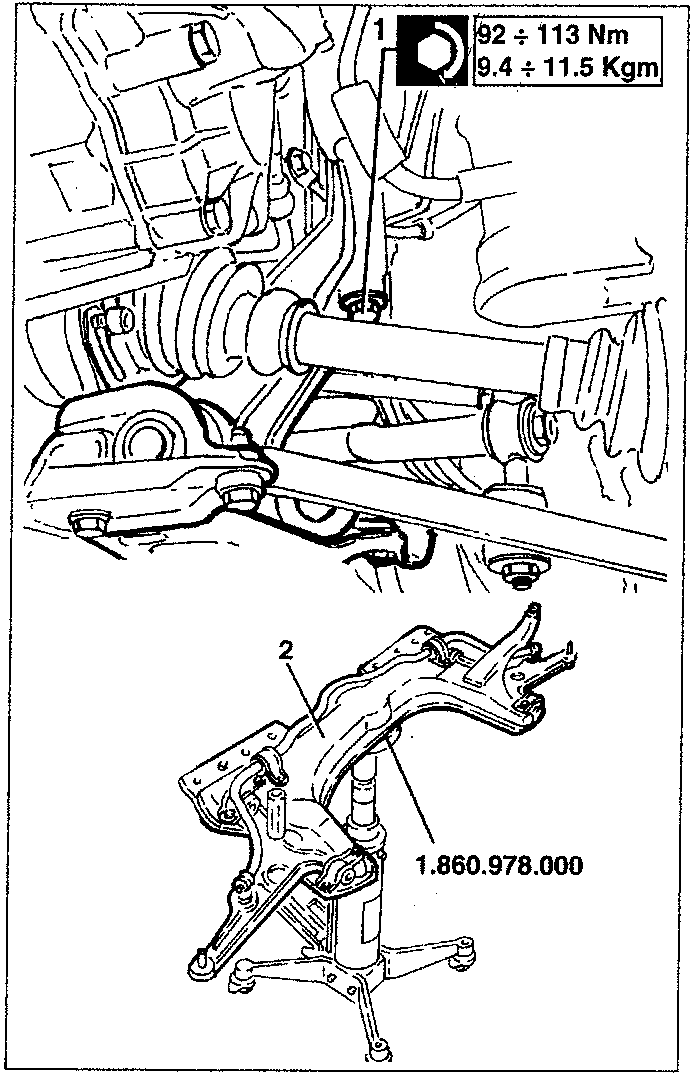

1. Slacken the screw on each side fastening the upper crossmember.
2. Slowly lower the hydraulic jack and remove the crossmember complete with wishbones and stabilizer bar.

92 ÷ 113 Nm
9.4 ÷ 11.5 Kgm

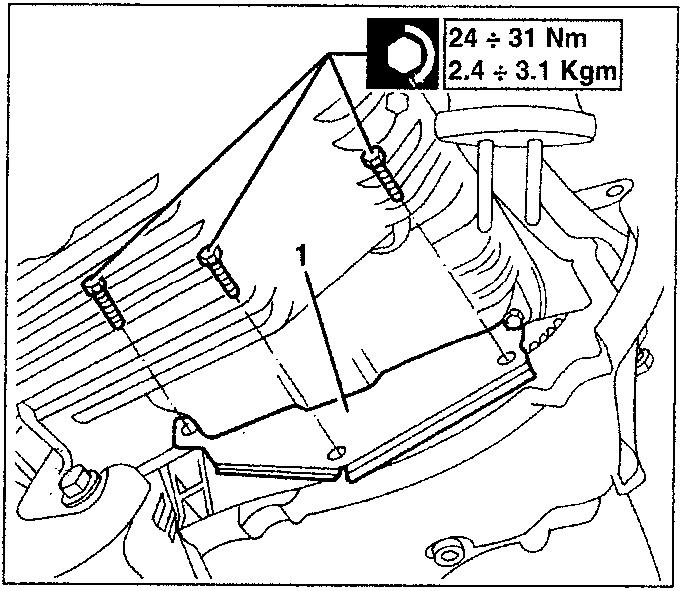

1. Slacken the screws fastening the lower flywheel cover and remove it.

24 ÷ 31 Nm
2.4 ÷ 3.1 Kgm

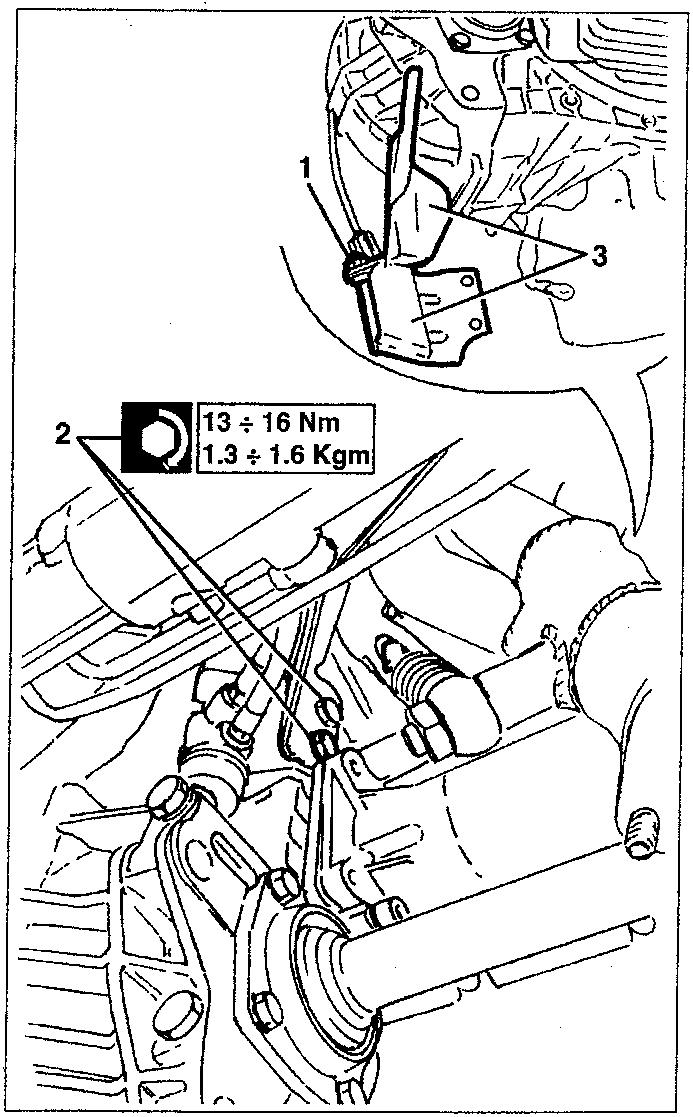

1. Slacken the two nuts fastening the upper cover of the gearbox control cables.
2. Slacken the two screws fastening the lower cover of the gearbox control cables.
3. Retrieve the two covers.

13 ÷ 16 Nm
1.3 ÷ 1.6 Kgm
