Alfa Romeo GTV and Spider (916) Factory Service Manual (1995-2000)06 · 21 Gearbox
06 · Transmission

Removing/refitting

Make
Alfa Romeo
Model
GTV / Spider GTV and Spider (916) Factory Service Manual
Year
1995–2000
Section
Gearbox unit › Removing/refitting
21 GearboxRemoving/refitting · page 1 of 6

REMOVING/REFITTING

  • Set the car on a lift.
  • Disconnect the battery.
  • Remove the front wheels.

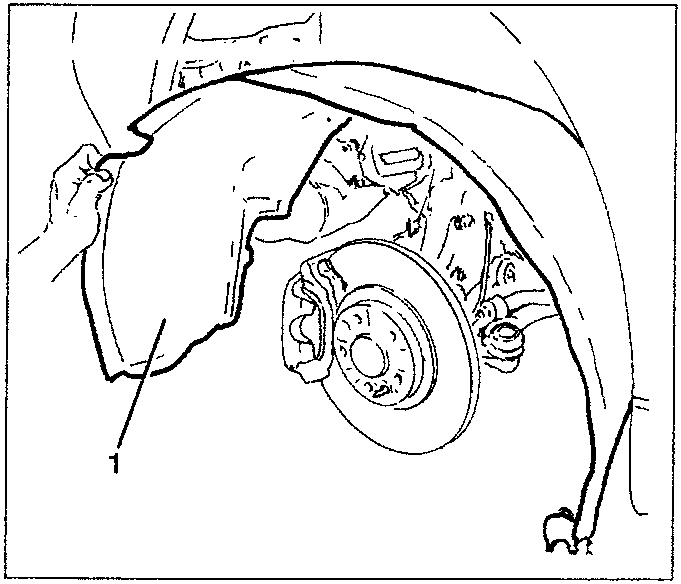

  1. Remove the left gravel guard.
Diagram showing removal of left gravel guard, labeled 1.
  • Remove the engine compartment protection, right-hand side (see GROUP 70).
  • Remove the air cleaner unit complete with inlet sleeve and tray with fastening bracket (see GROUP 10).

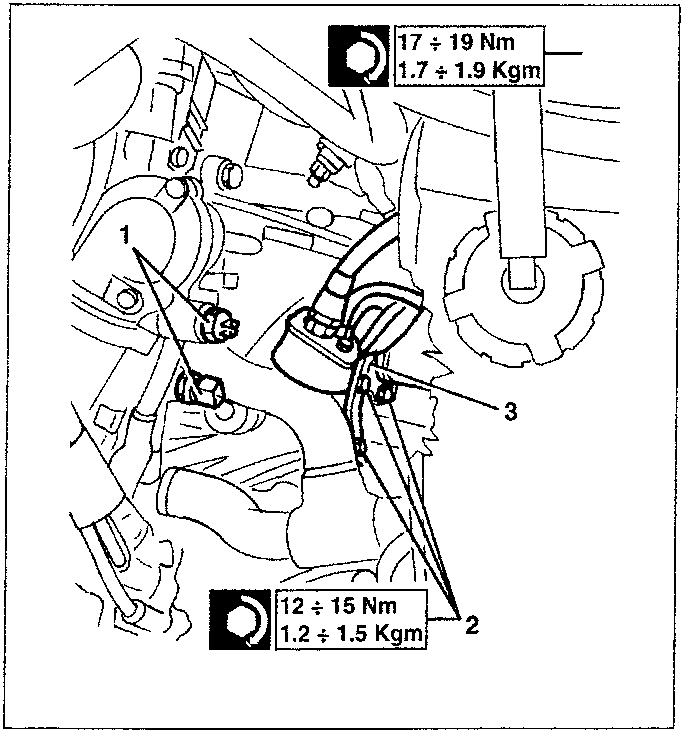

  1. Disconnect the electrical connections of the engine temperature sensors
  2. Slacken the three screws fastening the clutch cylinder bracket.
  3. Move the cylinder aside without disconnecting the pipes.
Diagram showing disconnection of electrical connections and slackening screws, with torque values 17 ÷ 19 Nm / 1.7 ÷ 1.9 Kgm and 12 ÷ 15 Nm / 1.2 ÷ 1.5 Kgm shown in boxes.

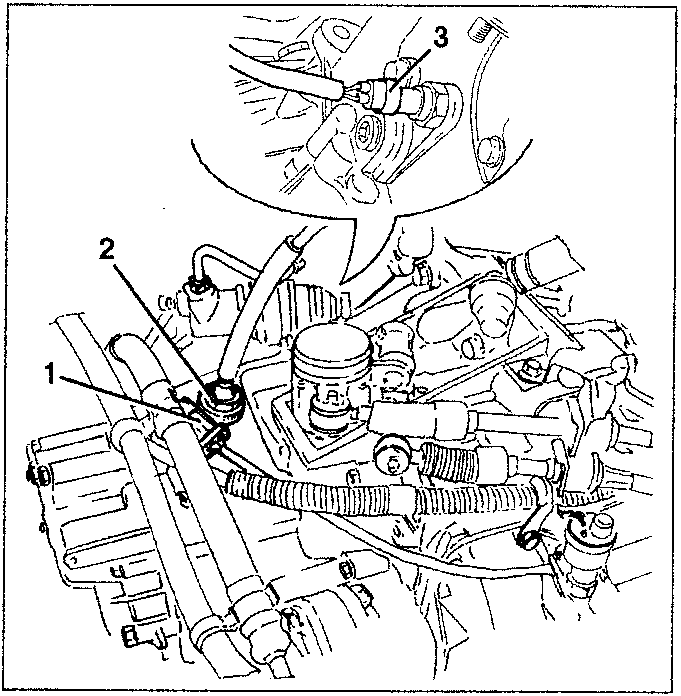

  1. Disconnect the electrical connection of the mileage recorder sensor.
  2. Disconnect the reverse gear release cable from the gearbox.
  3. Disconnect the electrical connection of the reversing switch.
Diagram showing disconnection of cables and sensors, labeled 1, 2, and 3.

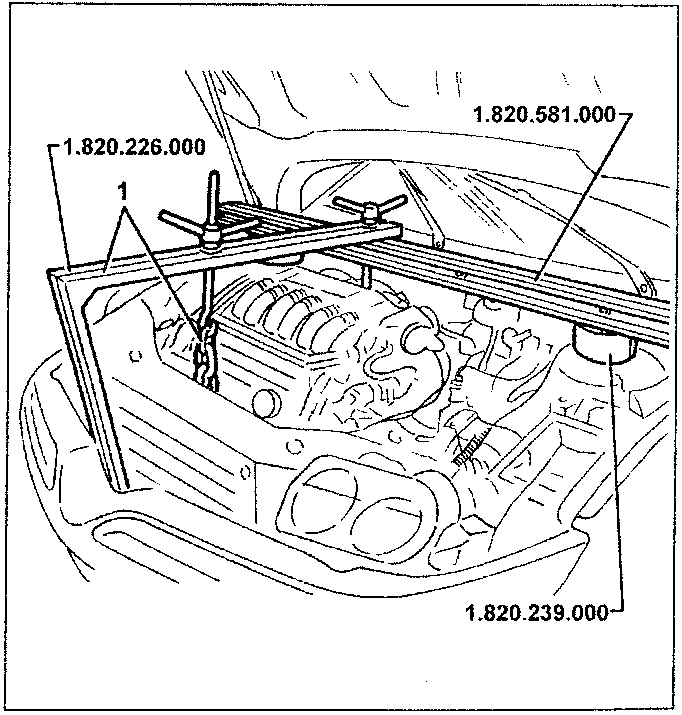

  1. Using tools 1.820.239.000, 1.820.581.000 and 1.820.226.000 suitably support the engine with a chain.
Diagram showing engine support with tools 1.820.226.000, 1.820.581.000, and 1.820.239.000.
