Removing/refitting (page 5 of 6)

Make

Alfa Romeo

Model

GTV / Spider GTV and Spider (916) Factory Service Manual

Year

1995–2000

Section

Gearbox unit

21 GearboxRemoving/refitting · page 5 of 6

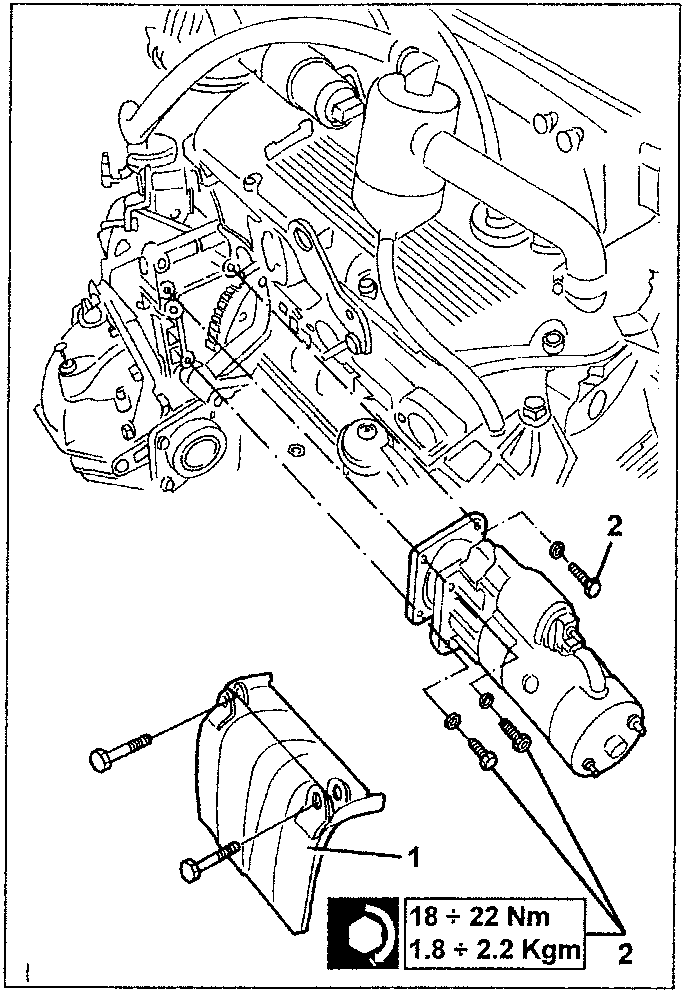

1. Slacken the screws fastening the starter motor heat shield.
2. Slacken the starter motor fastening screws.

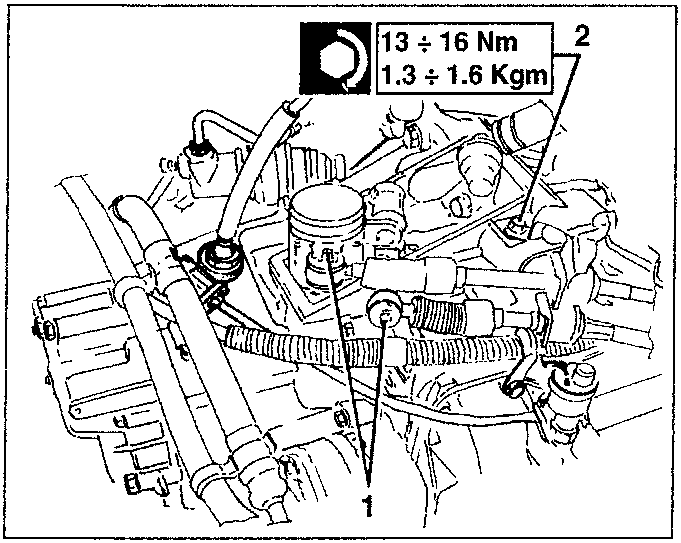

1. Remove the retainer clamps and remove the gearbox control cables from the pins.
2. Slacken the upper screw fastening the gearbox control cables support bracket.

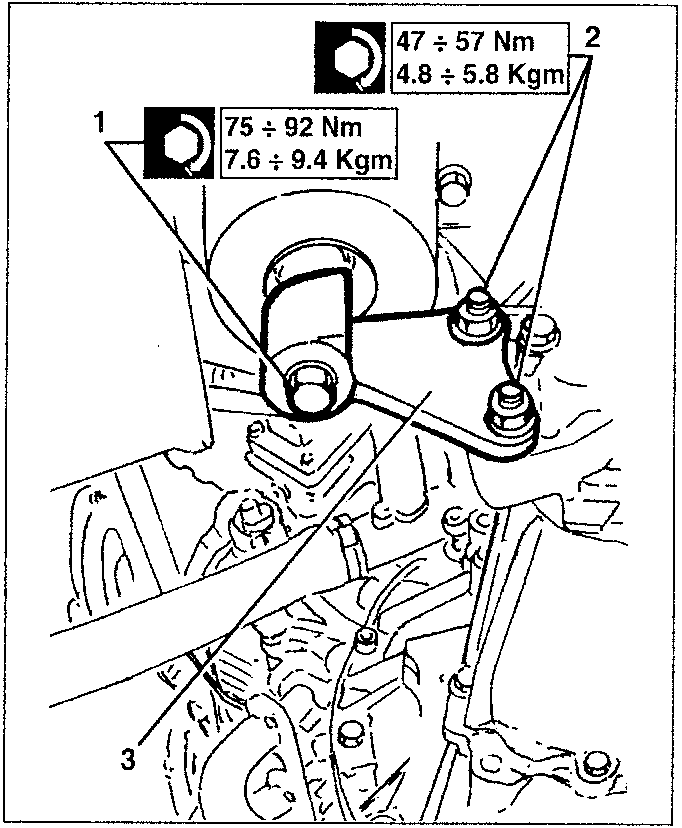

1. Slacken the screw fastening the rear gearbox support.
2. Slacken the nuts fastening the support to the gearbox.
3. Remove the support.

06 Transmission
