Removing/refitting (page 2 of 6)

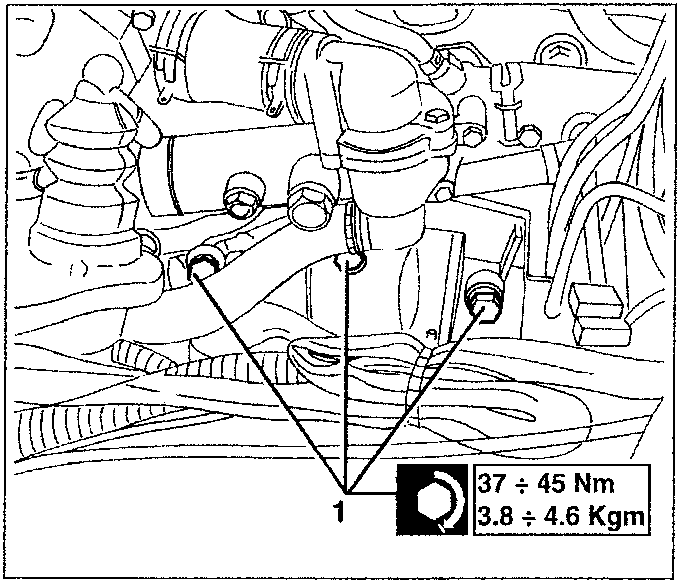

1. Slacken the three upper screws fastening the gear-box cover to the crankcase.
2. Raise the gearbox oil level dipstick.

– Raise the car.

– Set a suitable recipient under the engine compartment.

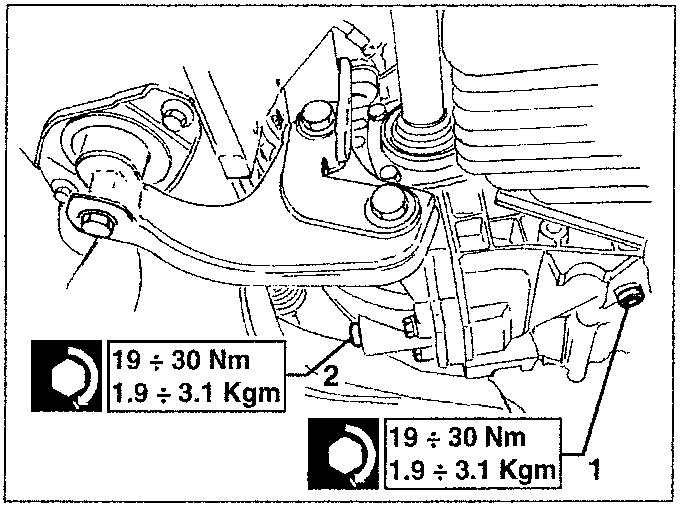

1. Slacken the plug and drain the gearbox oil.
2. Slacken the plug and drain the differential oil.

19 ÷ 30 Nm
1.9 ÷ 3.1 Kgm

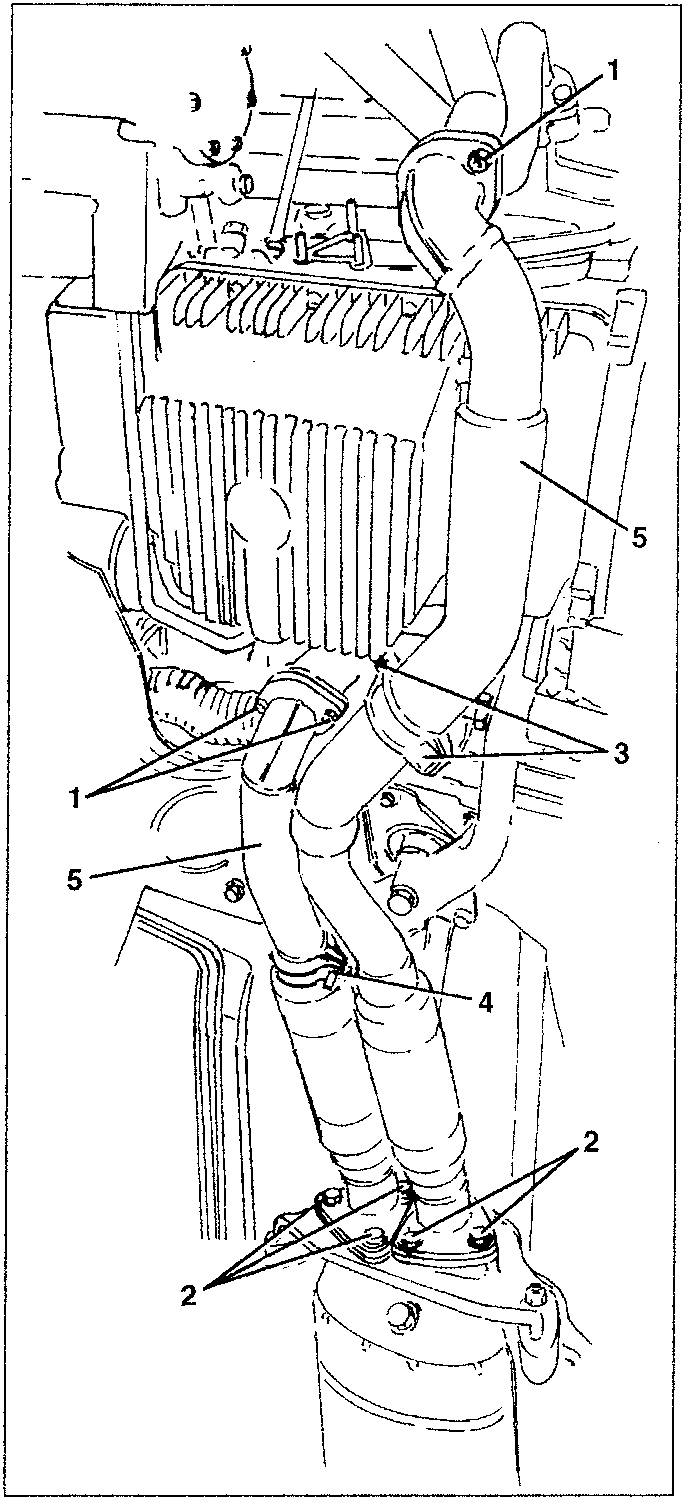

1. Slacken the nuts fastening the front exhaust pipes to the exhaust manifold.
2. Slacken the bolts fastening the pipes to the catalyst.
3. Slacken the bolt and disconnect the collar.
4. Slacken the nut and remove the collar.
5. Remove the front exhaust pipes.
