Removing / refitting (page 2 of 4)

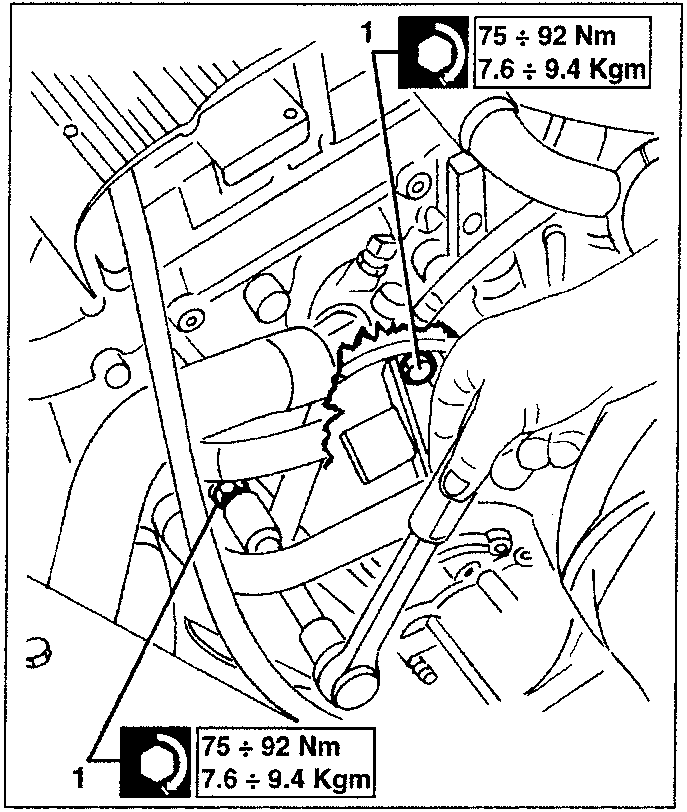

1. Slacken the two upper screws fastening the gear-box to the engine.

75 ÷ 92 Nm
7.6 ÷ 9.4 Kgm

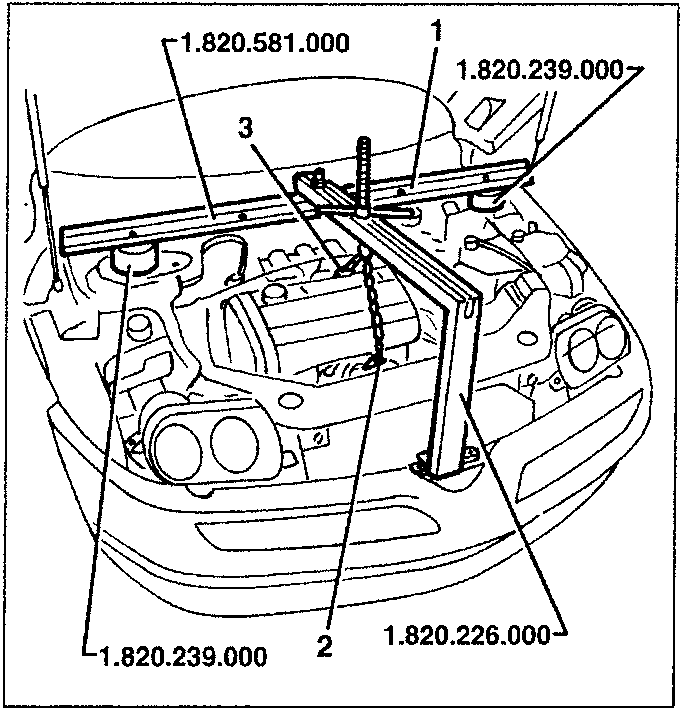

1. Position engine support 1.820.226.000, with supports 1. 820.239.000 and cross rail 1.820.581.000.
2. Place a support square on the front of the crank-case.
3. Place a support square on the rear of the crank-case, between two injectors.

• Set a chain between the two squares and the support, hooking the engine to the support.

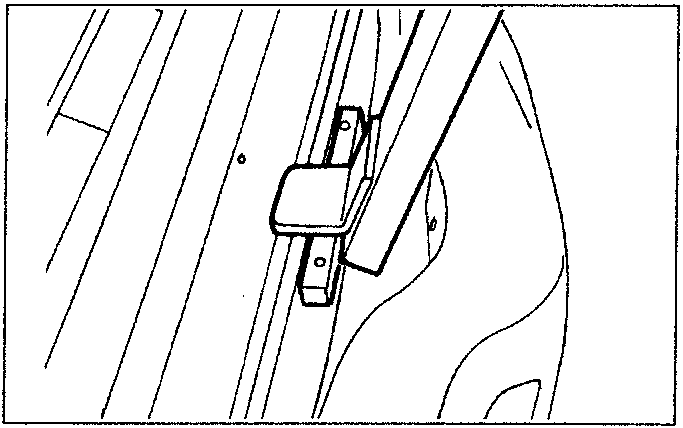

CAUTION: To avoid damaging the power steering piping housed at the front of the radiator, interpose a suitable thickness between the front connection of the tool and its resting surface.

• Raise the car.

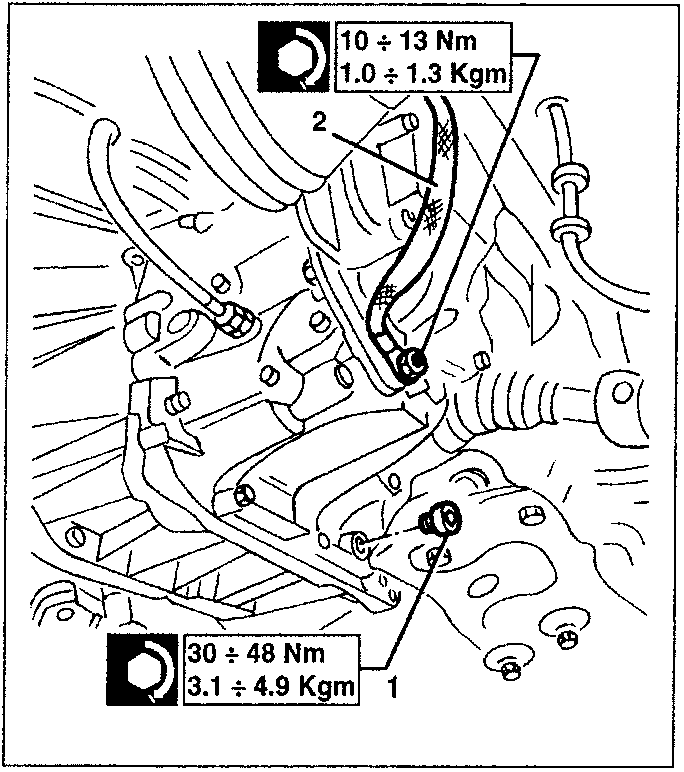

1. Slacken the plug and drain the gearbox-differential oil recovering it in a suitable recipient.
2. Disconnect the earth braid from the gearbox.
