Removing / refitting (page 3 of 4)

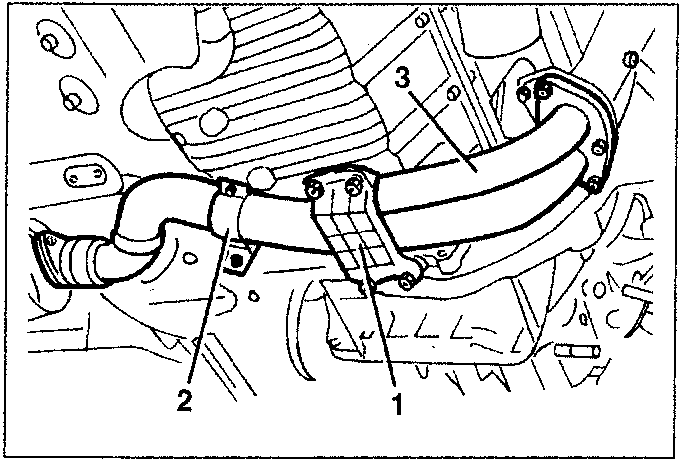

1. Remove the reinforcement under the exhaust pipe.
2. Disconnect the exhaust pipe fastening bracket.
3. Remove the exhaust pipe, front section.

NOTE: retrieve the lambda probe wiring carefully to avoid jerking or damaging it.

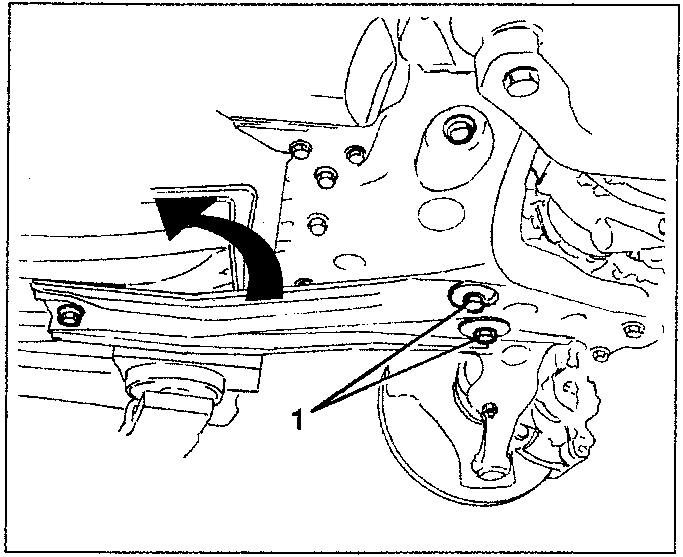

1. Removing the two screws, disconnect the front of the two front crossmember reinforcement struts and turn them rearward removing one of the rear screws.

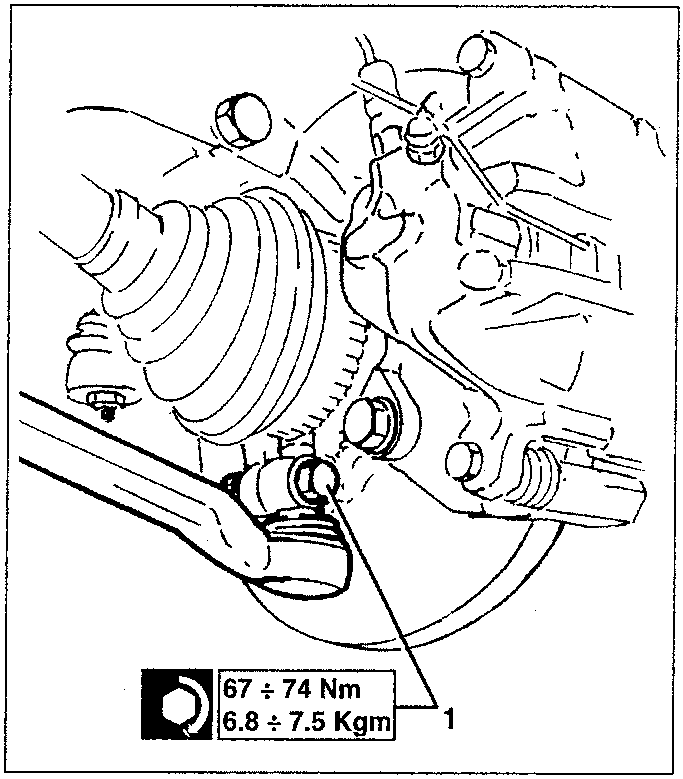

1. For both sides, slacken the two screws fastening the front crossmember to the wheel hub.

67 ÷ 74 Nm
6.8 ÷ 7.5 Kgm

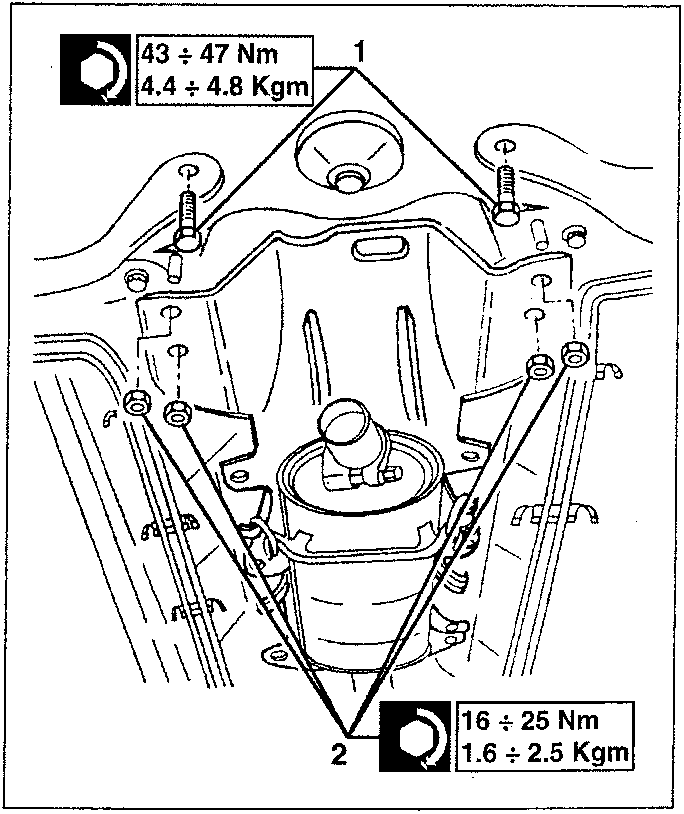

1. Slacken the two screws fastening the power steering to the front crossmember.
2. Slacken the four front nuts and slacken the other fastening screws of the gearbox controls support, which must be slightly lowered to make it possible to free the front crossmember.

43 ÷ 47 Nm
4.4 ÷ 4.8 Kgm

16 ÷ 25 Nm
1.6 ÷ 2.5 Kgm
