33 BrakesControl lever

CONTROL LEVER

REMOVAL/REFITTING

  • Set the car on a lift.
  • Remove the lever cover (see GROUP 70).
  1. Completely slacken the parking brake lever adjustment nut and release the control cable.
  2. Disconnect the electrical connection from the parking brake switch.

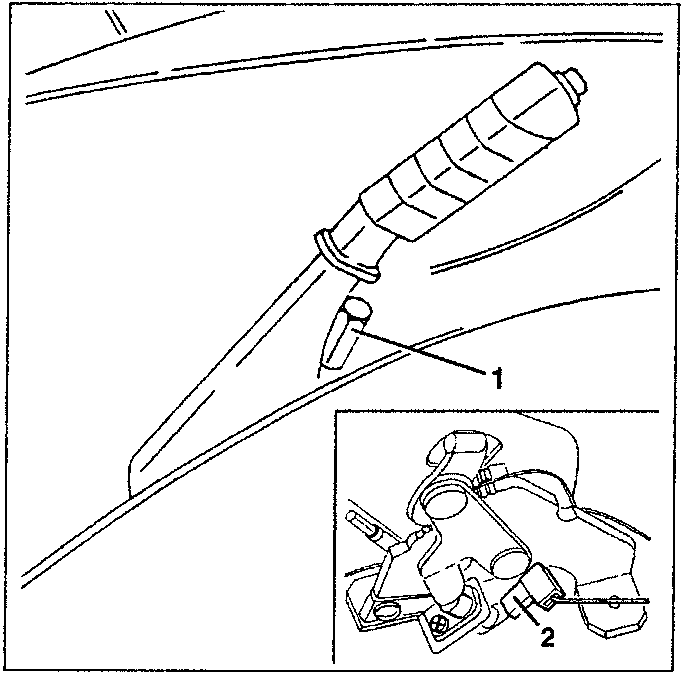

Diagram showing the parking brake control lever with parts labeled 1 and 2
  • Raise the car.
  • Slacken the fastenings of the exhaust pipe heat guards. (If necessary remove them see GROUP 10).
  1. Slacken the two screws fastening the parking brake lever.

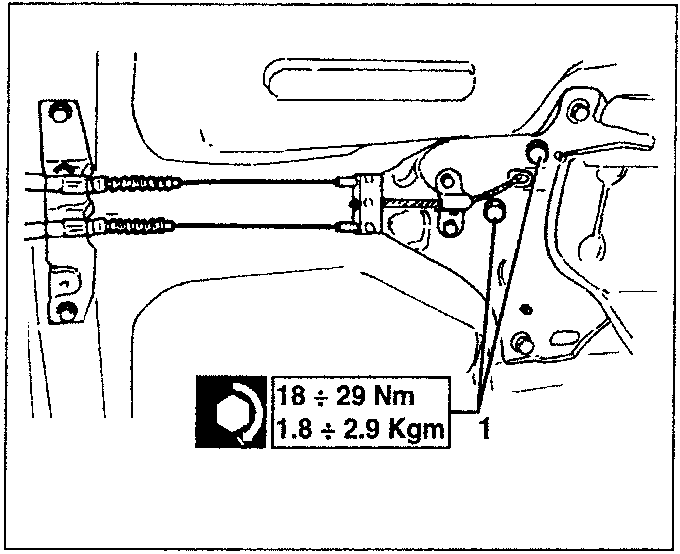

Diagram showing the control cable and adjustment nut with torque specification

18 ÷ 29 Nm
1.8 ÷ 2.9 Kgm

FRONT CONTROL CABLE

REMOVAL/REFITTING

  • Set the car on a lift.
  • Remove the parking brake control lever cover.
  1. Slacken completely the parking brake lever adjustment nut and free the control cable.

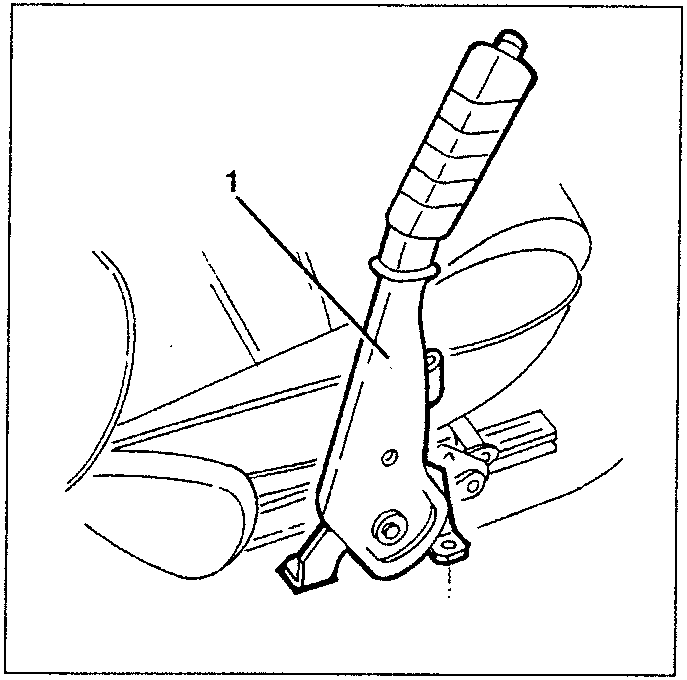

Diagram showing the parking brake control lever with part labeled 1

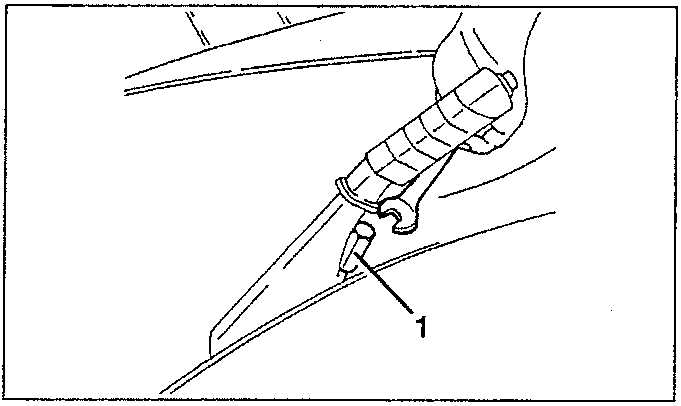

Diagram showing the front control cable with part labeled 1
