Rear control cables

– Raise the car.

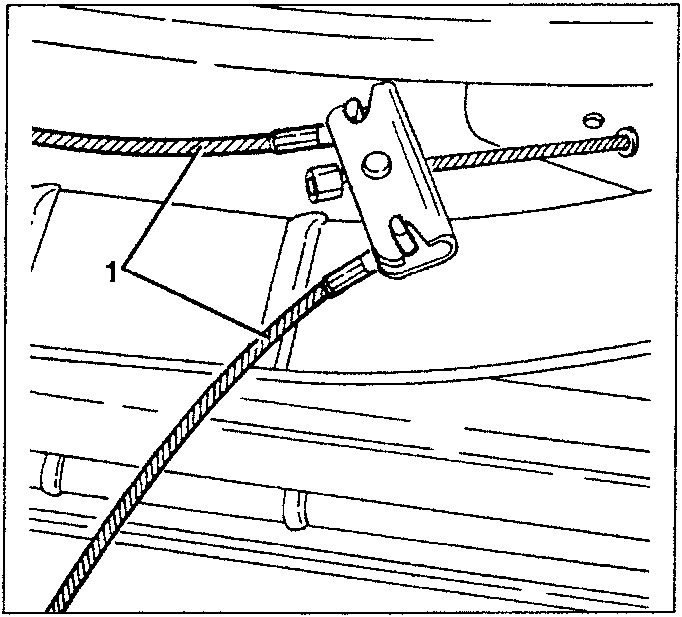

1. Disconnect the parking brake cables from the clamping bracket.

– Slacken the fastenings of the exhaust pipe heat guards. (If necessary remove them, see GROUP 10).

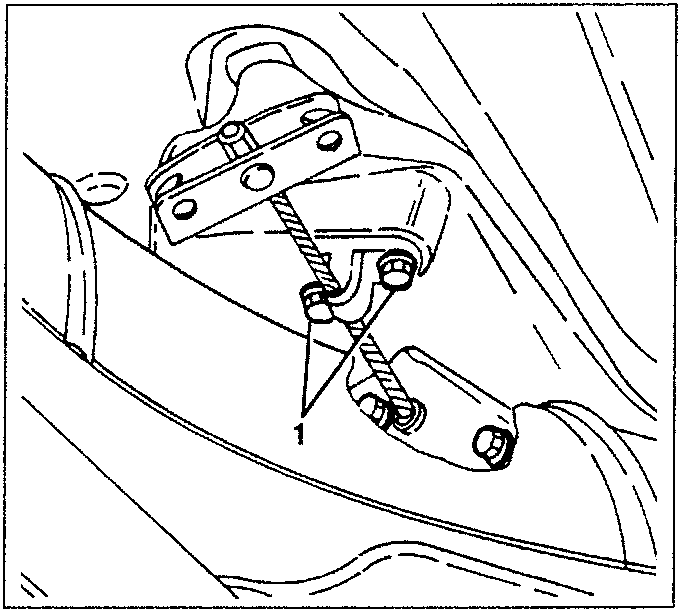

1. Slacken the two screws fastening the front parking brake cable support.

– Retrieve the front parking brake cable withdrawing it from the cable lead grommet.

When refitting, make sure of the presence and correct positioning of the cable lead grommet.

REAR CONTROL CABLES

REMOVAL / REFITTING

– Remove the lever cover (see GROUP 70).

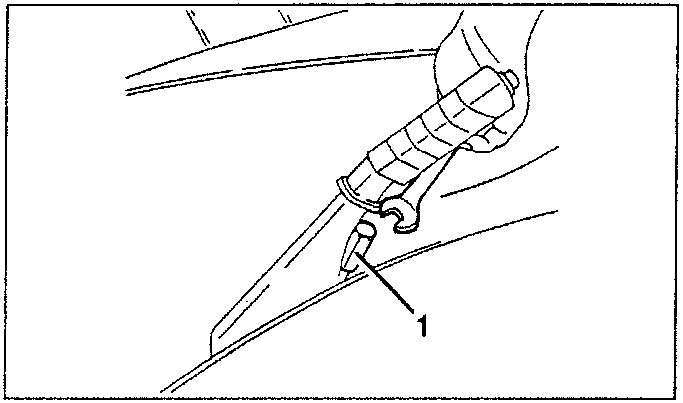

1. Working on the adjustment nut loosen the tension of the parking brake cables.

– Raise the car.

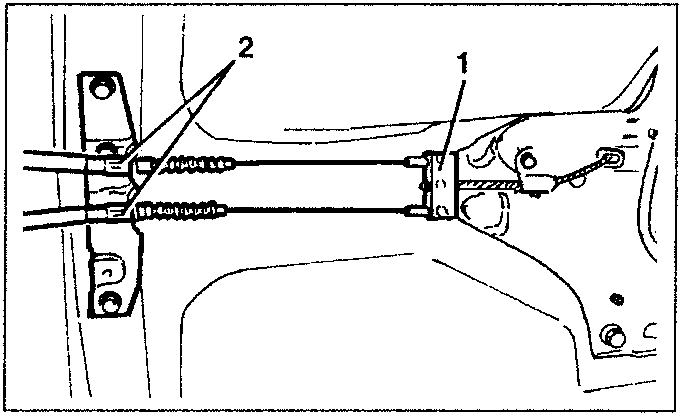

1. Disconnect the parking brake cables from the clamping bracket.
2. Disconnect the cables from the body fastening bracket.

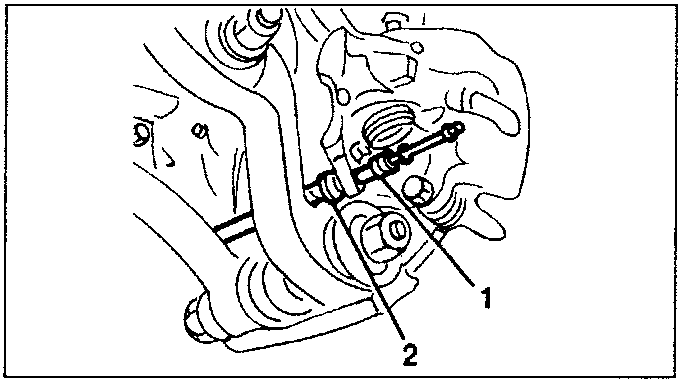

1. Disconnect the parking brake rear cables from the brake calipers.
2. Release the rear parking brake cables.
