Power steering pump

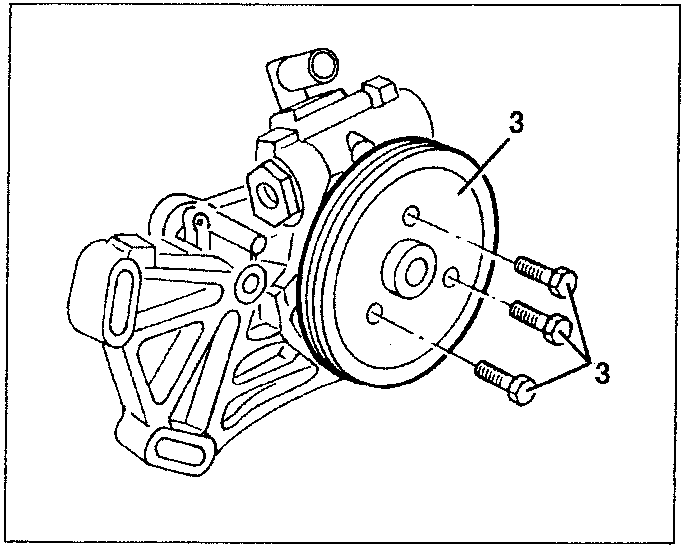

1. Holding the pump shaft still, slacken the three screws fastening the power steering pump pulley and remove it.

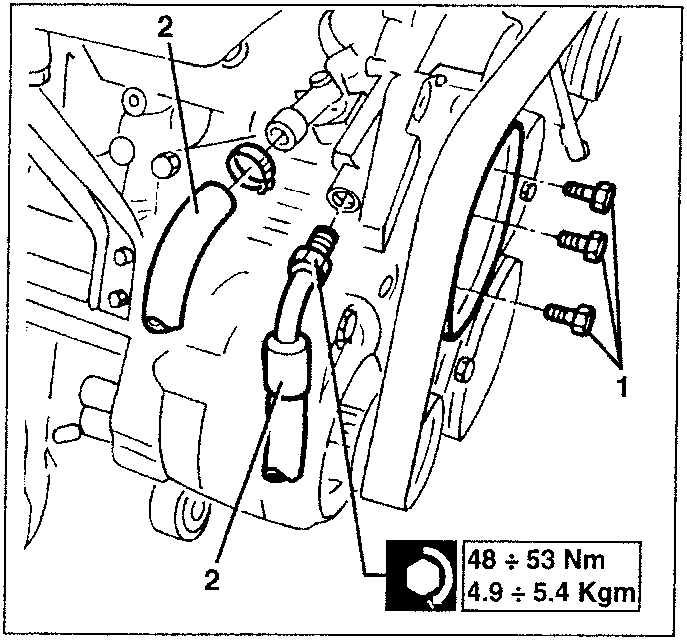

2. Working from above, disconnect the two pump suction and delivery pipes.

48 ÷ 53 Nm
4.9 ÷ 5.4 Kgm

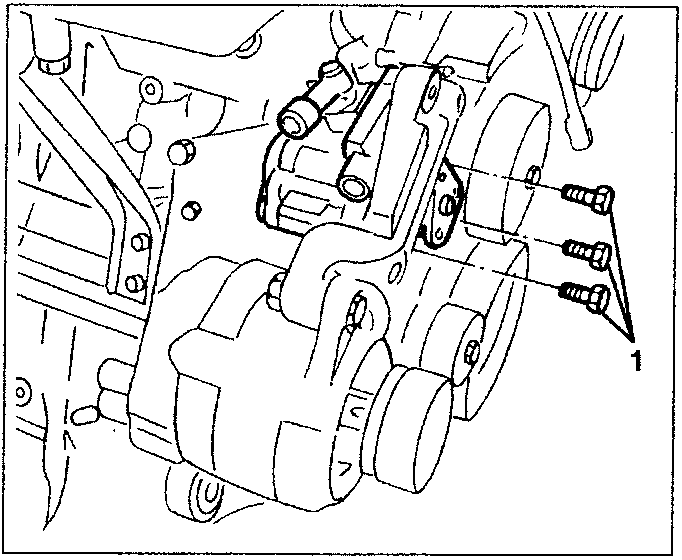

1. Slacken the three fastening screws and remove the power steering pump.

Refit the pump reversing the sequence followed for removal. Tension the belt as described in GROUP 00. Fill the hydraulic circuit and bleed the air (see specific paragraph).

POWER STEERING PUMP

REMOVING/REFITTING

(4-CYLINDER ENGINE)

• Set the car on a lift.
• Remove the right front wheel with gravel guard (see GROUP 70).
• Remove the engine compartment protection, right-hand side.
• Using a syringe, withdraw the oil from the power steering tank

1. Slacken the belt tensioner and remove the guide pulley
2. Remove the services drive belt.

Refit the pump reversing the sequence followed for removal. Tension the belt as described in GROUP 00. Fill the hydraulic circuit and bleed the air (see specific paragraph).
