Dis-assembly/reassembly

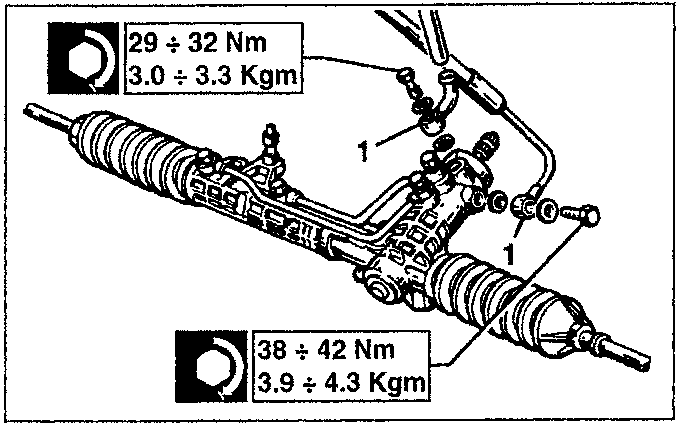

1. Disconnect the unions of the oil inlet and outlet pipes from the power steering box.

29 ÷ 32 Nm
3.0 ÷ 3.3 Kgm

38 ÷ 42 Nm
3.9 ÷ 4.3 kgm

Only for version with 4-cylinder engine

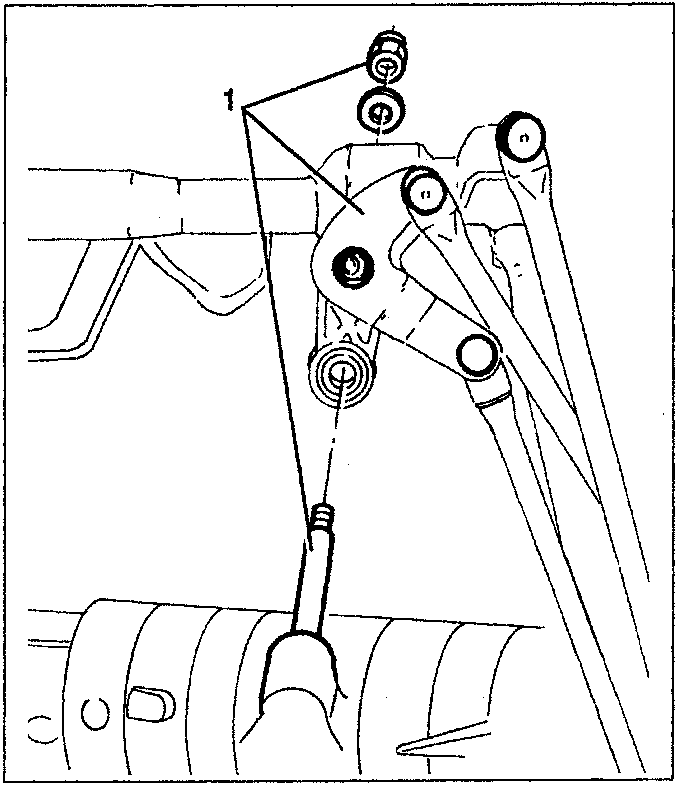

1. Disconnect the relay rod of the gear engagement rods from the pin on the steering box.

– Remove the front crossmember (see GROUP 44).

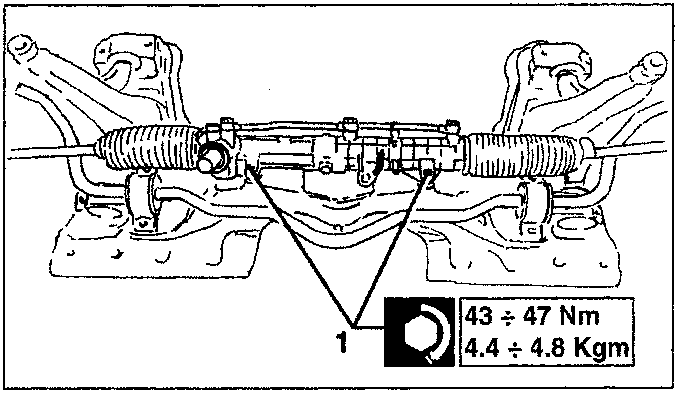

1. Slacken the two screws and separate the steering box from the crossmember.

43 ÷ 47 Nm
4.4 ÷ 4.8 Kgm

When refitting, if necessary, adjust the track rods to the correct toe-in value as described in GROUP 44.

DIS-ASSEMBLY/REASSEMBLY

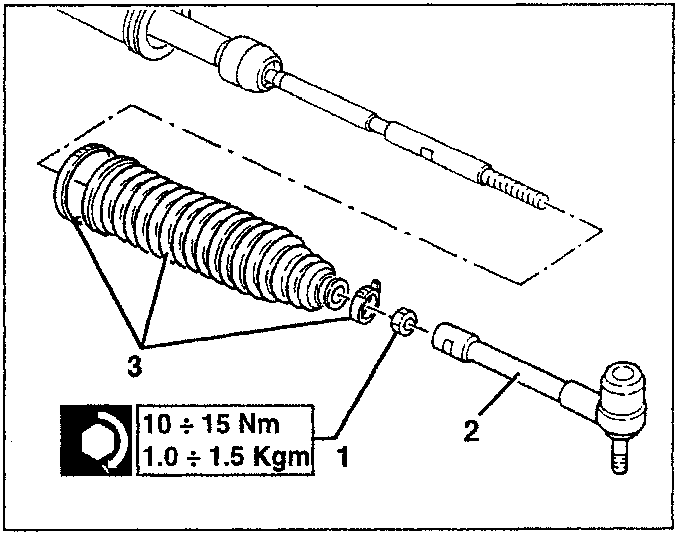

1. Slacken the track rod locknut.
2. Slacken the track rods and remove them from the arm.
3. Slacken the clamps and remove the bellows.

10 ÷ 15 Nm
1.0 ÷ 1.5 Kgm

When reassembling lubricate the contact area between the bellows and the shaft with silicone grease so that with the clamp installed and closed at the next to last or third to last tooth, the side arm turns freely inside the bellows.
