Checks and inspections (page 2 of 2)

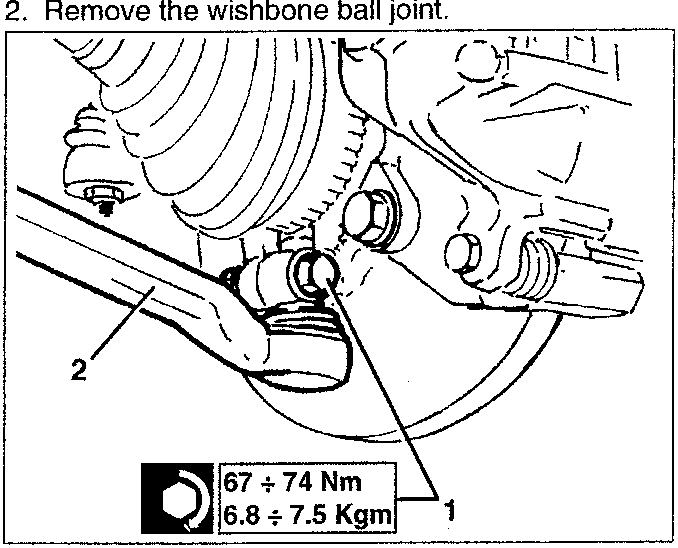

1. Slacken the bolt fastening the ball pin connecting the wishbone to the wheel upright.

67 ÷ 74 Nm
6.8 ÷ 7.5 Kgm

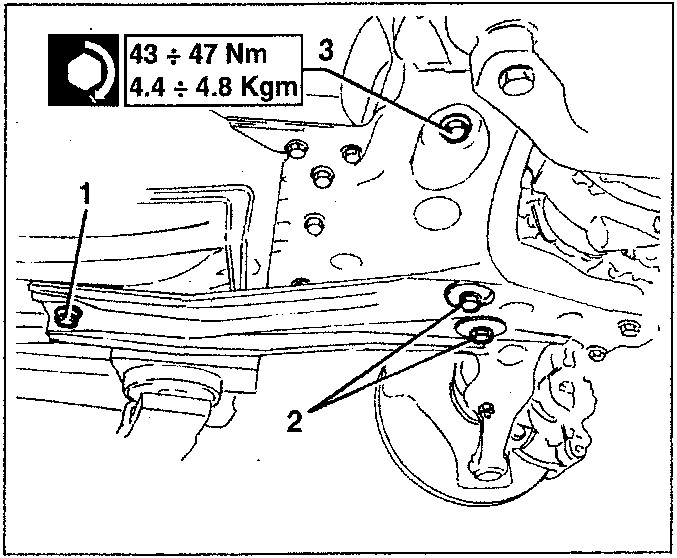

1. Working from under the car, slacken the four screws fastening each of the front crossmember reinforcement struts.
2. Remove the reinforcement struts.
3. Slacken the screws fastening the steering box to the crossmember.

43 ÷ 47 Nm
4.4 ÷ 4.8 Kgm

1. Slacken the three fastening screws.
2. Remove the rear engine mount.

102 ÷ 126 Nm
10.4 ÷ 12.8 Kgm

75 ÷ 92 Nm
7.6 ÷ 9.3 kgm

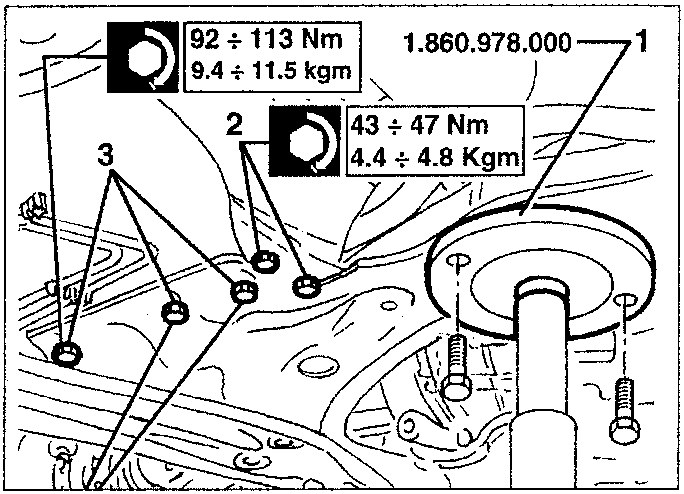

– Install tool 1.860.978.000 on a hydraulic jack.

1. Fasten the tool to the centre of the crossmember
2. Slacken the nuts fastening the crossmember to the gearbox controls support.
3. Slacken the screws fastening the crossmember to the body.

92 ÷ 113 Nm
9.4 ÷ 11.5 kgm

43 ÷ 47 Nm
4.4 ÷ 4.8 Kgm

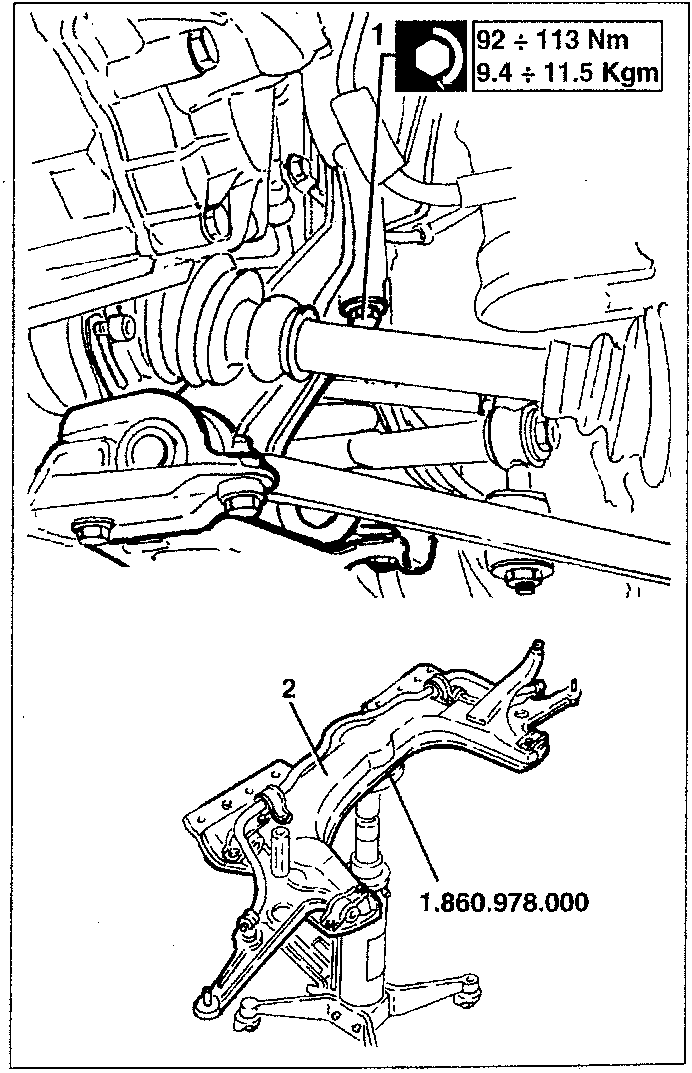

1. Slacken on each side the crossmember upper fastening screw.
2. Slowly lower the hydraulic jack and remove the crossmember complete with wishbones and stabilizer bar.

92 ÷ 113 Nm
9.4 ÷ 11.5 Kgm
