Checks and inspections

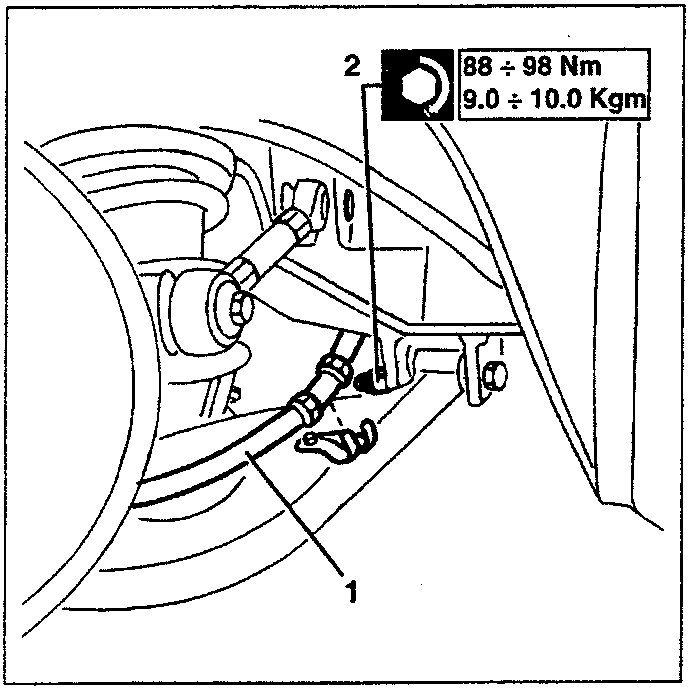

1. Remove the handbrake cable.
2. Slacken the nut fastening the spring carrier arm to the frame.

88 ÷ 98 Nm
9.0 ÷ 10.0 kgm

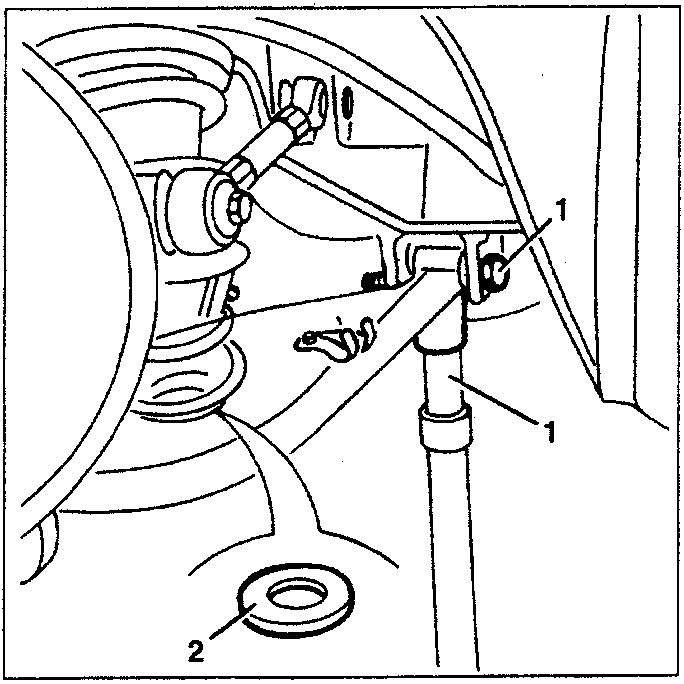

1. Set a hydraulic jack - with the support described previously - under the spring carrier arm and remove the fastening screw
2. Remove the lower spring rebound buffer

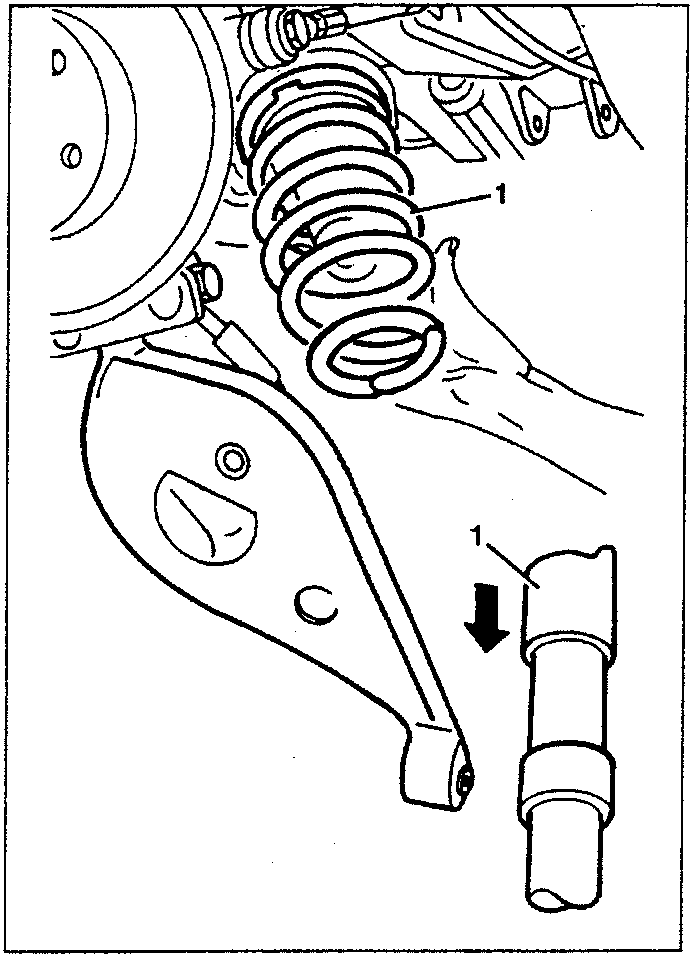

1. Lower the jack and remove the spring

CHECKS AND INSPECTIONS

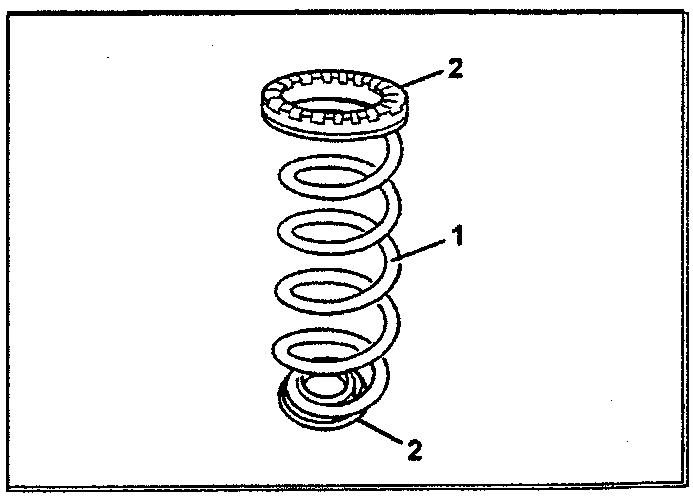

1. Visually check the springs for cracks, distortion and faults in general that might adversely affect their operation.
2. Check that the rubber parts are intact and change them if they are damaged, distorted or heavily worn.

NOTE: Coil springs are subdivided into classes of rigidity and distinguished by spots of paint of different colours. When replacing one or both springs, check that the new springs are marked with the same colour as the old ones
