44 Suspension and wheelsChecking the rear wheel camber

CHECKING THE REAR WHEEL CAMBER

– Check that the camber angle (not adjustable) is within the specified limit.

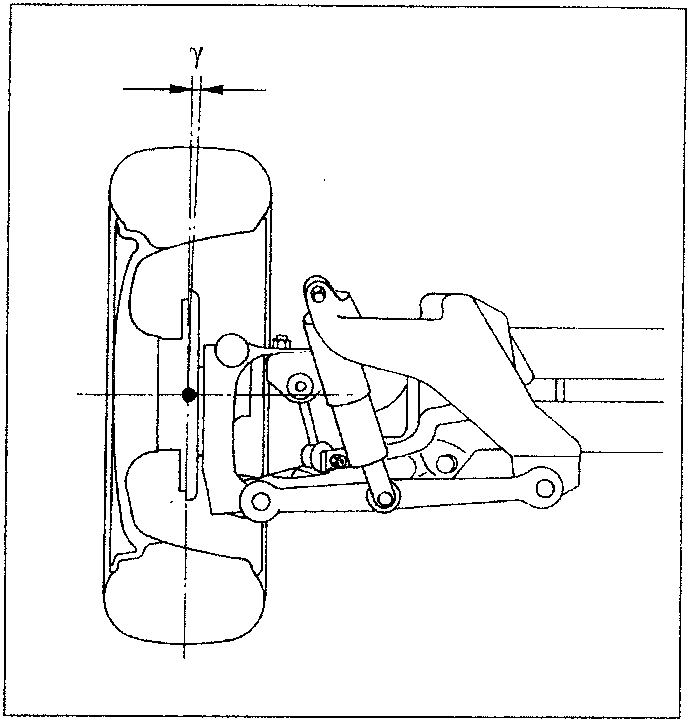

Rear wheel camber "γ"
SPIDER	GT V
3.0 V6	1.8 T.S. 16v 2.0 T.S. 16v	1.8 T.S. 16v 2.0 T.S. 16v
-1°10' ± 20'*	-1°5' ± 20' *	-1°8' ± 20'*
-0°52' ± 20'**	-0°59' ± 20' **	-1°14' ± 20'**

* To '97 versions

** '98 versions
