Passenger side airbag disable switch

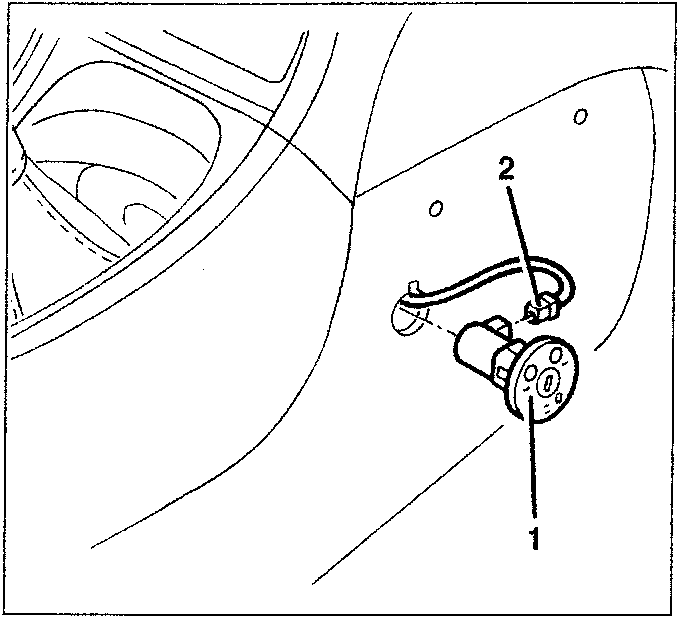

PASSENGER SIDE AIRBAG DISABLE SWITCH

REMOVAL/REFITTING

Before removing and refitting the ECU, perform the following preliminary operations: - Turn the ignition key to "STOP" and remove it; - Disconnect the battery.

1. Remove the switch.
2. Disconnect the electrical connection and take the switch.

Refit the switch by reversing the removal sequence.

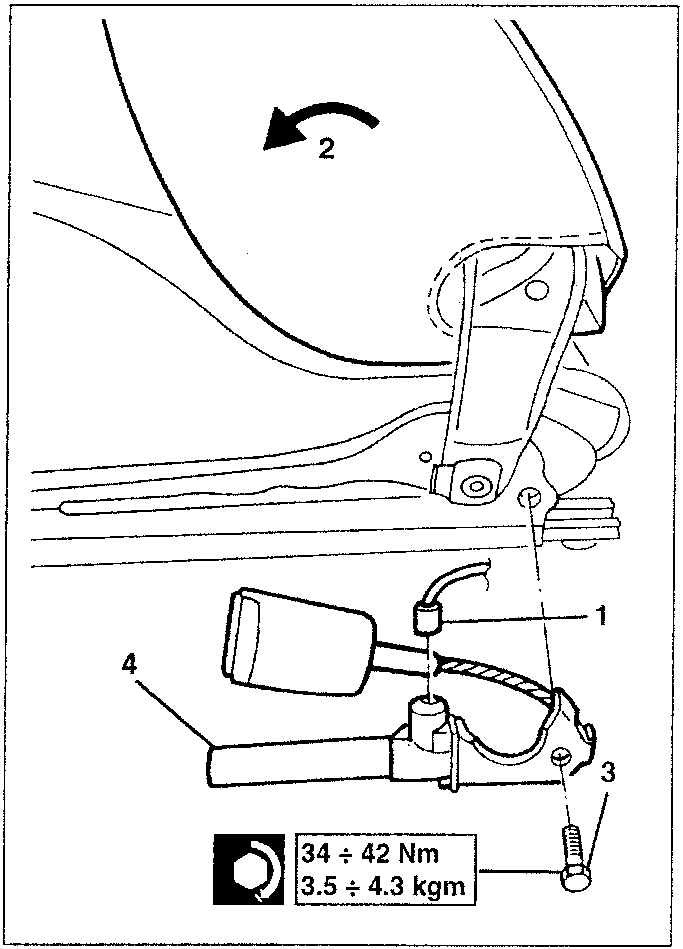

FRONT SEAT BELT PRE-TENSIONERS

REMOVAL/REFITTING

Before doing any work on the system carefully adhere to the SAFETY INSTRUCTIONS given in "Group 55 - ELECTRIC SYSTEM DIAGNOSIS", Section "Air Bag and Pre-tensioners". In particular disconnect both battery terminals, isolate them and wait for 10 minutes before doing any work.

– Remove the seat (see specific paragraph).

1. Disconnect the connection of the pre-tensioner.
2. Tilt the seat back forwards.
3. Slacken the screw fastening the seat belt whip.
4. Retrieve the whip complete with pre-tensioner, passing the belt buckle between seat back and cushion.

34 ÷ 42 Nm
3.5 ÷ 4.3 kgm

During both removal and refitting, avoid the use of pneumatic screwdrivers and always avoid knocking the pre-tensioner.

DO NOT CONNECT THE BATTERY IF THE ASSEMBLY HAS NOT BEEN COMPLETED CORRECTLY. NOTE: After the intervention, check system efficiency by means of a TESTER or other diagnostic tool.
