55 Electric systemBonnet open detection switch

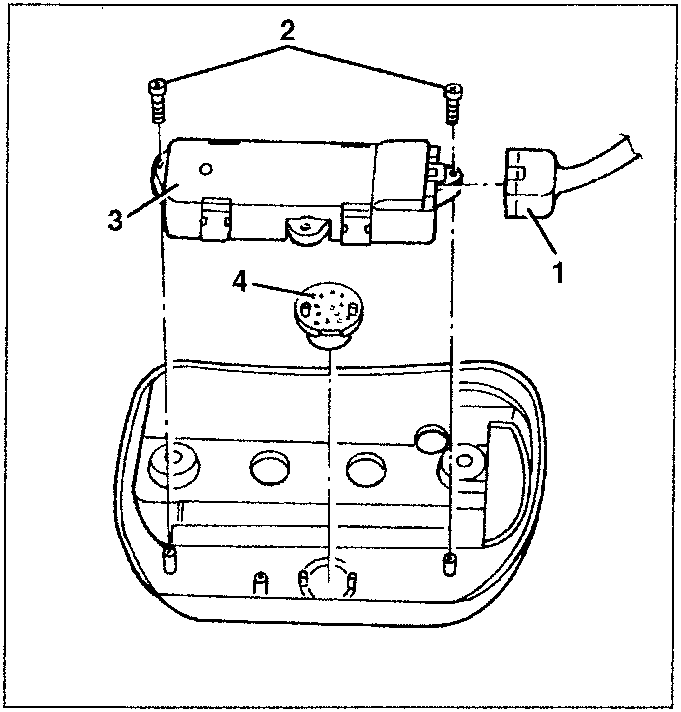

1. Disconnect the electrical connection.
2. Slacken the three screws.
3. Remove the receiver unit base.
4. Retrieve the receiver element below.

Refit the receiver unit reversing the sequence followed for removal.

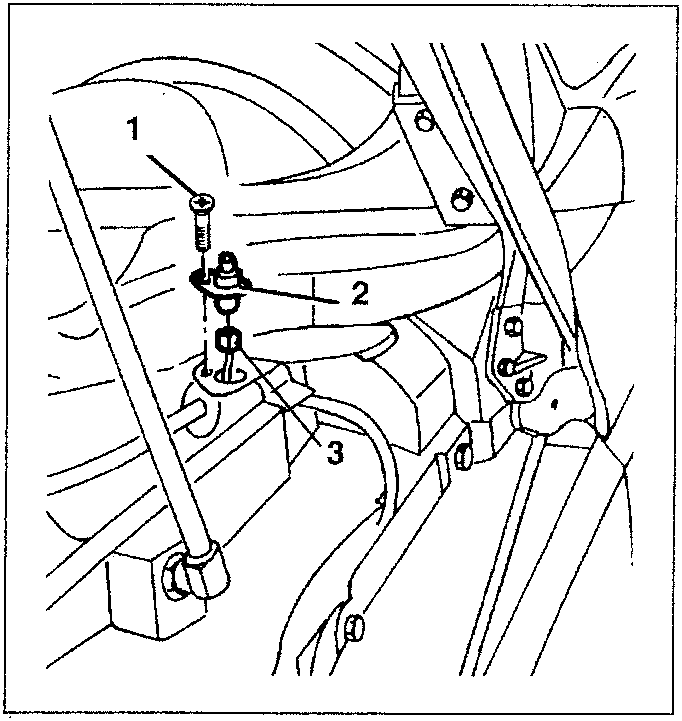

BONNET OPEN DETECTION SWITCH

REMOVAL/REFITTING

• With the alarm deactivated, disconnect the battery and open the bonnet.

1. Slacken the fastening screw.
2. Raise the switch.
3. Disconnect the connection and retrieve the switch.
