Alfa romeo code control unit

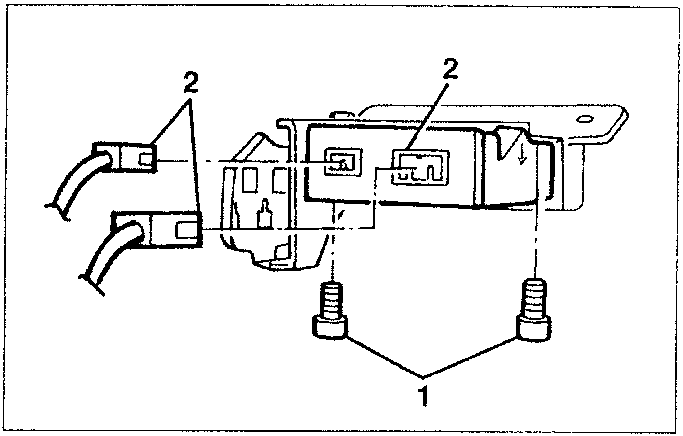

1. Disconnect the electrical connections.
2. Slacken the two screws and remove the power window control unit.

ALFA ROMEO CODE CONTROL UNIT

REMOVAL/REFITTING

• Remove the power window control unit (see specific paragraph).

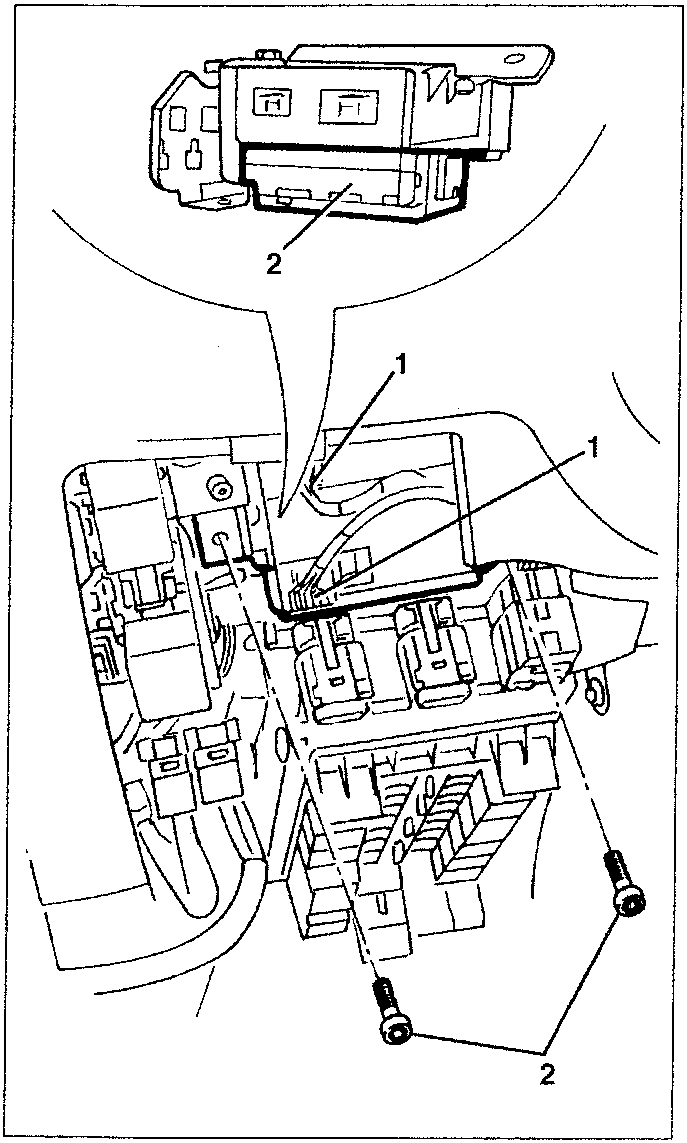

1. Slacken the two screws and lower the Alfa Romeo Code control unit below.
2. Disconnect the electrical connections and retrieve the control unit.

ALFA ROMEO CODE AERIAL ('98 versions)

REMOVAL/REFITTING

• Remove the steering wheel and the half casings (See ASSEMBLY 41).
• Remove the main instrument panel (See specific paragraph).
• Remove the instrument panel left-hand side switch assembly (See specific paragraph).

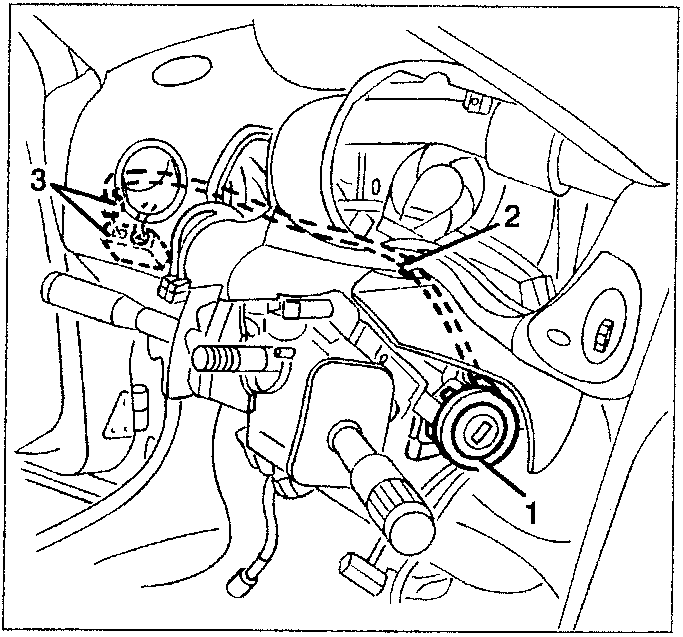

1. Release the aerial from its retainers.
2. Disconnect the aerial wire from the retainer clips.
3. Disconnect the ECU electrical connection and take the complete aerial.

Refit the code aerial by reversing the removal sequence.
