REMOVAL/REFITTING

(2959 c.c. Engine)

  • Set the car on a lift.
  • Disconnect the battery (-) terminal.

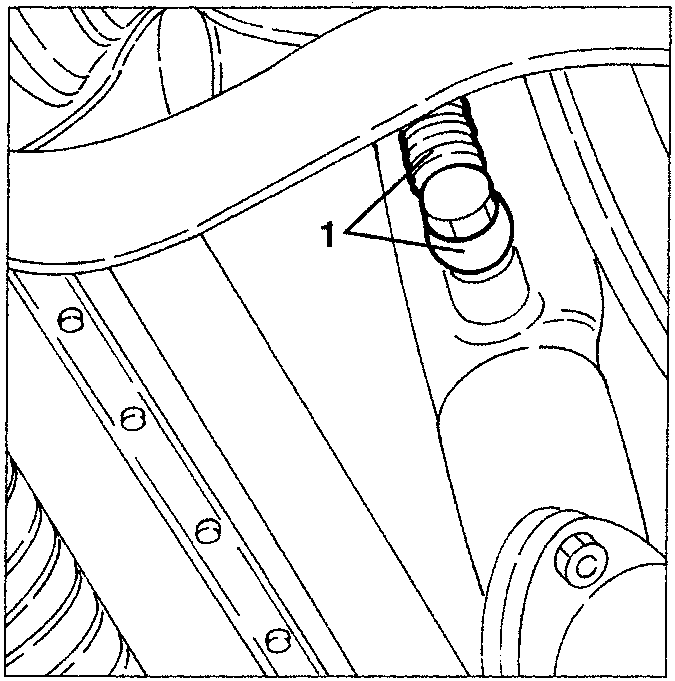

  1. Raise the car and remove the front section of the exhaust pipe after slackening the fastenings.

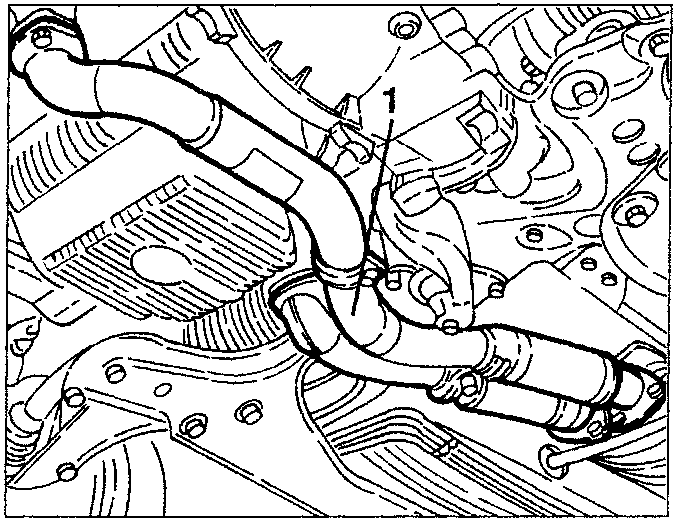

Exhaust manifold with E.G.R. valve connection
  1. Disconnect the exhaust gas takeoff pipe for the E.G.R. valve from the manifold.

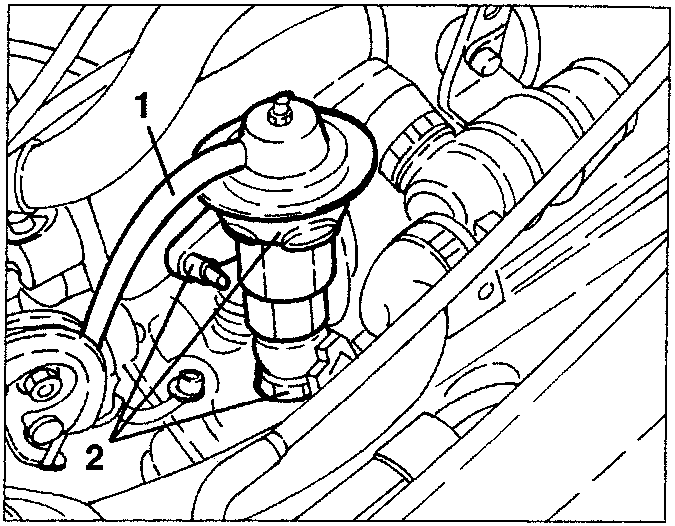

E.G.R. valve and modulated vacuum pipe connection
  • Lower the car.
  1. Disconnect the modulated vacuum pipe leading from the solenoid valve from the E.G.R. valve.
  2. Slacken the two fastening nuts and remove the E.G.R. valve complete with exhaust gas takeoff pipe.

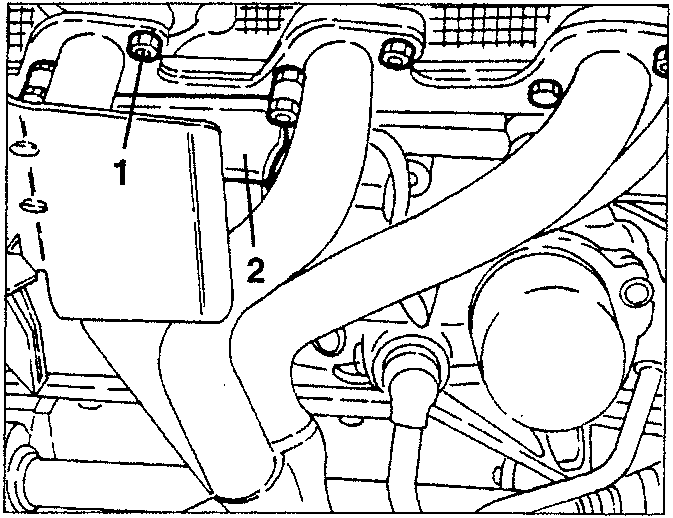

Starter motor and seal location
  • Remove the seal.
  1. Slacken the nuts fastening the exhaust manifold to the right-hand cylinder head.
  2. Retrieve the starter motor heat shields.

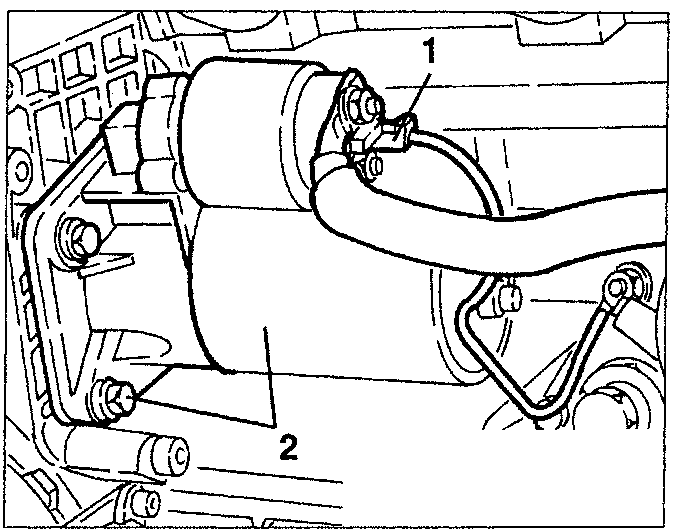

Starter motor electrical connections
  1. Disconnect the electrical connections from the starter motor.
  2. Raise the car, move the exhaust manifold to one side, then slacken the three fastening screws and remove the starter motor, bringing it out from under the car.
Starter motor mounting bolts
