DIS-ASSEMBLY

(2959 c.c. Engine)

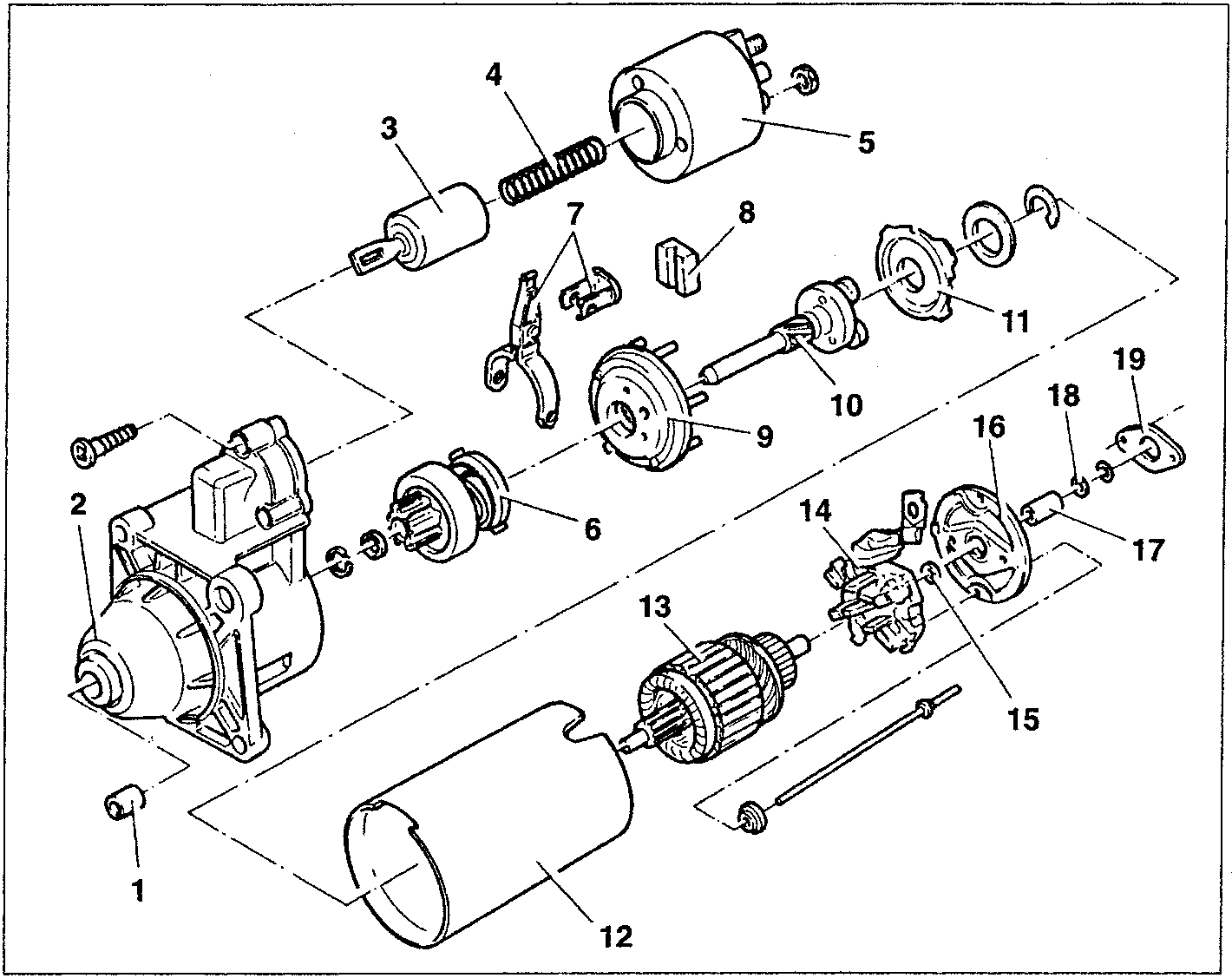

Disassembly diagram of the electrical system components for a 2959 c.c. engine, showing numbered parts laid out in exploded view.
  1. Bush
  2. Support on drive side
  3. Coupling relay rotor
  4. Return spring
  5. Coupling relay
  6. Starting coupling
  7. Fork levers
  8. Rubber pad
  9. Differential bcontrol gear
  10. Inverter
  11. Protection plate
  12. Pole frame
  13. Rotor
  14. Brush holder plate
  15. Felt ring
  16. Collector side support
  17. Bush
  18. Compensation washer
  19. Dust guard
