Servobrake

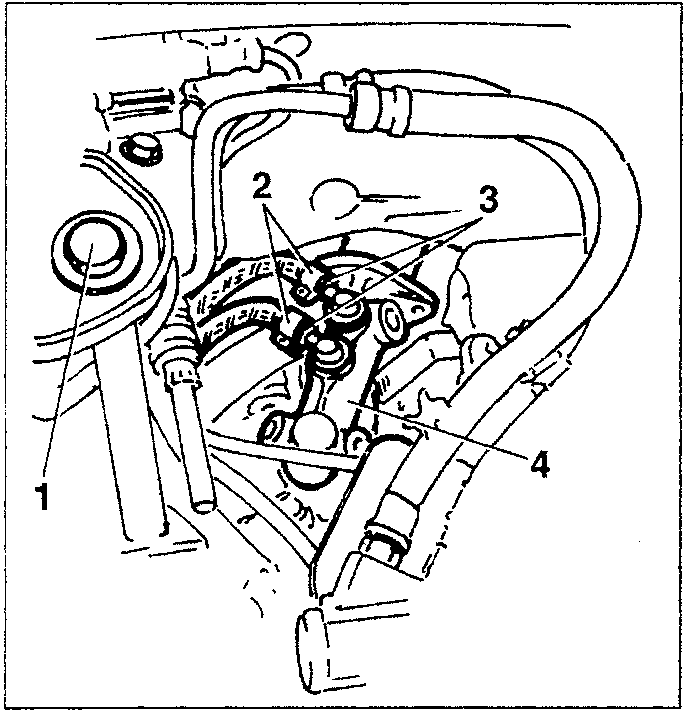

1. To facilitate removal of the pump, slacken the engine mount connecting rod stay bolt and move the engine slightly forwards by levering.

• Move the pump forwards keeping it in line with the servobrake.

2. Remove the clamps.
3. Withdraw the reservoir connection hoses.
4. Retrieve the brake pump.

When refitting relieve the air from the system. After this, top up the brake-clutch fluid in the reservoir to the correct level.

SERVOBRAKE

REMOVAL/REFITTING

• Remove the brake pump (see specific paragraph).

1. Re-tighten the nuts on the brake pump threaded stay pins.

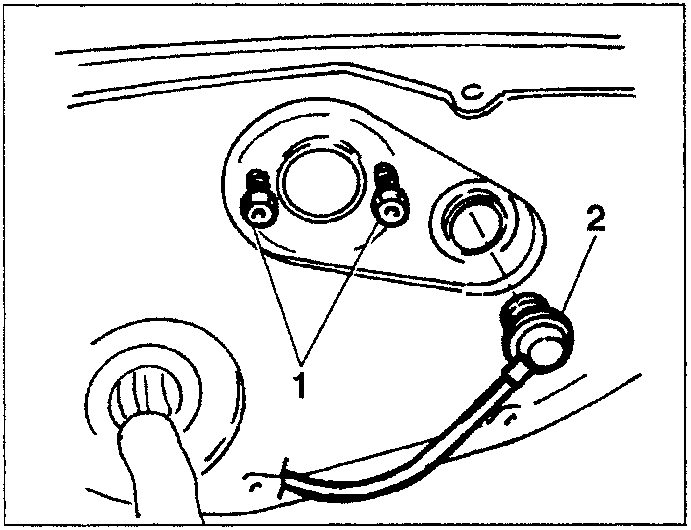

2. Disconnect the vacuum pipe from the servobrake.

Then, working from the passenger compartment, remove the dashboard (see Group 70 - Base Manual).

(Up to '97 version only)

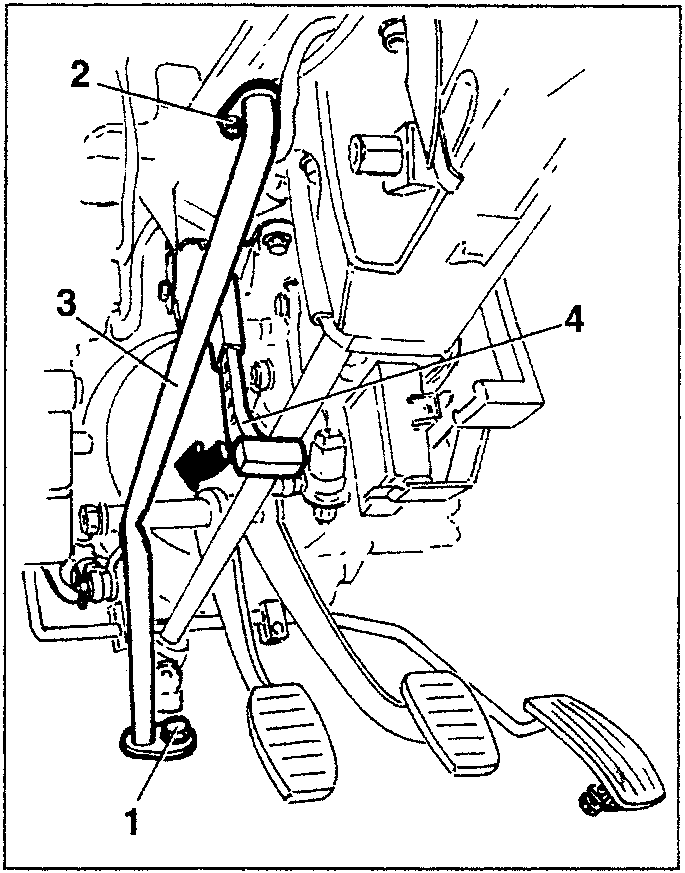

1. Slacken the lower screw of the reaction strut.
2. Slacken the two upper screws.
3. Remove the reaction strut.

(from '98 version)

• Remove the steering column cross member.

4. Push the bonnet opening lever down and release it.

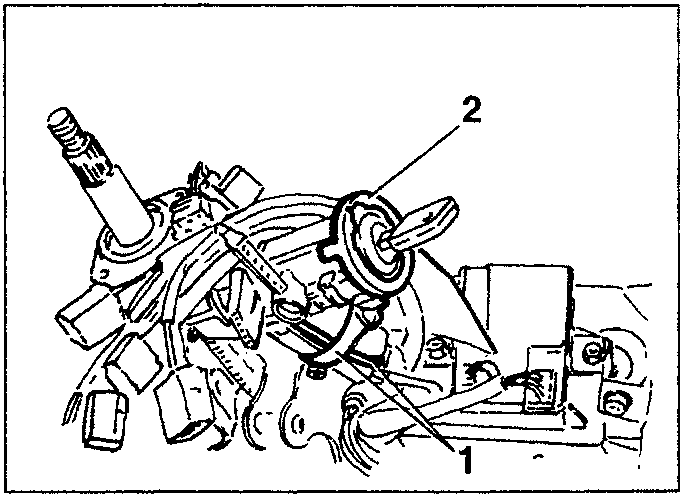

1. Remove the clamps and disconnect the ignition switch connector.
2. Withdraw the ALFA ROMEO CODE system aerial without disconnecting it.
