POWER WINDOW CONTROL UNIT (*)

REMOVAL/REFITTING

  • Disconnect the battery.
  • Remove the complete dashboard (see GROUP 70, base manual).
  1. Disconnect the electrical connections.
  2. Slacken the two screws and remove the power window control unit.

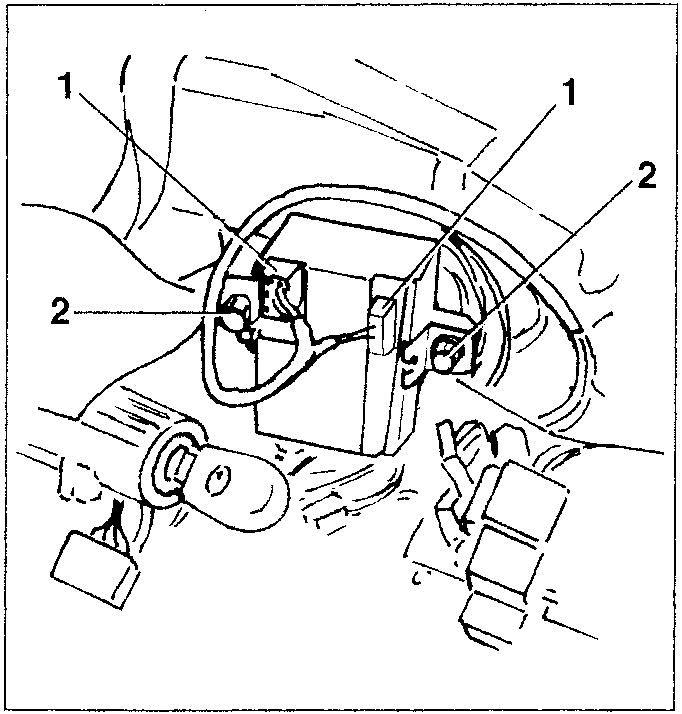

Power window control unit with two screws and electrical connections shown.

(*) From the '97 version the "integrated services" control unit has been replaced. The REMOVING/REFITTING procedure remains unchanged.

ALFA ROMEO CODE CONTROL UNIT

REMOVAL/REFITTING

Working under the dashboard, gain access to the Alfa Romeo Code control unit to be found on the left-hand side of the fusebox.

  1. Slacken the two screws and lower the Alfa Romeo Code control unit.
  2. Disconnect the electrical connections and retrieve the control unit.

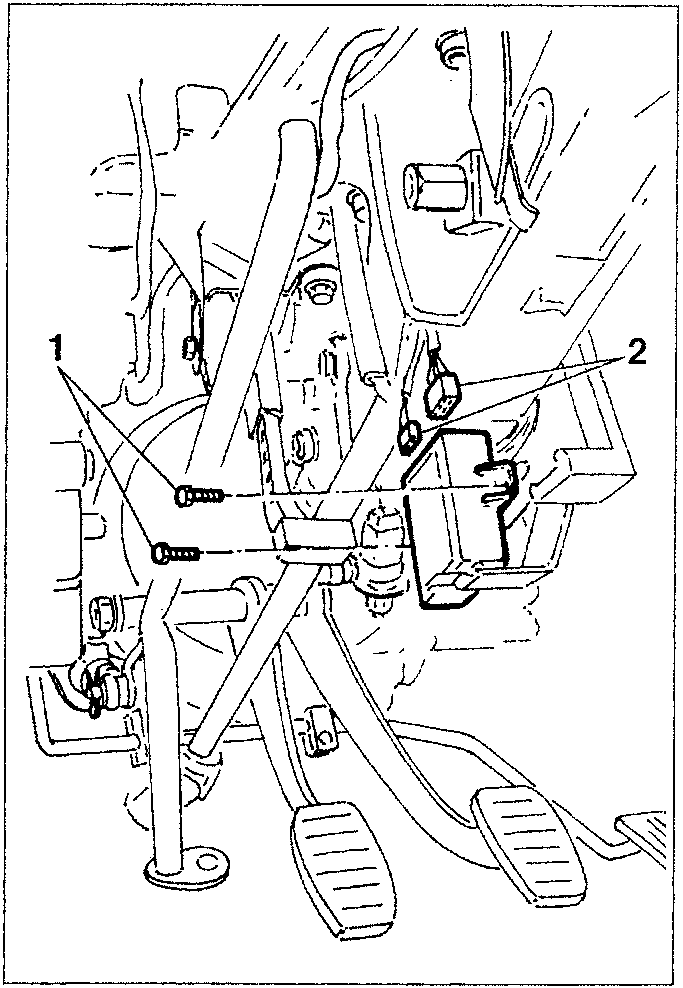

Alfa Romeo Code control unit with two screws and electrical connections shown under dashboard.
