Main panel

MAIN PANEL

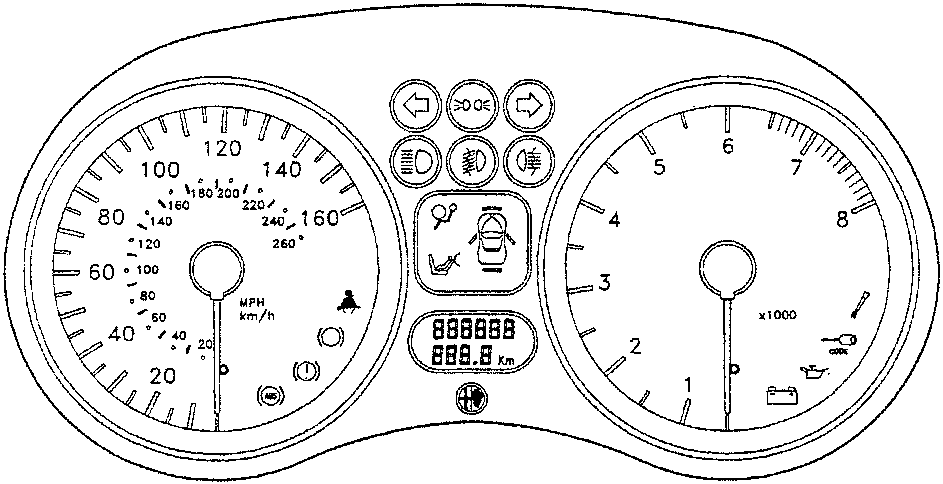

The main panel provides all the indications and information concerning the conditions of the vehicle which are indispensable for safe driving.

The cluster is of the analogue type with two generously- sized indicators for the speedometer and rev counter and a series of plainly visible warning lights which complete the information given to the driver.

• LH direction indicator
• side lights
• RH direction indicator
• high beams
• fog lamps
• rear fog guard
• Air Bag system fault
• passenger side Air Bag deactivated
• doors

• ABS system failure
• handbrake and brake fluid level, EBD system failure
• brake pad wear
• seat belts
• generator
• minimum oil pressure
• ALFA ROMEO CODE system
• injection fault (Check Engine)

NOTE: The speedometer has a double scale, miles per hour (MPH) and kilometres per hour (km/h).
