Refitting

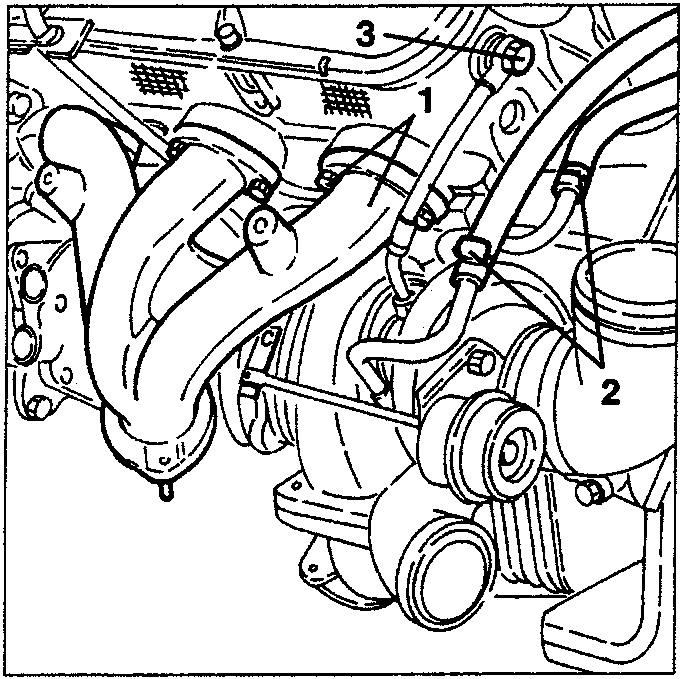

1. Slacken the fastening nuts and remove the left-hand exhaust manifold.
   - Remove the corresponding seals.
2. Disconnect the coolant fluid inlet and outlet pipes from the turbocharger.
3. Disconnect the engine oil delivery pipe to the turbocharger from the cylinder head.

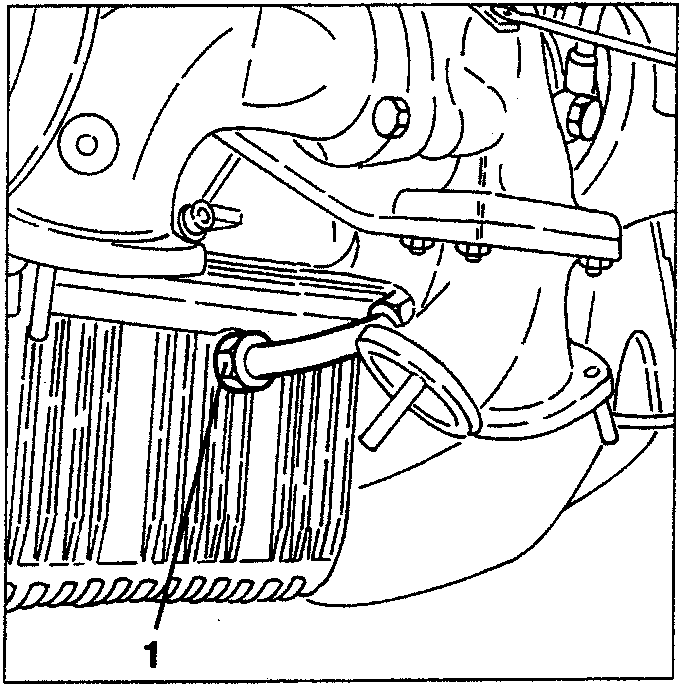

1. Disconnect the engine oil return pipe leading from the turbocharger from the sump.

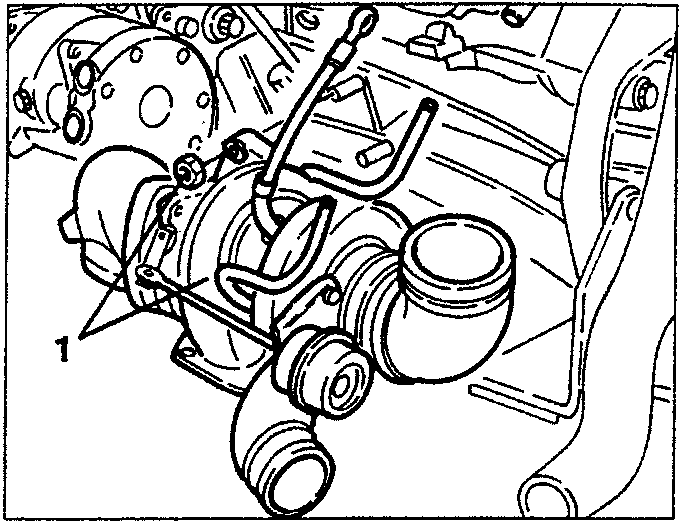

1. Slacken the fastening nuts and remove the turbocharger.

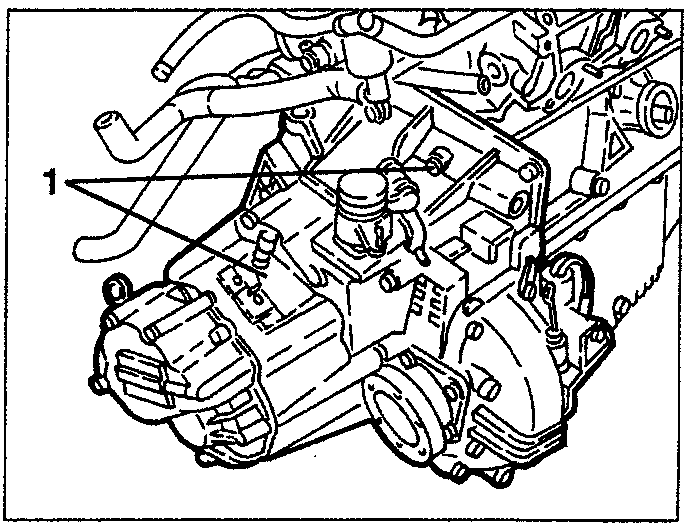

1. Slacken the screws and fastening nuts and, using a hydraulic hoist, remove the gearbox-differential unit.

REFITTING

Reverse the sequence followed for removing operations adhering to the following instructions:

• Prepare the engine compartment to receive the power unit assembly, positioning all the electrical cables, pipes, etc. so that they do not interfere with assembly operations.
• Take due care when refitting the power unit to avoid damaging the single components.

Make sure that the support points of the power unit have been fastened correctly.

• Upon completion of assembly operations, check that the belts are tensioned correctly, refill the various systems as specified (see GROUP 00).
• Carry out all the necessary checks and adjustments (see GROUP 00).
