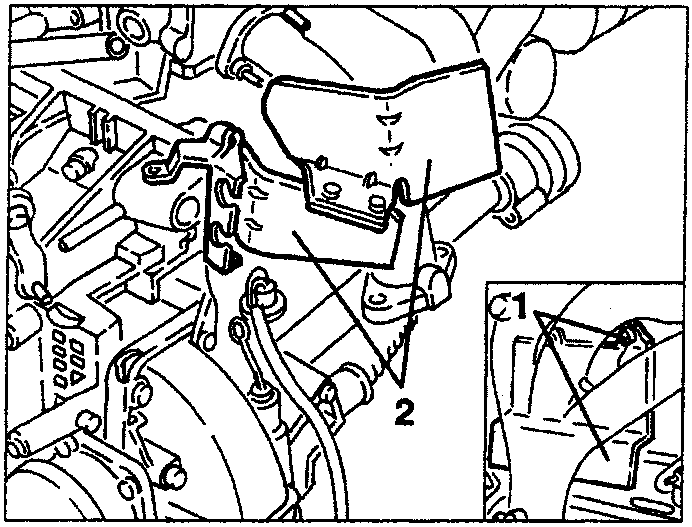

1. Slacken the two fastening nuts and remove the heat shield from the starter motor.
2. Slacken the fastening screws and remove the gearshift control cables support bracket and heat shields.

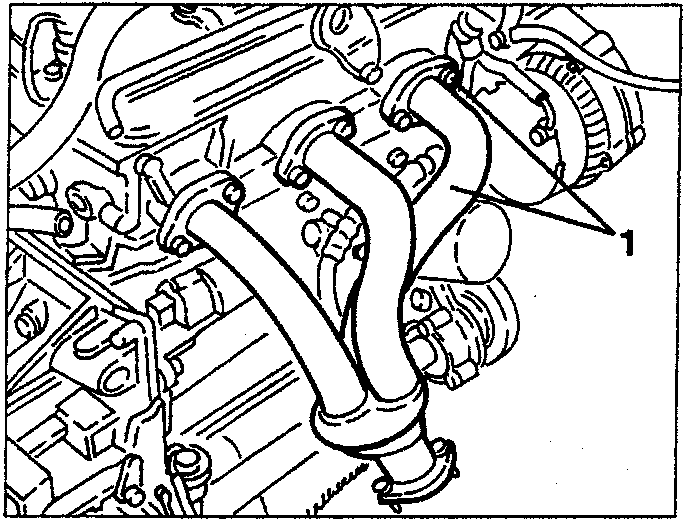

1. Slacken the fastening nuts and remove the right-hand exhaust manifold.

• Remove the corresponding seals.

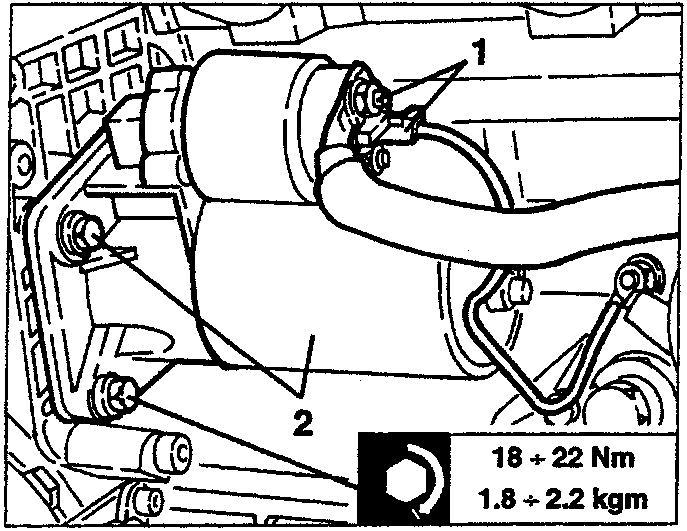

1. Disconnect the electrical connections from the starter motor.
2. Slacken the three fastening screws and remove the starter motor.

18 ÷ 22 Nm
1.8 ÷ 2.2 kgm

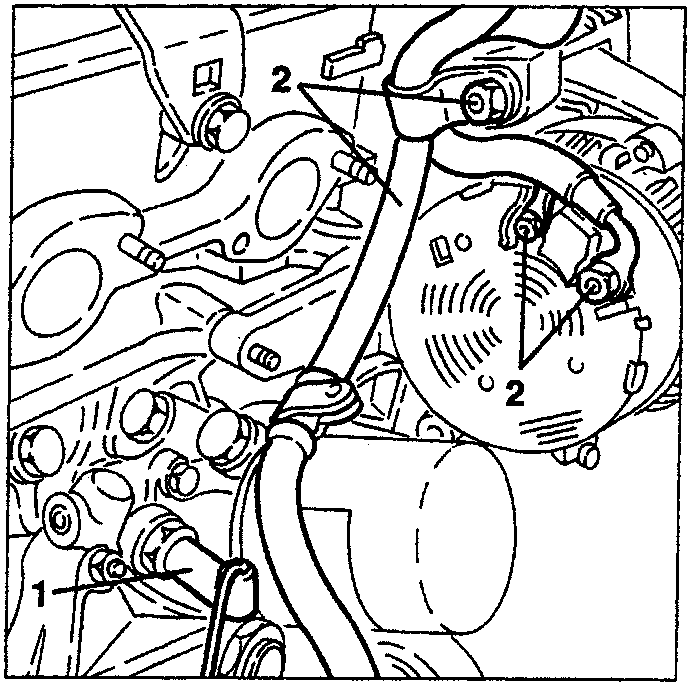

1. Disconnect the electrical connections from the engine oil minimum pressure sensor.
2. Disconnect the electrical connections from the alternator, then remove the electric wiring after freeing from the fasteners.

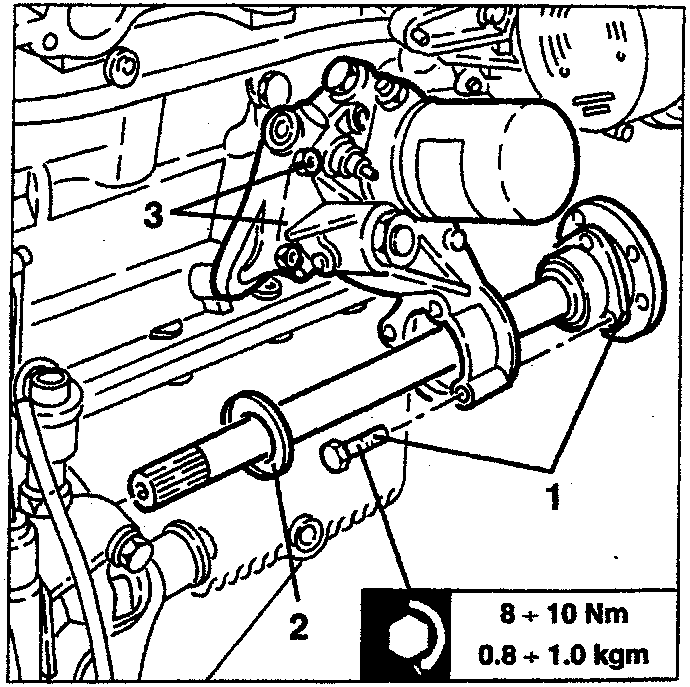

• Drain the gearbox-differential oil.

1. Slacken the three fastening screws and withdraw the intermediate shaft.
2. Remove the dust guard ring.
3. Slacken the screws and fastening nuts and remove the oil filter support complete.

8 ÷ 10 Nm
0.8 ÷ 1.0 kgm
