Description (page 8 of 10)

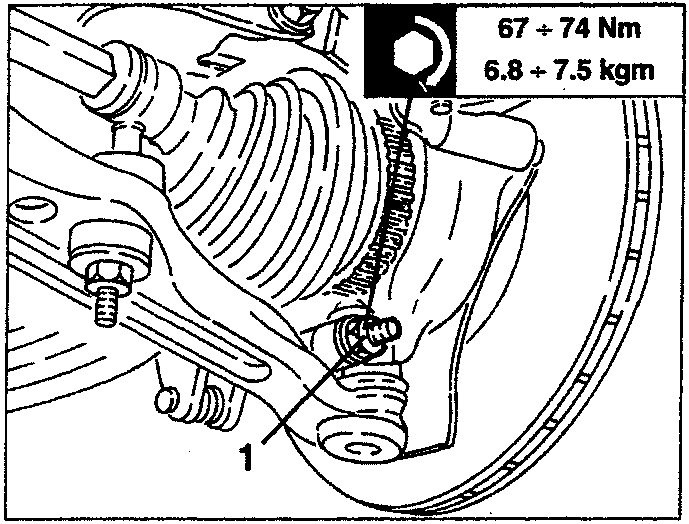

1. Slacken the bolts fastening the wishbones to the wheel uprights.

67 ÷ 74 Nm
6.8 ÷ 7.5 kgm

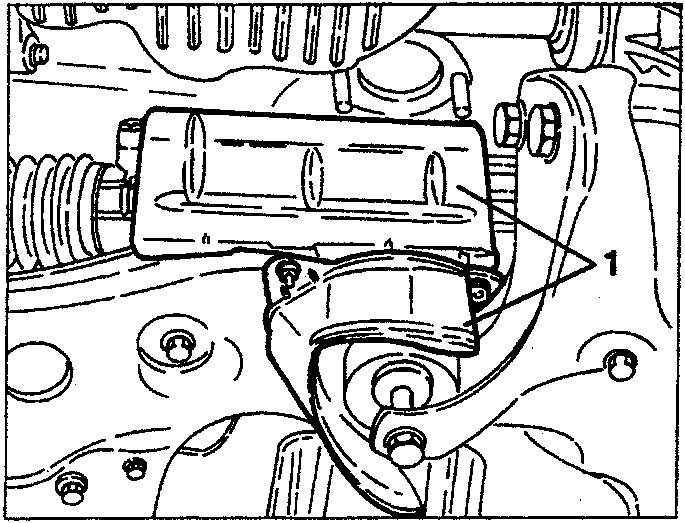

1. Slacken the fastenings and remove the two heat shields of the power steering box.

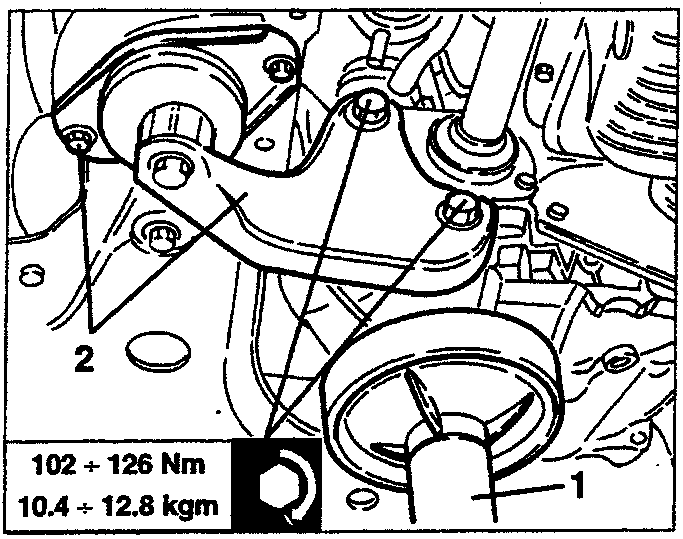

1. Position a hydraulic jack under the gearbox as illustrated.
   2. Slacken the fastening screws and remove the power unit rear support.

102 ÷ 126 Nm
10.4 ÷ 12.8 kgm

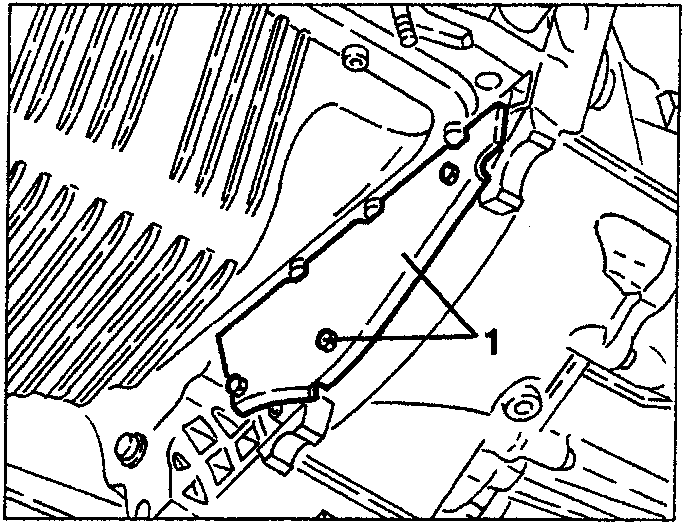

1. Slacken the fastening screws and remove the lower flywheel cover.

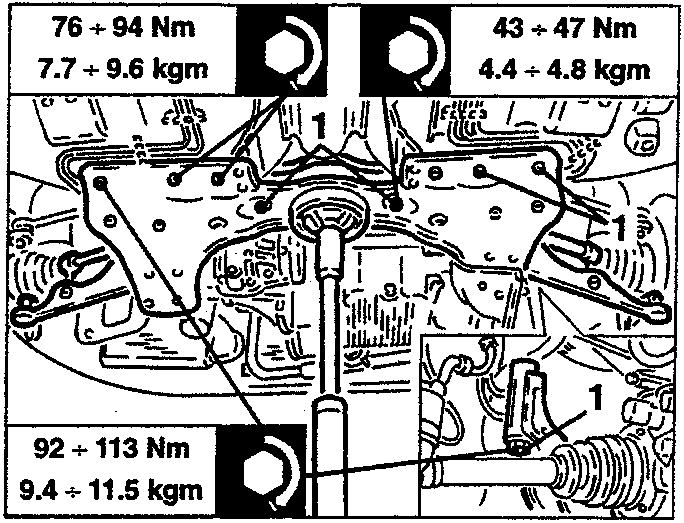

1. Slacken the fastening screws and nuts, then, using a hydraulic jack, remove it complete with wishbones and stabilizer bar.

76 ÷ 94 Nm
7.7 ÷ 9.6 kgm

43 ÷ 47 Nm
4.4 ÷ 4.8 kgm

92 ÷ 113 Nm
9.4 ÷ 11.5 kgm

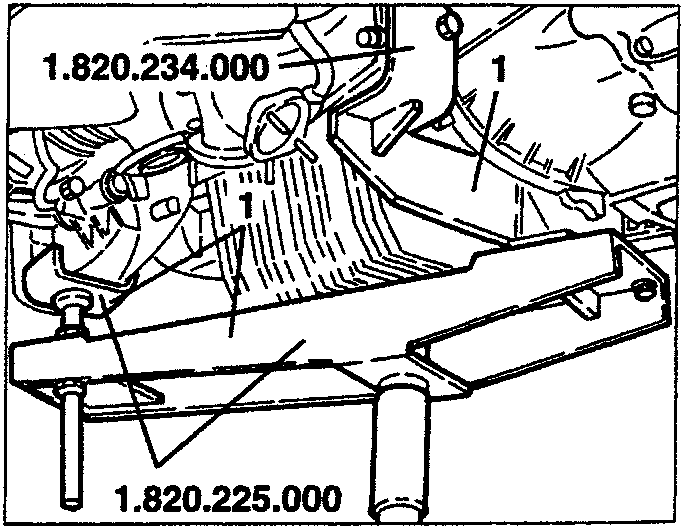

1. Position a hydraulic jack complete with tools No. 1.820.225.000 and No. 1.820.234.000 to support the power unit.
