Variants – 2.0 V6 Turbo (GTV and Spider)Description · page 3 of 10

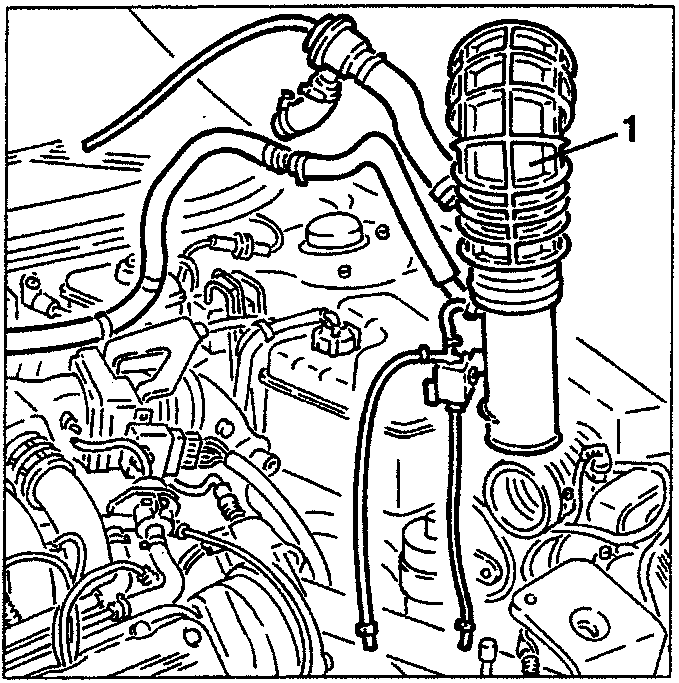

1. Disconnect the fuel vapour recirculation pipe from the corrugated sleeve.
2. Disconnect the electrical connection from the "Pierburg" solenoid valve of the supercharging control system.
3. Slacken the clamp fastening the corrugated sleeve to the turbocharger air intake elbow.
4. Disconnect the connection pipe to the "Pierburg" solenoid valve from the Waste-Gate valve control actuator.
5. Disconnect the "Pierburg" solenoid valve connection pipe from the turbocharger.

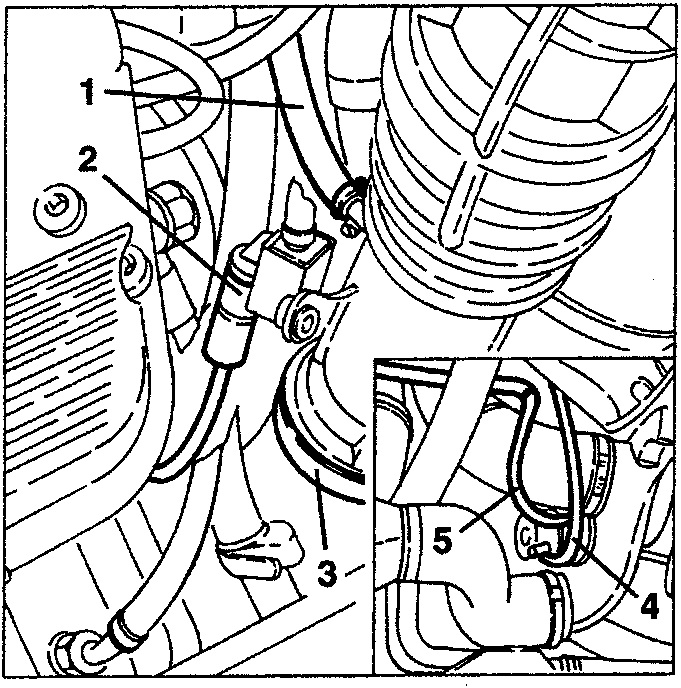

1. Disconnect the electrical connection from the throttle potentiometer.
2. Disconnect the coolant fluid delivery pipe to the radiator from the thermostatic cup.

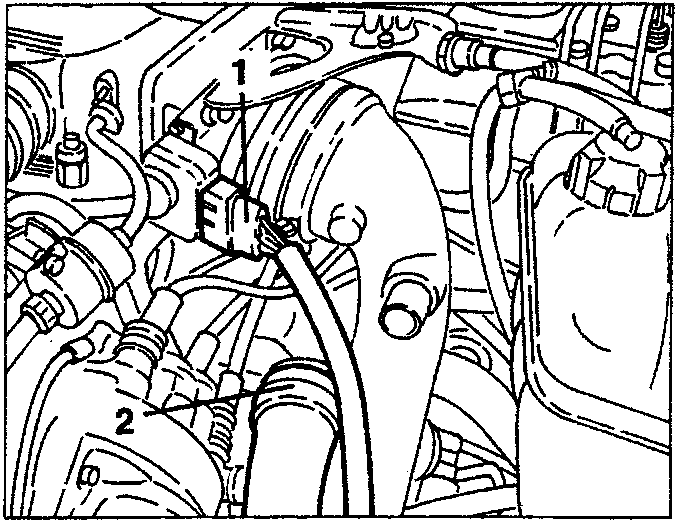

1. Disconnect the air takeoff pipe from the constant idle speed actuator.

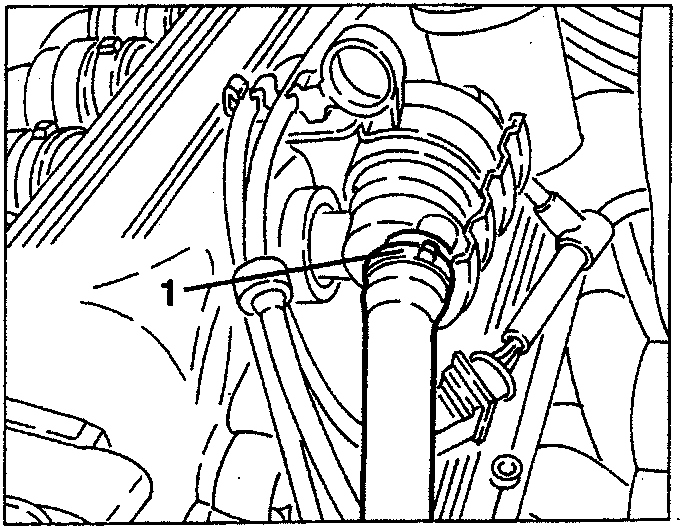

1. Disconnect the vacuum takeoff pipe for the antistalling valve from the intake box.
2. Disconnect the antistalling valve by-pass pipe from the throttle exhaust manifold.

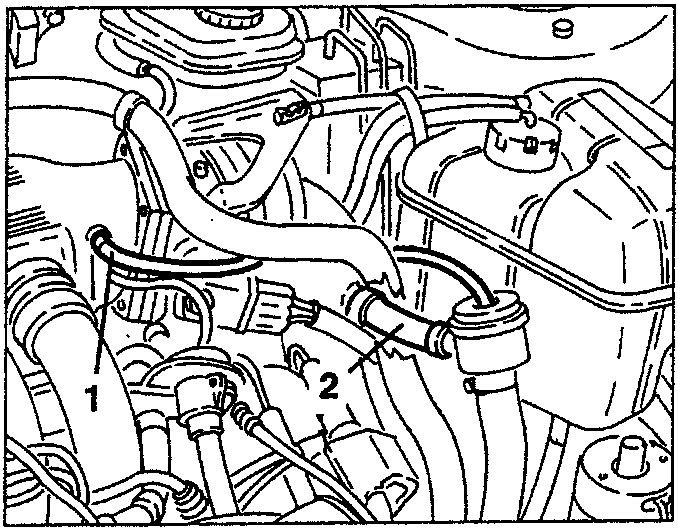

1. Remove the air intake corrugated sleeve, complete with antistalling valve, "Pierburg" solenoid valve and their connection pipes.
