Description (page 5 of 10)

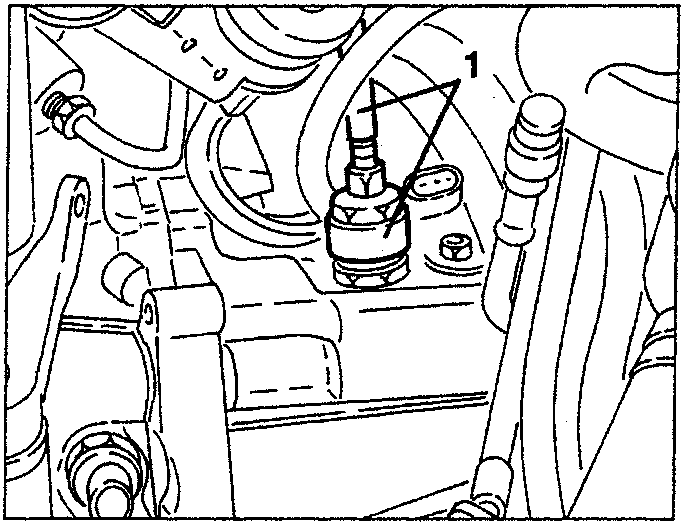

1. Disconnect the cable for synchronized reverse gear engagement.

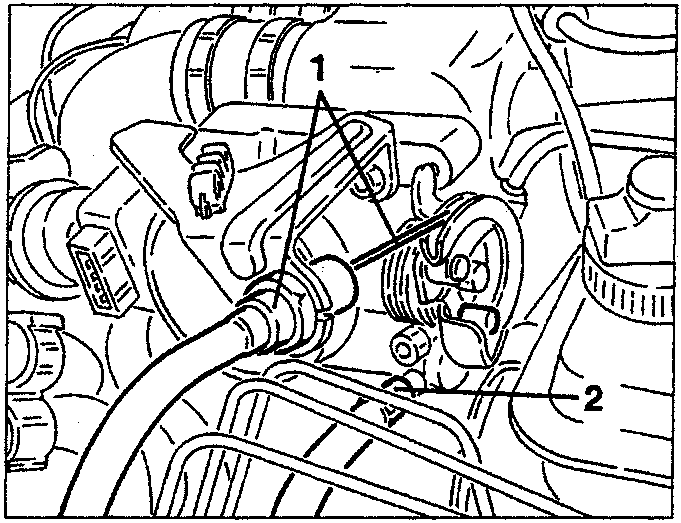

1. Disconnect the accelerator cable from the throttle.
   2. Disconnect the header tank coolant delivery and system air relief pipe from the throttle body.

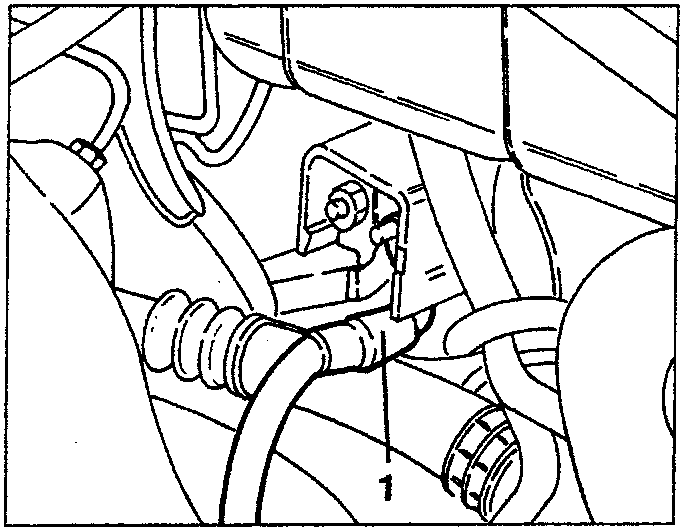

1. Disconnect the starter motor supply cable from the branch terminal box located under the header tank.

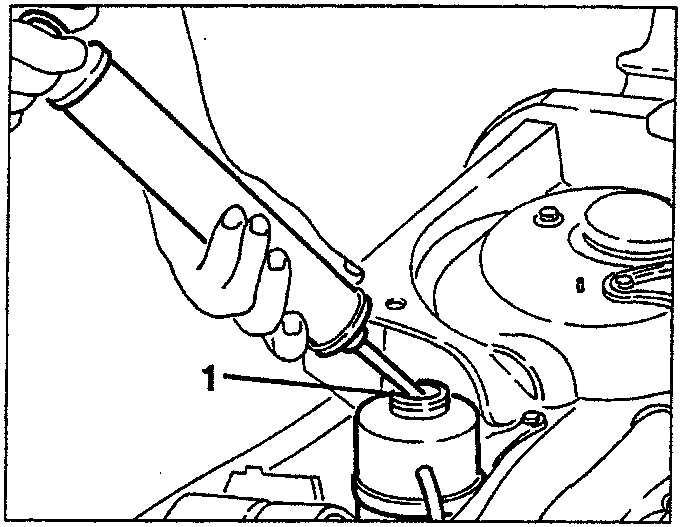

1. Using a suitable syringe empty the power steering tank.

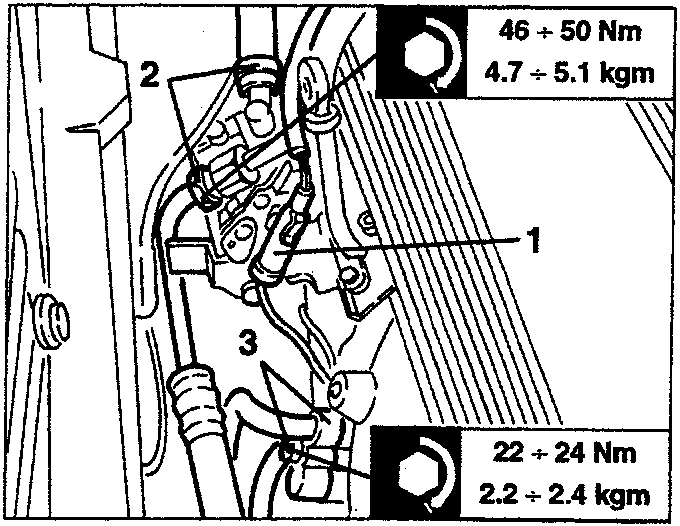

1. Disconnect the conditioner compressor electromagnetic joint supply connection.
   2. Disconnect the two oil inlet and delivery pipes from the power steering pump.
   3. Slacken the fastening screw and disconnect the coolant inlet and delivery pipes from the conditioner compressor.

46 ÷ 50 Nm
4.7 ÷ 5.1 kgm

22 ÷ 24 Nm
2.2 ÷ 2.4 kgm

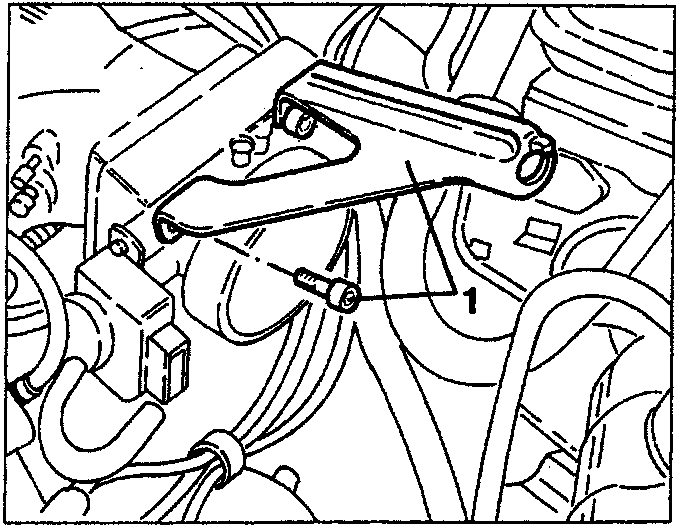

1. Slacken the fastening screws and remove the accelerator cable support bracket from the throttle body.
