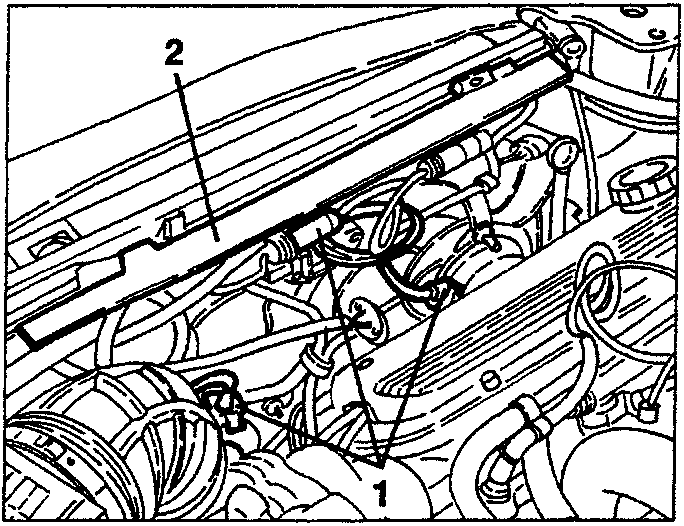

1. Disconnect the electrical connections from the cooling fans.
2. Slacken the fastening screws, then move aside the cable fairing complete with electric cables.

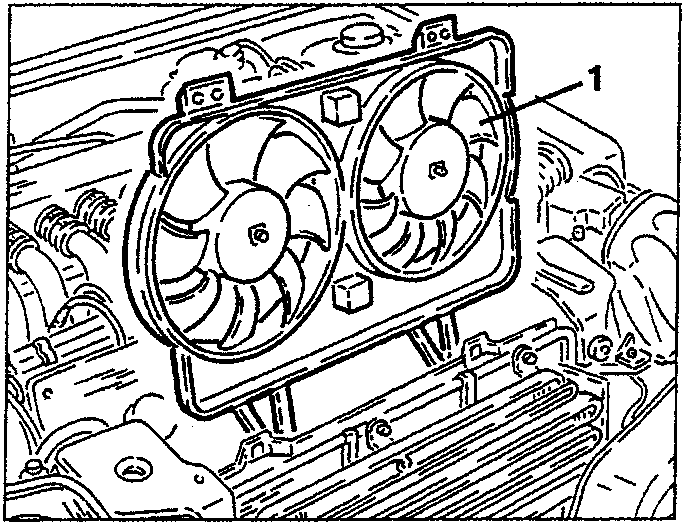

1. Withdraw and remove the cooling fans.

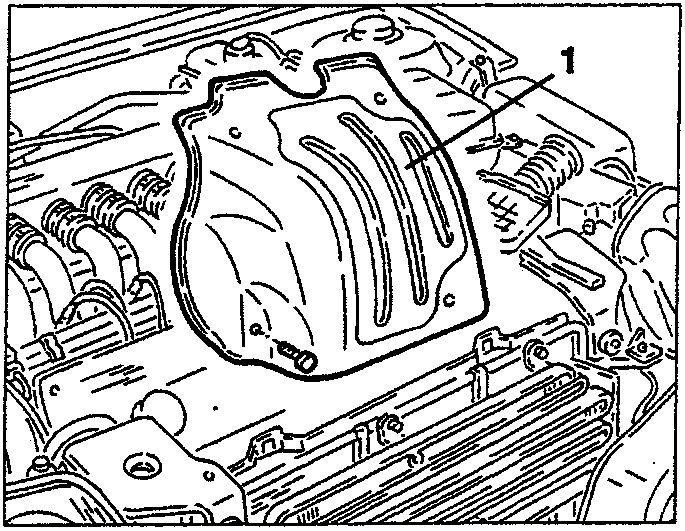

1. Slacken the fastening screws and remove the heat shield from the exhaust manifolds.

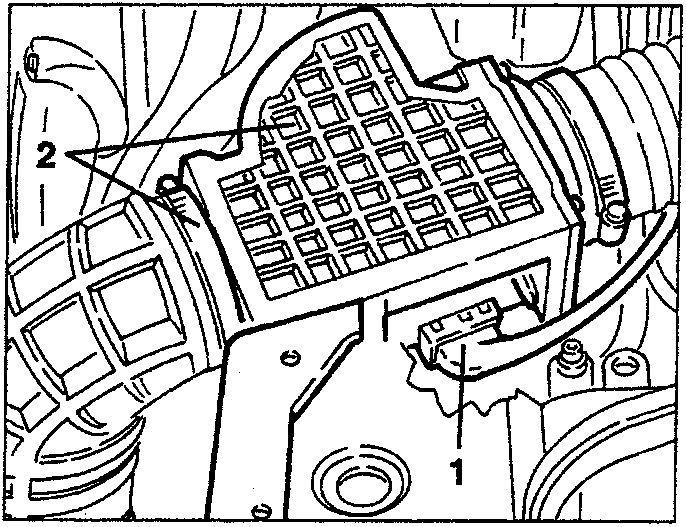

1. Disconnect the electrical connection from the air flow meter.
2. Slacken the two clamps fastening to the corrugated sleeve, then remove the air-flow meter complete with support bracket.

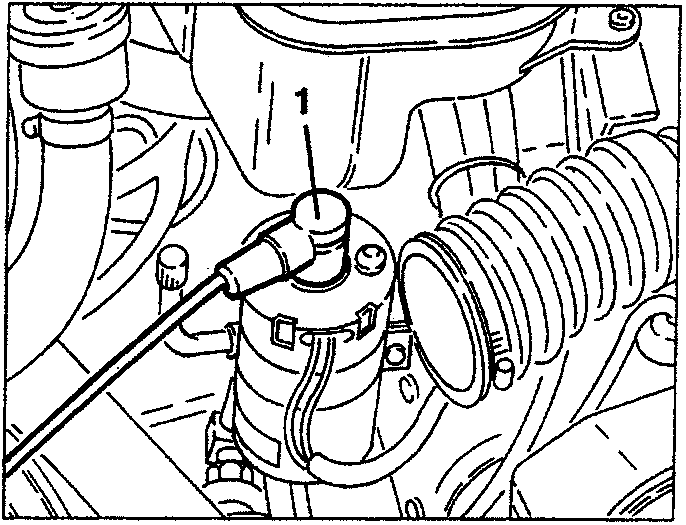

1. Disconnect the high voltage cable from the ignition coil.

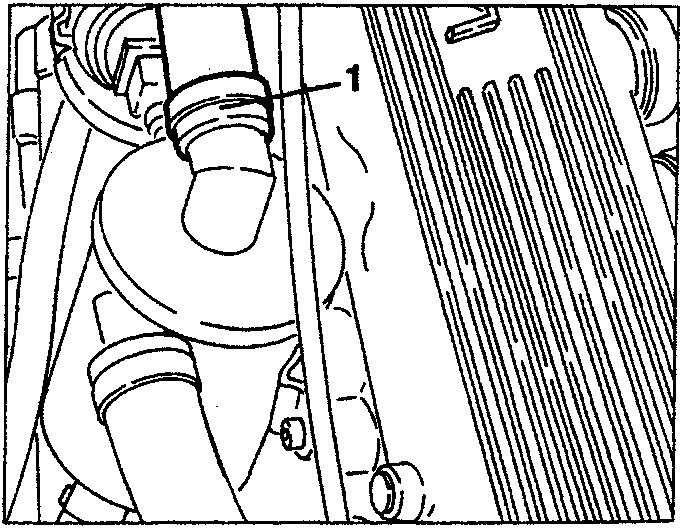

1. Disconnect the oil vapour recirculation pipe from the oil vapour separator.
