Description (page 9 of 10)

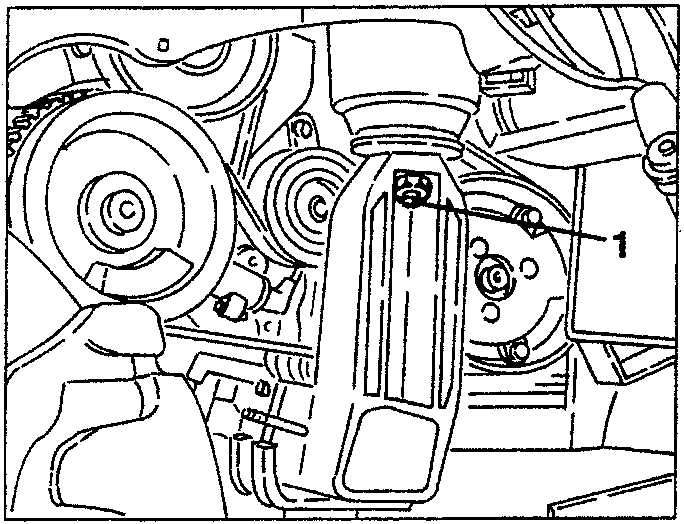

1. Slacken the bolt fastening the power unit support on the camshaft side.

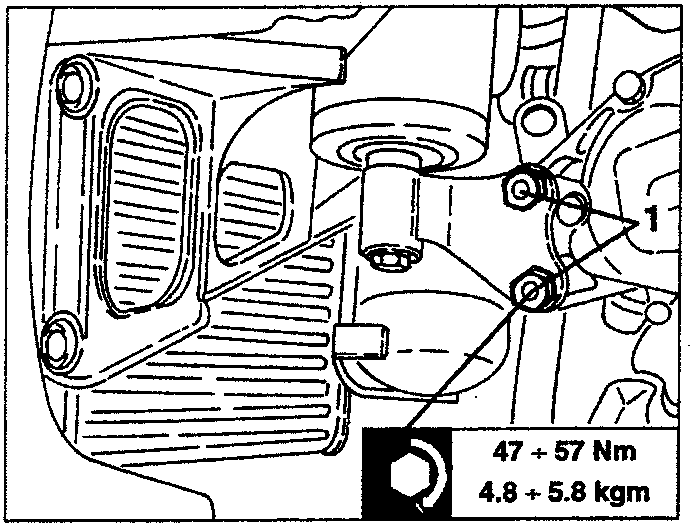

1. Slacken the fastening screws of the power unit support on the gearbox side.

47 ÷ 57 Nm
4.8 ÷ 5.8 kgm

• Remove the power unit support crossrail No. 1.820.581.000 (R.4.0194) complete with supports No. 1.820.239.000, installed previously.

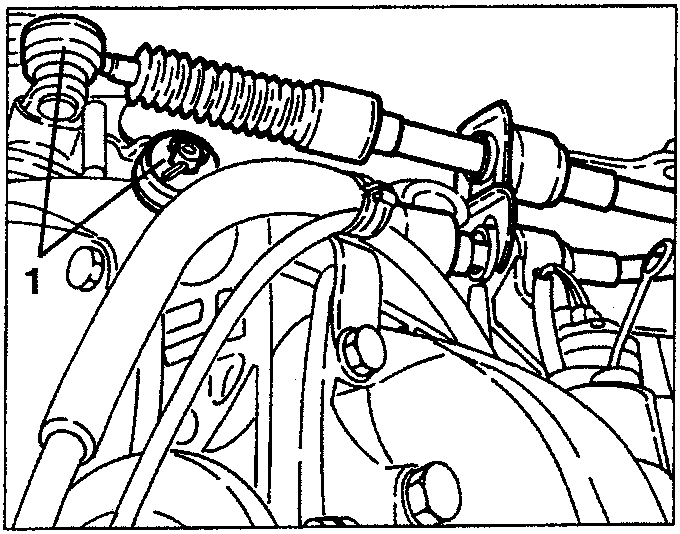

1. Lower the power unit just enough to disconnect the gear control cables.

WARNING: The hydraulic jack must have a capacity of at least 1000 kg. Free the electrical wires from any cable clamps and move them away from the engine to prevent them from getting caught in the engine when it is removed.

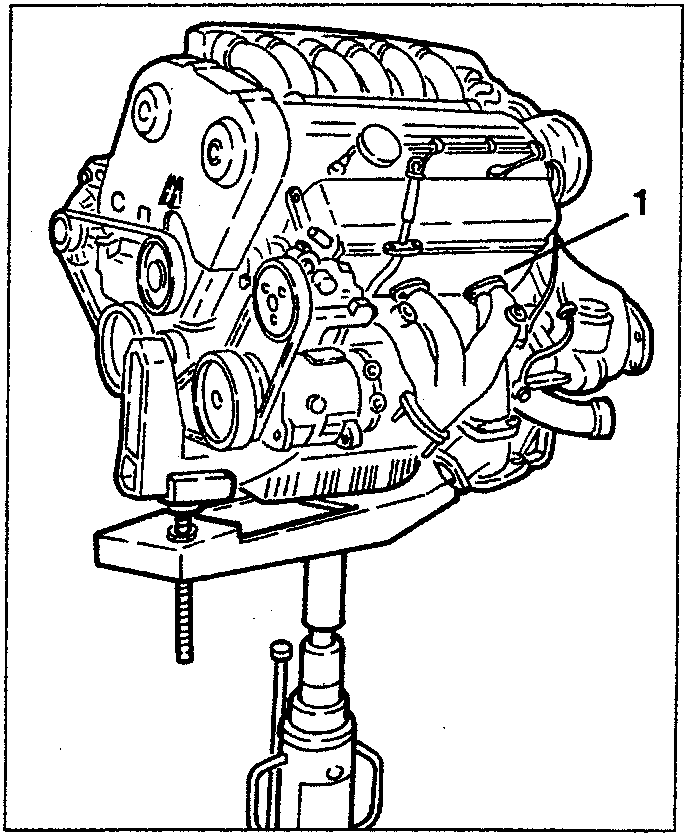

1. Lower the hydraulic jack completely and remove the power unit from the engine compartment.

WARNING: When lowering the car make sure that there are no cables or pipes still connected. Take due care not to damage any components.

• Support the power unit with a hydraulic hoist as well as with the hydraulic jack used for removal.

WARNING: For moving the power unit, use a hydraulic hoist after freeing it from the hydraulic jack.
