Description (page 7 of 10)

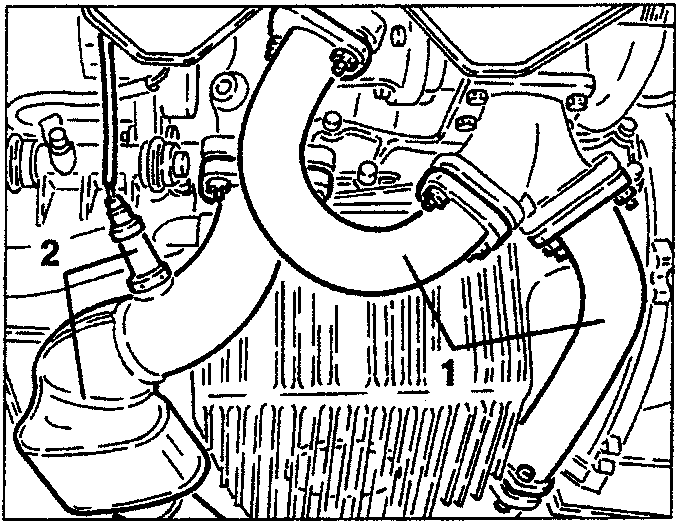

1. Raise the car, slacken the fastenings and remove the exhaust gas delivery pipes from the cylinder heads to the turbocharger.
2. Slacken the fastenings and remove the front section of the exhaust pipe complete with lambda sensor.

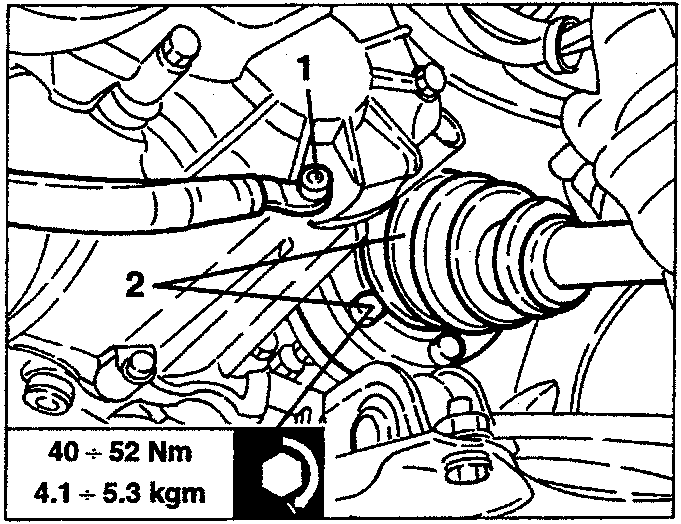

1. Disconnect the earth braid from the rear gearbox cover.
2. Slacken the fastening bolts and disconnect the axle shafts.

40 ÷ 52 Nm
4.1 ÷ 5.3 kgm

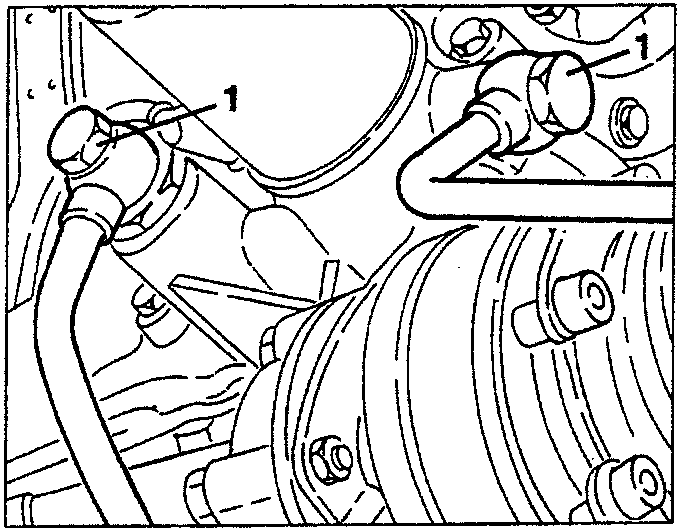

1. Disconnect the two oil delivery and return pipes to the cooling radiator from the oil filter support.

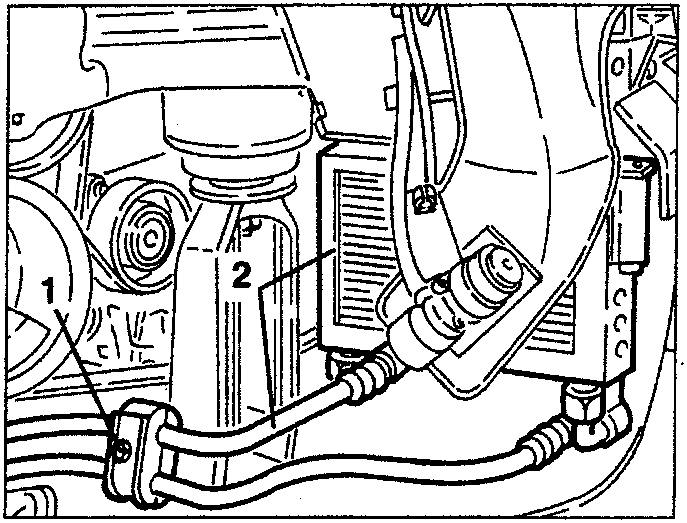

1. Slacken the intermediate clamps supporting the oil delivery and return pipes to the cooling radiator.
2. Slacken the fastening screws and remove the engine oil cooling radiator complete with the pipes.

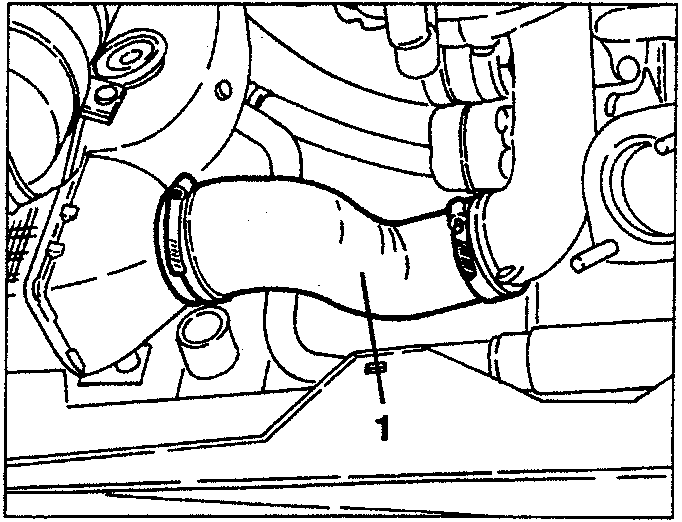

1. Slacken the fastening clamps and remove the air delivery pipe from the turbocharger to the intercooler.

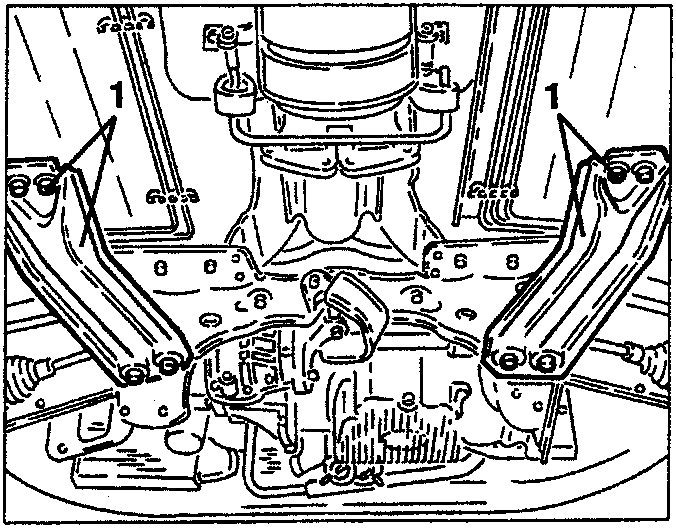

1. Slacken the fastening screws and remove the two reinforcements from the suspension crossmember.
