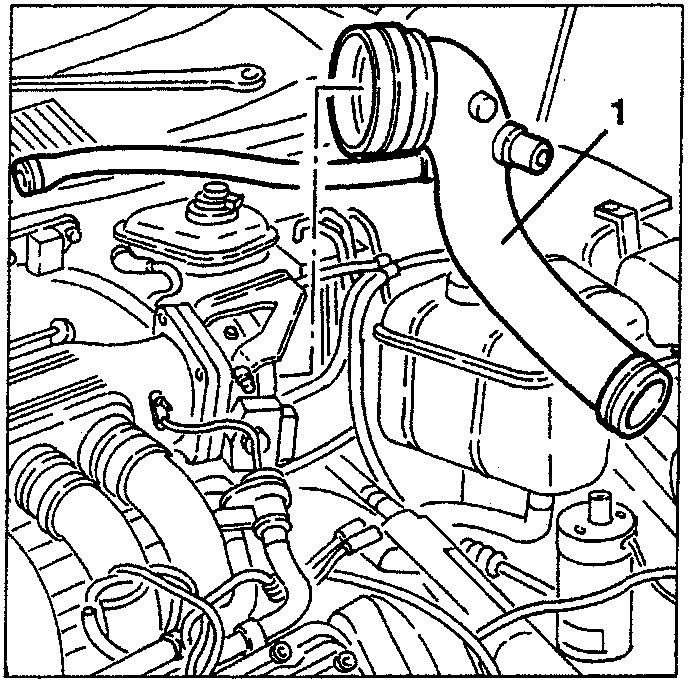

1. Slacken the two fastening clamps and remove the throttle intake manifold.

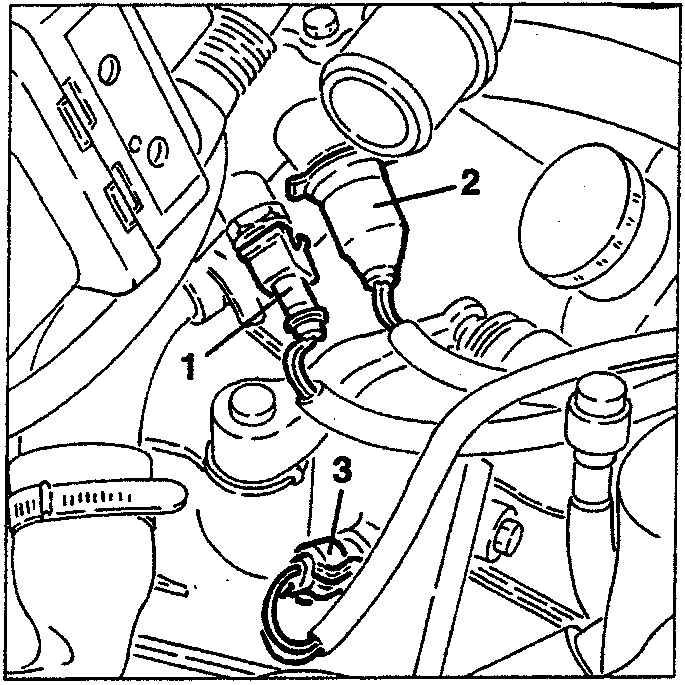

1. Disconnect the electrical connection from the engine coolant temperature sensor (NTC).
2. Disconnect the electrical connection from the engine coolant temperature gauge sender and maximum temperature warning light contact.
3. Disconnect the electrical connection from the reversing switch.

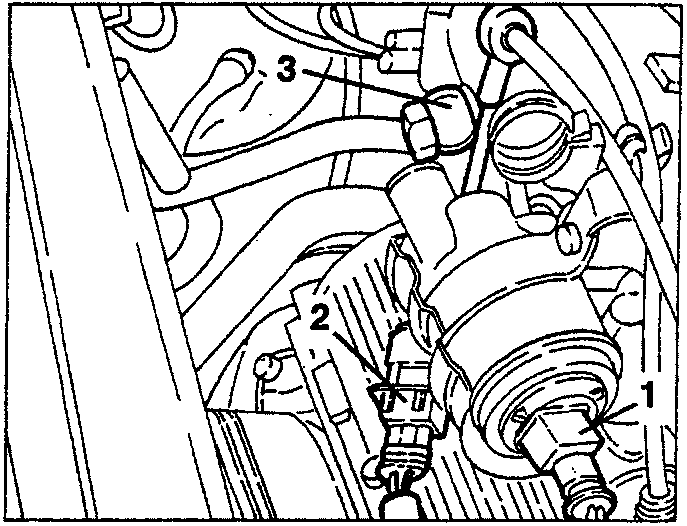

1. Disconnect the electrical connection from the constant idle speed actuator.
2. Disconnect the electrical connection of the 1st cylinder detection sensor.
3. Disconnect the servobrake vacuum takeoff pipe from the intake box.

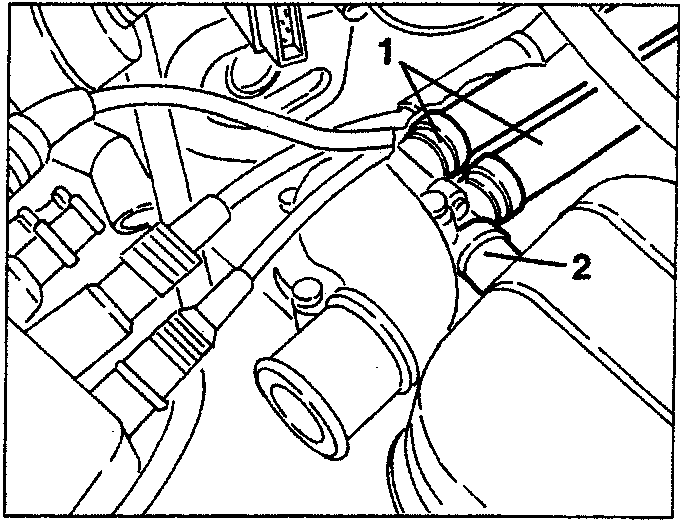

1. Disconnect the coolant delivery and return pipes to the climate control system heater from the thermostatic cup.
2. Disconnect the delivery sleeve leading from the header tank from the thermostatic cup.

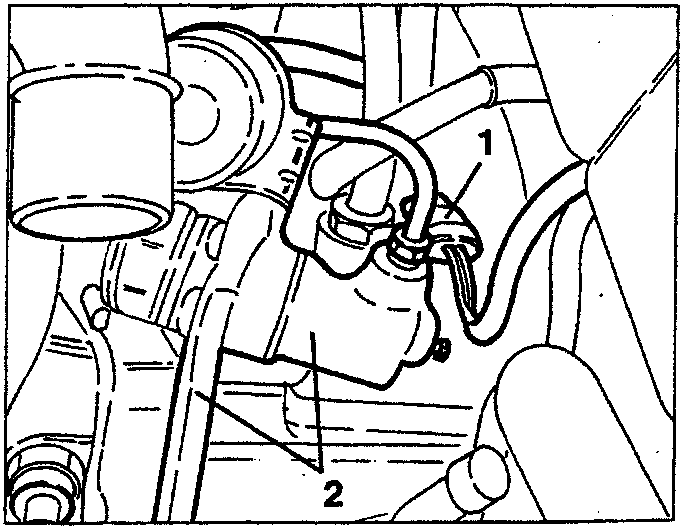

1. Disconnect the electrical connection of the tachometric sensor.
2. Slacken the three screws fastening the clutch control cylinder support bracket, then move all aside without disconnecting the pipes.
