Identification data plate

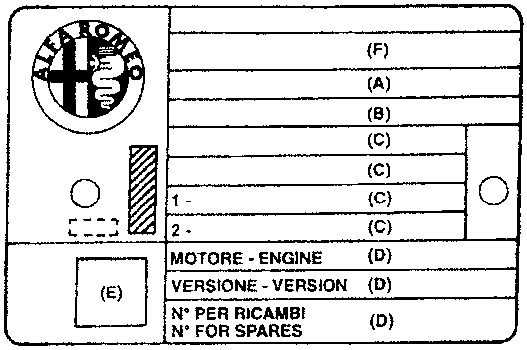

IDENTIFICATION DATA PLATE

The plate is applied in the engine compartment on the upper left-hand shock absorber bracket. It contains the following data:

• A. National homologation
• B. Chassis number punch mark
• C. Maximum authorised weights prescribed by national laws, where relevant
• D. Version identification (e.g. 916C2A) Version identification
• E. Smokiness
• F. Manufacturer's name punch mark

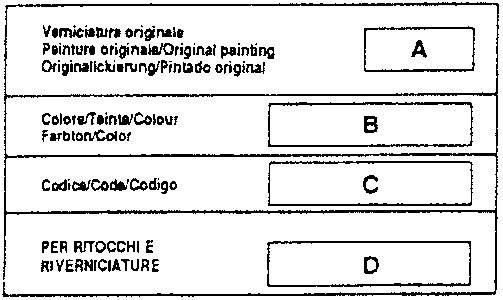

PAINTWORK IDENTIFICATION PLATE

This plate is applied on the inside of the boot and contains the following data:

• A. Paint manufacturer
• B. Colour name
• C. Colour code
• D. Touch-up and re-spray code

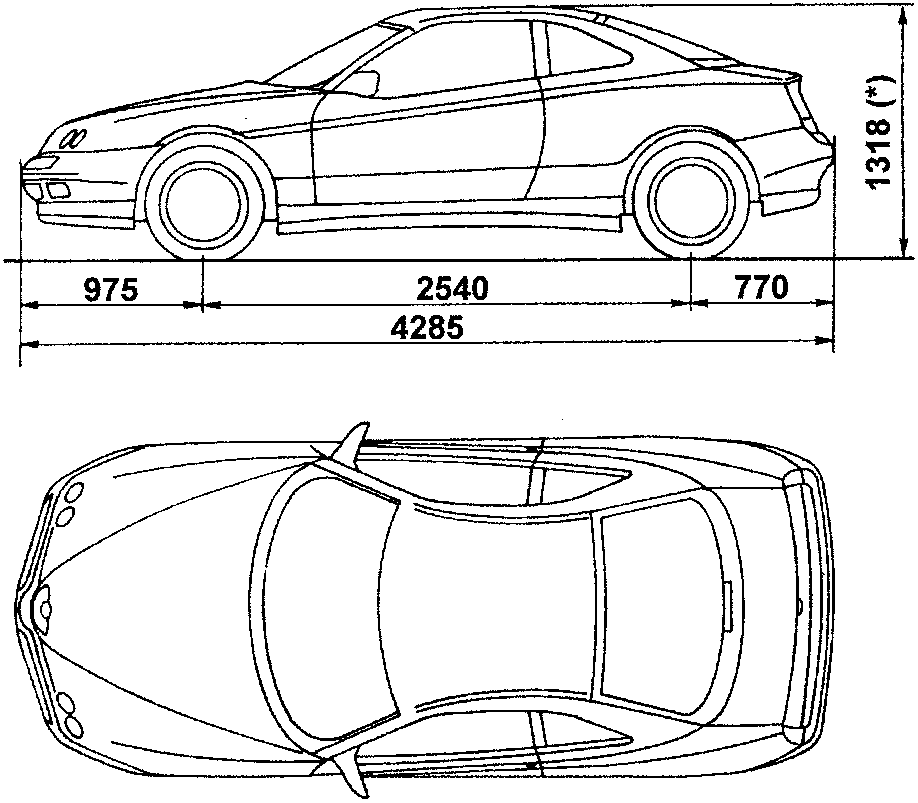

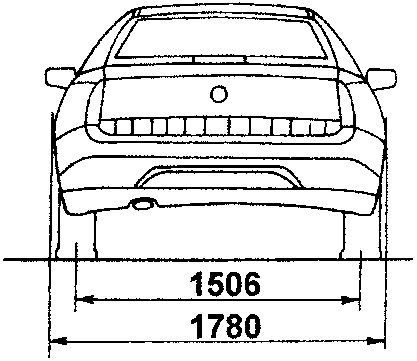

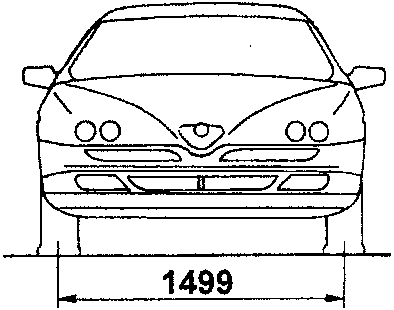

DIMENSIONS

(*): Unladen vehicle
