Air cleaner box

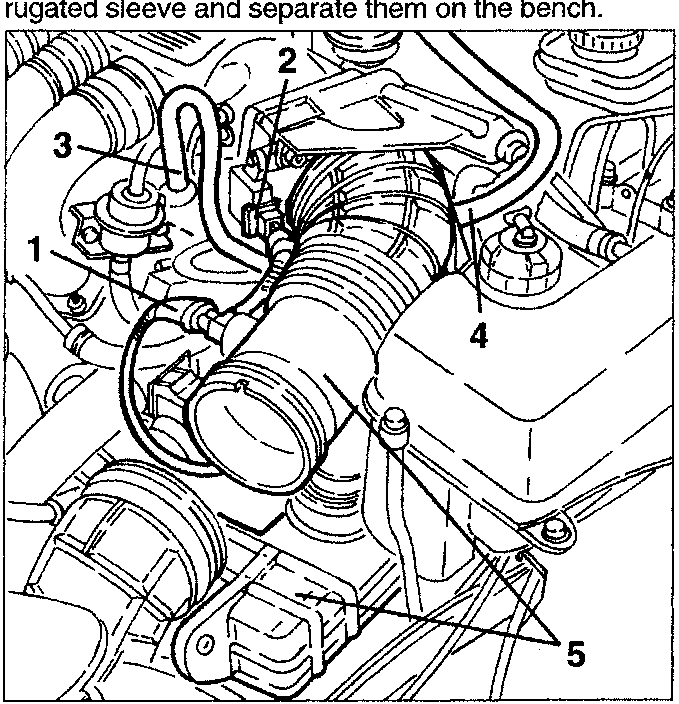

1. Disconnect the electrical connection from the intake air temperature sensor.
2. Disconnect the electrical connection from the throttle potentiometer.
3. Disconnect the oil vapour recovery pipe leading from the right cylinder head from the corrugated sleeve.
4. Disconnect the air takeoff pipe for the constant idle speed device from the corrugated sleeve.
5. Slacken the clamp fastening to the throttle body, then remove the intermediate resounder complete with corrugated sleeve and separate them on the bench.

AIR CLEANER BOX

REMOVING/REFITTING

• Remove the air cleaner cartridge (see specific paragraph).

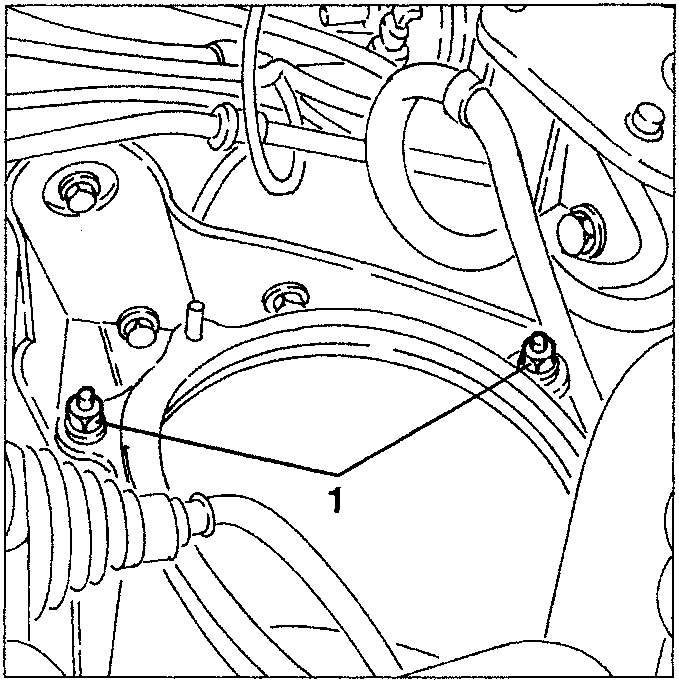

1. Slacken the two nuts fastening the air cleaner box.

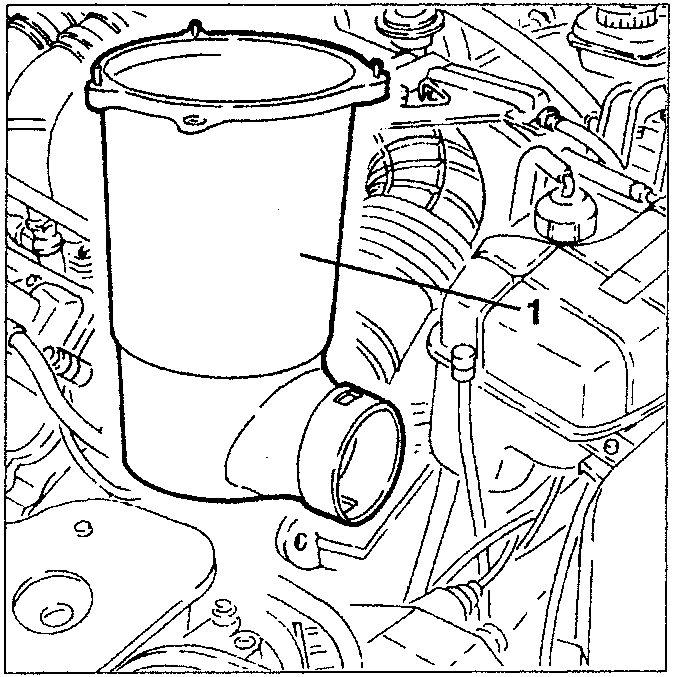

1. Remove the the air cleaner box releasing it from the lower resounder.

LOWER RESOUNDER

REMOVING/REFITTING

• Remove the front bumper (see GROUP 70).

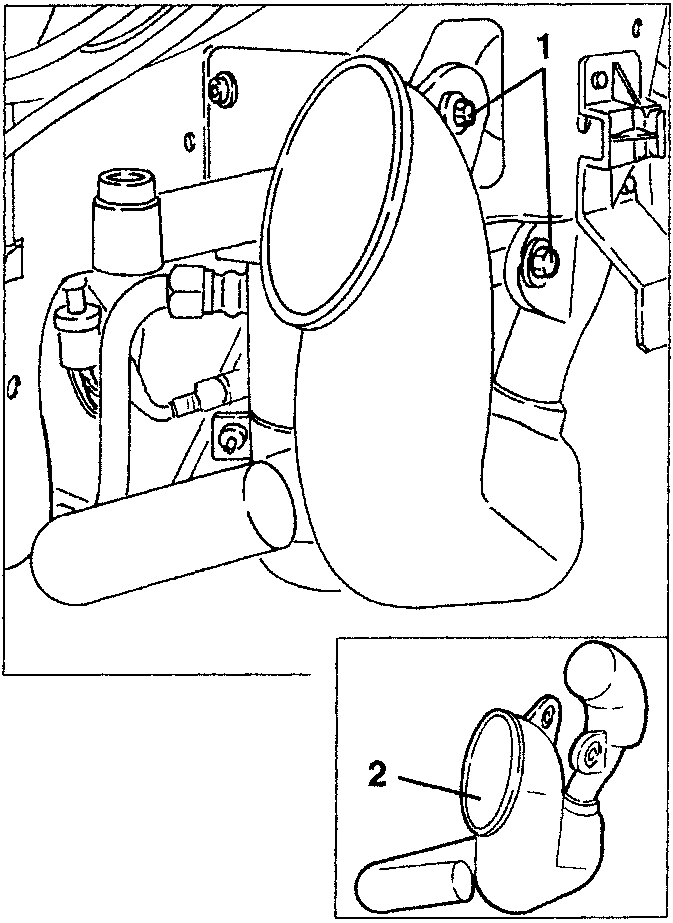

1. Slacken the two screws fastening the lower resounder.
2. Remove the lower resounder releasing it from the air cleaner box.
