Variants – 3.0 V6 24VRemoving/refitting

REMOVING/REFITTING

  • Remove the gearbox-differential unit (see GROUP 21).
  • When changing only the clutch plate, mark the position between the pressure plate and flywheel to facilitate refitting operations.
  1. Slacken the screws fastening the pressure plate to the flywheel.
  2. Remove the pressure plate.
  3. Remove the clutch plate.

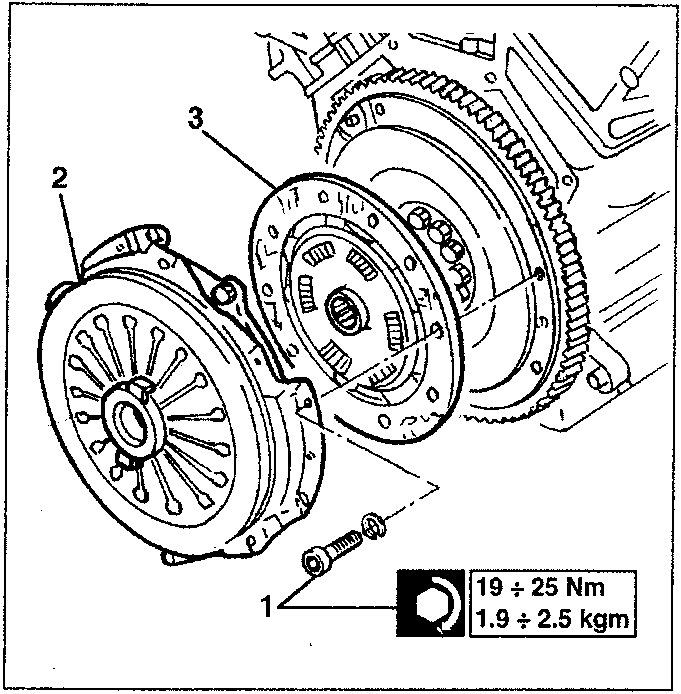

Clutch assembly with numbered parts: 1. thrust bearing, 2. pressure plate, 3. clutch plate. Tool 1.821.215.000 shown for removal. Torque specification 19 ÷ 25 Nm / 1.9 ÷ 2.5 kgm indicated in box.

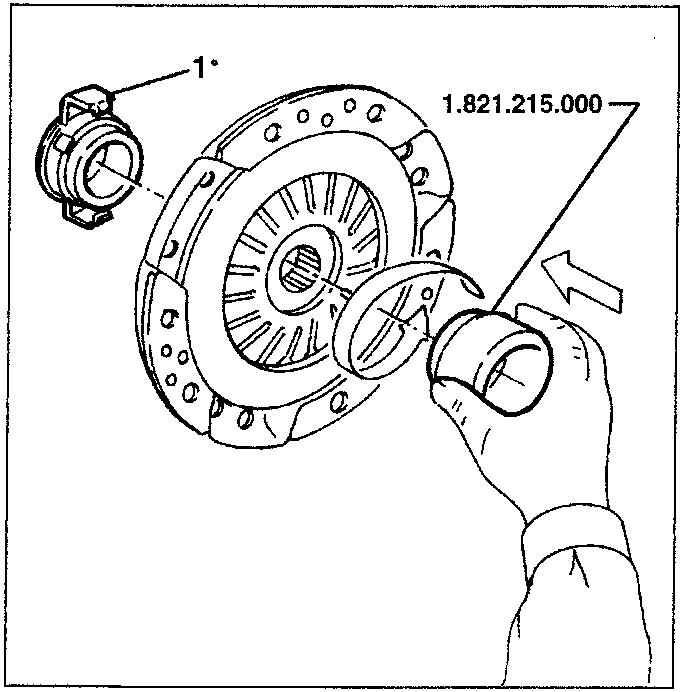

1. Using tool 1.821.215.000 remove the thrust bearing from the diaphragm spring.

19 ÷ 25 Nm
1.9 ÷ 2.5 kgm

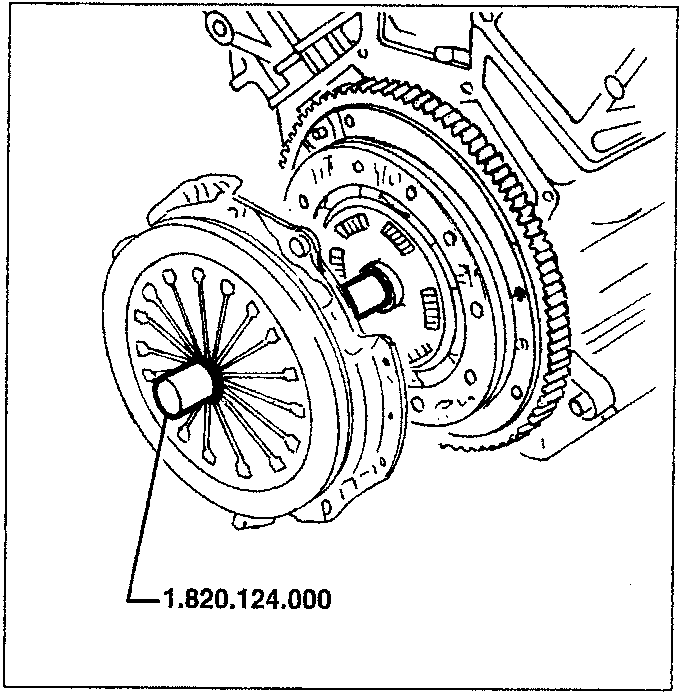

When refitting use tool 1.820.124.000 to centre the clutch plate correctly.

Clutch plate with tool 1.820.124.000 shown inserted into its central bore for centring.

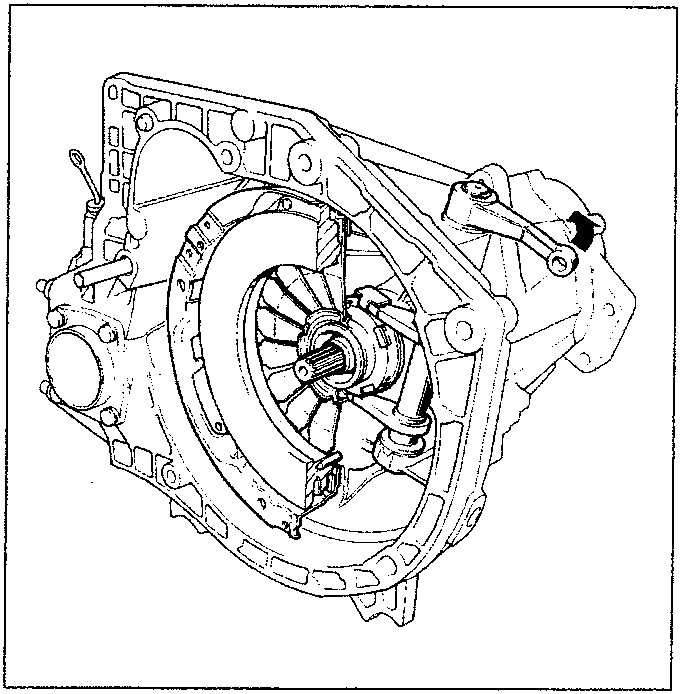

After refitting the gearbox to the crankcase, move the control lever in the direction of the arrow to position the thrust bearing in its housing.

Gearbox with control lever shown being moved in direction of arrow to position thrust bearing.
Hand using tool 1.821.215.000 to remove thrust bearing from clutch plate.
