Checks and inspections

CHECKS AND INSPECTIONS

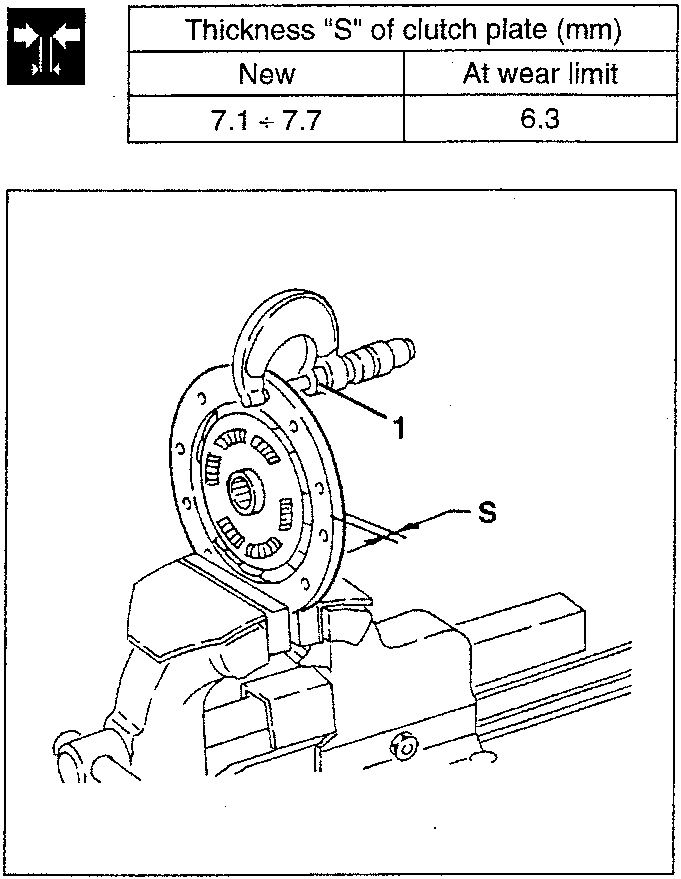

1. Check the gaskets for even wear and that the thickness of the clutch plate is no lower than the minimum specified.

• Check that there are no signs of burning or vitrification, that fastening is correct and that the springs are intact.
• Check that the clutch plate hub is intact, runs smoothly and that there is no excessive play on the drive shaft.
• Check the working surfaces of the flywheel and pressure plate for signs of overheating, uneven wear, nicks or missing parts.
• Check the thrust bearing for noise, excessive play and that it runs smoothly on the sleeve.
• Check the fork for cracks, distortion, freedom of movement and excessive wear of the working surfaces.
